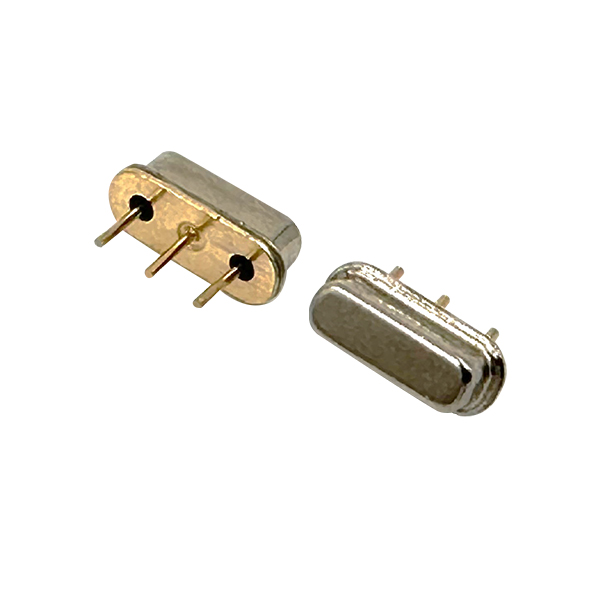

YQDD11R

SAW Resonators | D11 Compact Metal Package

Core Advantages

• Hermetic Metal Package: High hermeticity isolates moisture and impurities, anti-aging and long lifespan; metal housing shields EMI interference, ensuring strong radio frequency stability.
• Wide Temperature and High Reliability: Supports -40°C to +125°C wide temperature range, excellent temperature coefficient, minimal frequency drift, suitable for industrial and automotive extreme environments.
• Strong Electrical Performance: High Q value, low ESR, frequency accuracy up to ±5ppm, pure local oscillator signal, strong anti-interference ability.
• Heat Dissipation and Mechanical Properties: Metal base has good heat dissipation, anti-vibration and anti-shock, suitable for industrial and vehicle vibration conditions.
• Wide Compatibility: Standard plug-in pins, suitable for traditional PCB through-hole technology, no need to modify the board, compatible with most radio frequency transmitting circuits.

Product Introduction

D11 SAW Resonator is a small flat metal hermetic package three-pin plug-in frequency device, mainly for 315MHz/433.92MHz/868MHz and other general ISM frequency bands. It adopts through-hole pin design, compact structure, easy installation, and can be directly compatible with traditional plug-in circuit design.

With the advantages of high hermeticity and electromagnetic shielding of metal package, it has the core characteristics of high Q value, low ESR, wide temperature resistance and strong anti-interference. The frequency accuracy can generally reach ±10~±30ppm, the high-precision grade is ≤±5ppm, and the operating temperature covers -40°C~+85°C (automotive grade can reach -40°C~+125°C). It can effectively isolate moisture, impurities and electromagnetic interference, ensuring long-term frequency stability and reliability.

The product is widely used in industrial Internet of Things, automotive electronics, security smart home, high-end radio frequency and other scenarios, and can meet the diversified needs of harsh working conditions, high-precision frequency stabilization and strong anti-interference. It is a highly reliable plug-in frequency source device with both performance and compatibility.

Alternative Products and Reasons

Replacement Reason: Mainstream manufacturers at home and abroad basically do not mass-produce products with this package for plug-in series, only some domestic brand manufacturers are making products with this package.

Key Features

• Package Form: Metal hermetic package, standard plug-in through-hole pins, high mechanical strength, anti-vibration and anti-shock.
• Operating Frequency Band: Mainly 315MHz / 433.92MHz / 868MHz / 915MHz and other ISM frequency bands.
• Frequency Accuracy: Conventional ±10ppm～±30ppm, high-precision grade can reach within ±5ppm.
• Quality Factor: High Q value, good frequency selectivity, low phase noise, stable oscillation.
• Temperature Characteristics: Wide temperature operation, typically -40°C～+85°C, automotive grade can reach -40°C～+125°C.
• Anti-Interference: Metal shell has electromagnetic shielding, strong anti-EMI/EMC ability.
• Environmental Reliability: Hermetic structure is moisture-proof, dust-proof and corrosion-proof, suitable for harsh industrial environments.
• Aging Characteristics: Low annual aging rate, good long-term frequency stability, long service life.

Applications

• Industrial Internet of Things: Industrial wireless remote control, smart meter reading, Internet of Things sensors, radio frequency transmitting modules, suitable for -40°C~+85°C harsh working conditions.
• Automotive Electronics: Car remote keys, vehicle-mounted radio frequency units, vehicle-mounted wireless modules, meeting AEC‑Q200 certification and -40°C~+125°C wide temperature requirements.
• Security Smart Home: Anti-theft alarms, wireless doorbells, smart door locks, infrared alarm systems (315/433MHz mainstream frequency bands).
• High-End Radio Frequency: GPS auxiliary frequency stabilization, walkie-talkies, low-frequency radio frequency systems, suitable for high-precision and strong shielding radio frequency source requirements.
• Consumer Electronics: Toy remote control, etc.
