YSO110TR
- Brand： YXC
- Size/Package： 4P SMD Customized
- Parameter： 1-125MHz
- Supply Voltage： 1.8-3.3V
- Output： CMOS
- Freq Tolerance： ±10,20ppm
- Operating Temp： -40~+85℃
- Applications： Consumer Electronics, Industrial Control, IOT
- Parameters
- Brand： YXC
- Size/Package： 4P SMD Customized
- Parameter： 1-125MHz
- Supply Voltage： 1.8-3.3V
- Output： CMOS
- Freq Tolerance： ±10,20ppm
- Operating Temp： -40~+85℃
- Applications： Consumer Electronics, Industrial Control, IOT

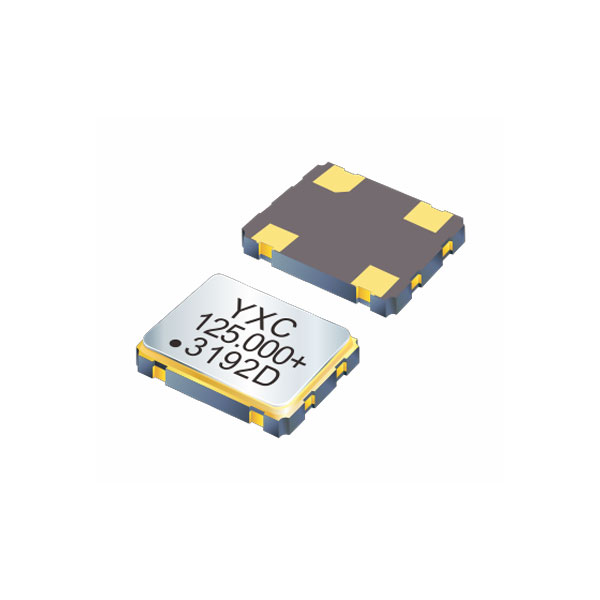

YSO110TR | 1–54 MHz CMOS Oscillator for Robotics, Vision and Industrial Control
Product Introduction
The YSO110TR is a 1–54 MHz CMOS oscillator for robot gateways, vision and industrial control. It addresses multi-voltage domains, harsh-temperature timing and package/lead-time constraints.
YQM supplies authentic YXC YSO110TR parts with datasheets, samples and FAE support for production programs.
Application Pain Points & Solutions
- Pain: Robot gateways mix 1.8V low-power and 3.3V peripheral domains, forcing two crystal part numbers
Solution: 1.8–3.3V supply covers both domains with one part number. - Pain: Outdoor chargers, vision and industrial Ethernet run across wide temperature and need low jitter
Solution: Industrial temperature range and 0.7ps typ. phase jitter keep links and sampling stable. - Pain: Product formats from portable to server need many packages, while lead times and prices fluctuate
Solution: Packages from 1.6×1.2 to 7.0×5.0 mm; YQM stock and local supply shorten lead time.
Core Advantages
- 1.8–3.3 V single part number: Covers low-power 1.8 V and 3.3 V peripheral domains, reducing part numbers.
- 0.7 ps typ. phase jitter: Keeps vision, industrial Ethernet and high-speed links stable.
- Six package options: From 1.6×1.2 to 7.0×5.0 mm for portable to server designs.
- YQM stock and local supply: Shortens lead time for production and samples.
Specifications
| Parameter | Value |
|---|---|
| Output Frequency Range | 1MHz to 54MHz |
| Output Type | CMOS |
| Supply Voltage | 1.8V~3.3V |
| Oscillator Mode | Fundamental |
| Frequency Tolerance (at 25 ℃) | ±10 ppm, ± 20 ppm, or specify |
| Output Load | 15pF, or specify |
| Operating Temperature | -40 ~ +85 ℃, or specify |
| Frequency Versus Temperature Characteristics | ±20 ppm, ± 30 ppm, ± 50 ppm, or specify |
| Storage Temperature | - 55 ~ + 125 ℃ |
| Voltage Vol ( Max. ) / Vol ( Min. ) | 90%Vdd min. /10%Vdd max |
| Symmetry | 45~55% |
| Rise ( Tr ) / Fall ( Tf ) Time | 4nsMax. |
| Start-up Time | 3msMax. |
| Supply Current | See Below |
| Frequency Aging (at 25 ℃) | ± 3 ppm / year Max. |
Original specification table (English).

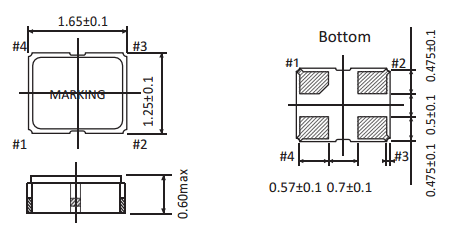

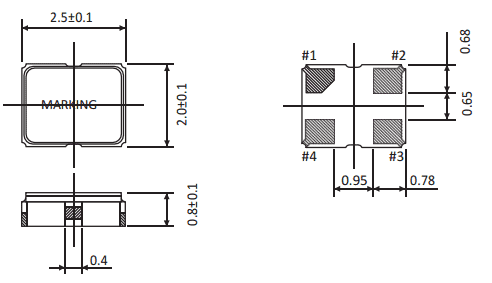

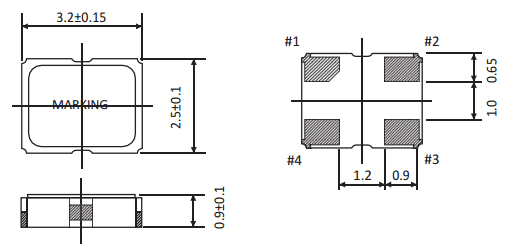

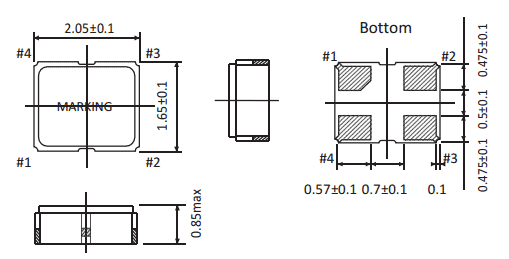

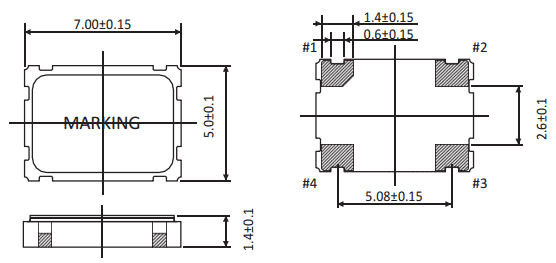

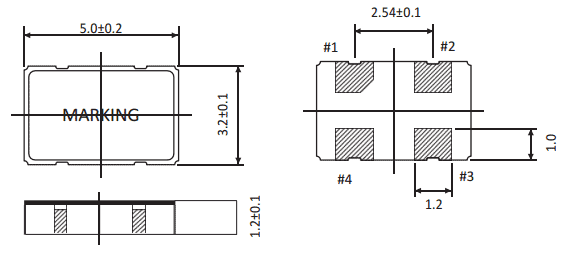

Technical Drawings
Please confirm the exact ordering code, frequency and package with YQM before production.
Applications
Stable timing for industrial and connected designs.
Stable timing for industrial and connected designs.
Stable timing for industrial and connected designs.
Stable timing for industrial and connected designs.
Stable timing for industrial and connected designs.
FAQ
Q: What is the MOQ and lead time for YSO110TR?
A: MOQ depends on package and frequency. Stock items ship quickly; custom frequencies typically take 4–6 weeks. Contact YQM for a quote.
Q: Do you provide samples and datasheets?
A: Yes. Samples and datasheets are available for evaluation.
Q: Can YQM support custom frequencies or packages?
A: Yes, subject to the product series. Send your target frequency, package, stability and temperature range.
Q: Are the parts authentic?
A: YQM supplies authentic YXC parts with traceable lot information.
