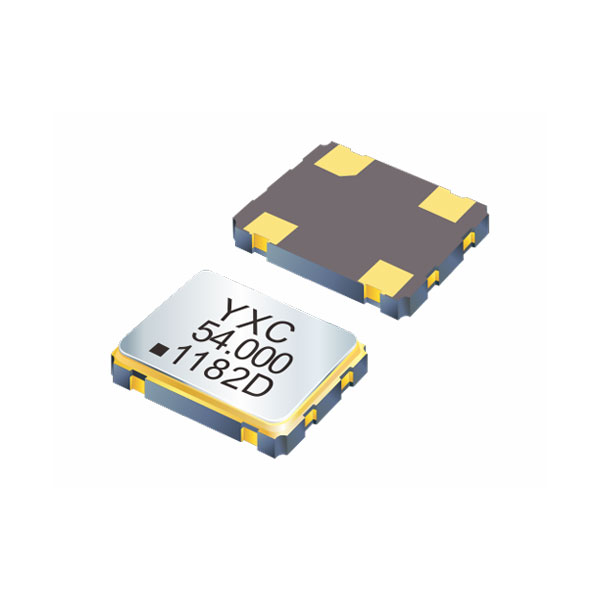

YSO130HR
- Brand： YXC
- Size/Package： 4P SMD Customized
- Parameter： 1-100MHz
- Supply Voltage： 5V
- Output： CMOS
- Freq Tolerance： ±10,20ppm
- Operating Temp： -40~+85℃
- Applications： Consumer Electronics, Industrial Control
- Parameters
- Brand： YXC
- Size/Package： 4P SMD Customized
- Parameter： 1-100MHz
- Supply Voltage： 5V
- Output： CMOS
- Freq Tolerance： ±10,20ppm
- Operating Temp： -40~+85℃
- Applications： Consumer Electronics, Industrial Control
Specifications
| Item / Type | YSO130HR |
| Output Frequency Range | 1MHz to 100MHz |
| Dimensions | 3.2 x 2.5 x 0.90 mm 5.0 x 3.2 x 1.20 mm 7.0 x 5.0 x 1.40 mm |
| Output Type | CMOS |
| Supply Voltage | 5.0V |
| Oscillator Mode | Fundamental |
| Frequency Tolerance (at 25 ℃) | ±10 ppm, ± 20 ppm, or specify |
| Output Load | 15pF, or specify |
| Operating Temperature | -40 ~ +85 ℃, or specify |
| Frequency Versus Temperature Characteristics | ±20 ppm, ± 30 ppm, ± 50 ppm, or specify |
| Storage Temperature | - 55 ~ + 125 ℃ |
| Voltage Vol ( Max. ) / Vol ( Min. ) | 90%Vdd min. /10%Vdd max |
| Symmetry | 45~55% |
| Rise ( Tr ) / Fall ( Tf ) Time | 4ns Max. |
| Start-up Time | 3ms Max. |
| Frequency Aging (at 25 ℃) | ± 3 ppm / year Max. |
External dimensions
(Unit: mm)
