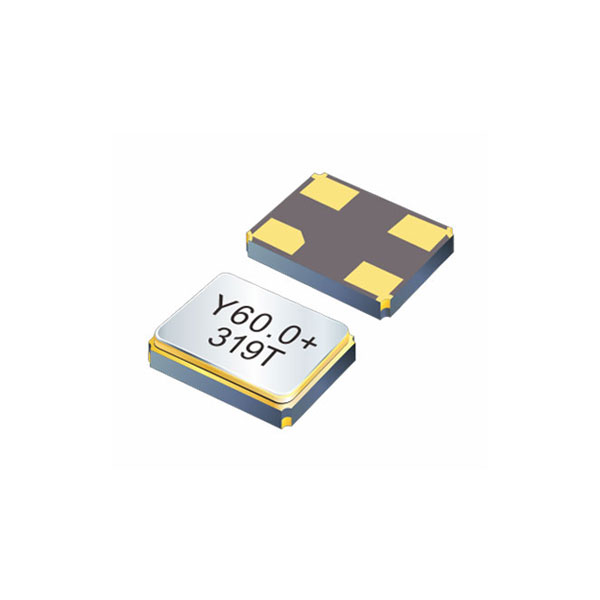

YSX1612SL
- Brand： YXC
- Size/Package： 1.6 x 1.2 x 0.4 mm
- Parameter： 24-60MHz
- Load Cap： 8,9,12pF
- Freq Tolerance： ±10,±20ppm
- Operating Temp： -40℃~+85℃
- Package： 4P 1612
- Applications： Mobile phone, Bluetooth, W-LAN ISM band radio
- Parameters
- Brand： YXC
- Size/Package： 1.6 x 1.2 x 0.4 mm
- Parameter： 24-60MHz
- Load Cap： 8,9,12pF
- Freq Tolerance： ±10,±20ppm
- Operating Temp： -40℃~+85℃
- Package： 4P 1612
- Applications： Mobile phone, Bluetooth, W-LAN ISM band radio
Specifications
| Item / Type | Item / Type |
| Nominal Frequency Range | 24 MHz to 60 MHz |
| Vibration Mode | AT Fundamental |
| Load Capacitance | 8pF, 10pF, or specify |
| Frequency Tolerance (at 25 ℃) | ±10 ppm, ± 30 ppm, or specify |
| Frequency Versus Temperature Characteristics | ± 20 ppm, or specify |
| Operating Temperature | - 20 ~ + 70 ℃ , - 40 ~ + 85 ℃, or specify |
| Storage Temperature | -40 ~ +85 ℃, or specify |
| Shunt Capacitance | 3 pF Max. |
| Level of Drive | 50 μW Max |
| Frequency Aging (at 25 ℃) | ± 2 ppm / year Max. |

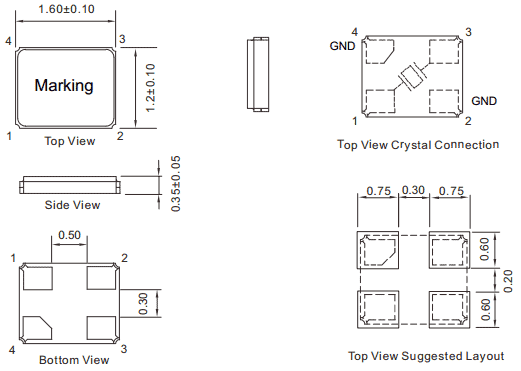

External dimensions
(Unit: mm)
