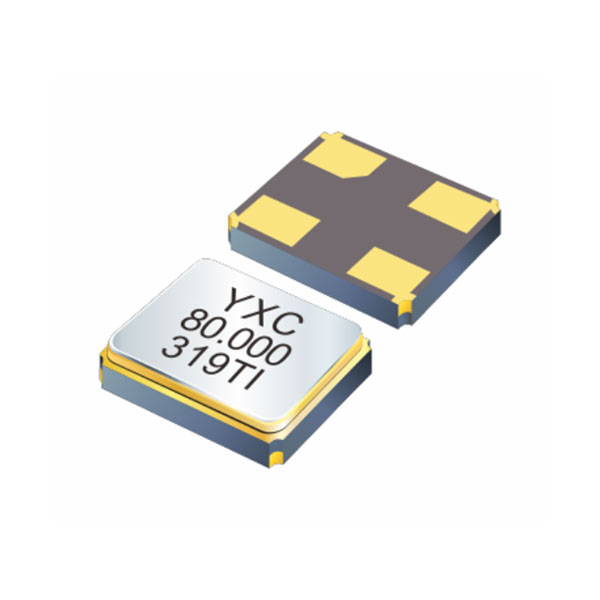

YSX221SC
- Brand： YXC
- Size/Package： 2.5 x 2.0 x 0.5 mm
- Parameter： 12-80MHz
- Load Cap： 8,10pF
- Freq Tolerance： ±10, ±30ppm
- Operating Temp： -40℃~+125℃
- Package： 4P 2520
- Qualification： AEC-Q200
- Applications： GPS, Automotive electronics, Industrial electronics
- Parameters
- Brand： YXC
- Size/Package： 2.5 x 2.0 x 0.5 mm
- Parameter： 12-80MHz
- Load Cap： 8,10pF
- Freq Tolerance： ±10, ±30ppm
- Operating Temp： -40℃~+125℃
- Package： 4P 2520
- Qualification： AEC-Q200
- Applications： GPS, Automotive electronics, Industrial electronics
Specifications
| Item / Type | YSX221SC |
| Standard Frequency | 12 to 80 MHz |
| Vibration Mode | AT Fundamental |
| Load Capacitance | 8pF, 10pF, or specify |
| Frequency Tolerance (at 25 ℃) | ±10 ppm, ± 30 ppm, or specify |
| Frequency Versus Temperature Characteristics | ± 50 ppm, or specify |
| Operating Temperature | - 40 ~ + 125℃, or specify |
| Storage Temperature | - 40 ~ + 125℃, or specify |
| Shunt Capacitance | 3 pF Max. |
| Level of Drive | 100 μW Max. |
| Frequency Aging (at 25 ℃) | ± 2 ppm / year Max. |
Equivalent Series Resistance(ESR)
| Fundamental | |
| 12.0 ~ 15.0MHz | 180 Ω Max. |
| 16.0 ~ 20.0MHz | 150 Ω Max. |
| 21.0 ~30.0 MHz | 100 Ω Max. |
| 31.0~80.0 MHz | 60 Ω Max. |

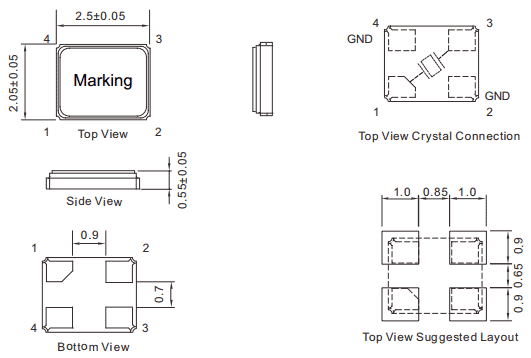

External dimensions
(Unit: mm)
