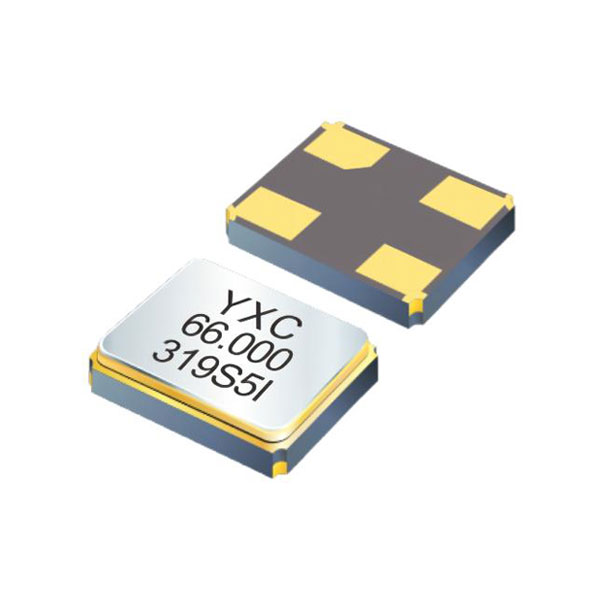

YSX321SC
- Brand： YXC
- Size/Package： 3.2 x 2.5 x 0.7 mm
- Parameter： 8-66MHz
- Load Cap： 8,12pF
- Freq Tolerance： ±10,±30ppm
- Operating Temp： -40℃~+125℃
- Package： 4P 3225
- Qualification： AEC-Q200
- Applications： GPS,Automotive electronics,Industrial electronics
- Parameters
- Brand： YXC
- Size/Package： 3.2 x 2.5 x 0.7 mm
- Parameter： 8-66MHz
- Load Cap： 8,12pF
- Freq Tolerance： ±10,±30ppm
- Operating Temp： -40℃~+125℃
- Package： 4P 3225
- Qualification： AEC-Q200
- Applications： GPS,Automotive electronics,Industrial electronics
Specifications
| Item / Type | YSX321SC |
| Standard Frequency | 8.0 to 66 MHz |
| Vibration Mode | AT Fundamental |
| Load Capacitance | 8pF, 12pF, or specify |
| Frequency Tolerance (at 25 ℃) | ±10 ppm, ± 30 ppm, or specify |
| Frequency Versus Temperature Characteristics | ± 50 ppm, or specify |
| Operating Temperature | - 40 ~ + 125℃, or specify |
| Storage Temperature | - 40 ~ + 125℃, or specify |
| Shunt Capacitance | 3 pF Max. |
| Level of Drive | 200 μW Max. |
| Frequency Aging (at 25 ℃) | ± 2 ppm / year Max. |
Equivalent Series Resistance(ESR)
| Fundamental | |
| 8.0~9.9MHz | 800 Ω Max. |
| 10.0 ~10.9MHz | 250 Ω Max |
| 11.0 ~11.9MHz | 150 Ω Max |
| 12.0 ~12.9 MHz | 100 Ω Max |
| 13.0~15.9 MHz | 70 Ω Max. |
| 21.0 ~29.9 MHz | 60 Ω Max |
| 30.0 ~66.0 MHz | 50 Ω Max. |

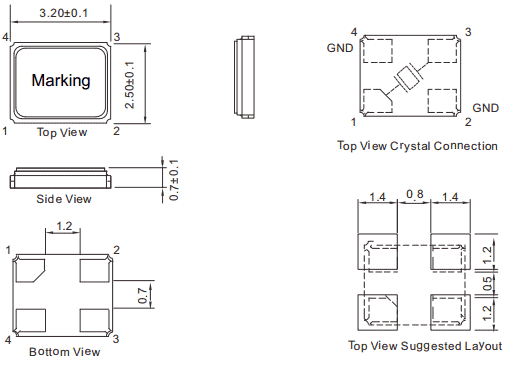

External dimensions
(Unit: mm)
