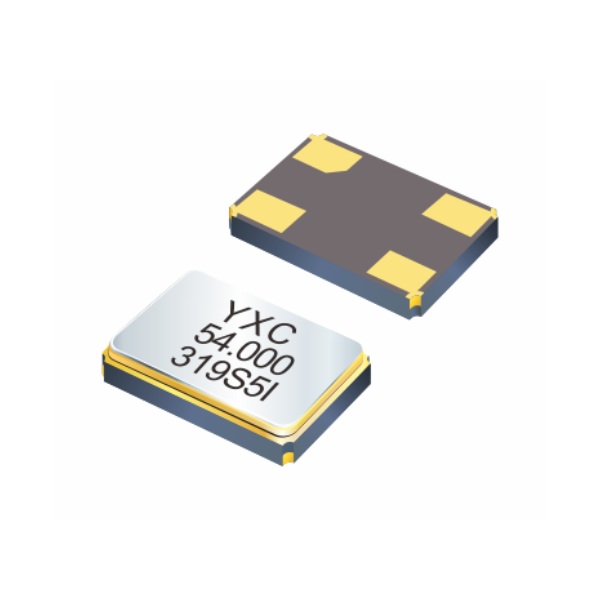

YSX531SC
- Brand： YXC
- Size/Package： 5.0 x 3.2 x 0.8 mm
- Parameter： 7.6-54MHz
- Load Cap： 18pF,20pF
- Freq Tolerance： ±10,±30ppm
- Operating Temp： -40℃~+125℃
- Package： 4P 5032
- Qualification： AEC-Q200
- Applications： GPS, Automotive electronics
- Parameters
- Brand： YXC
- Size/Package： 5.0 x 3.2 x 0.8 mm
- Parameter： 7.6-54MHz
- Load Cap： 18pF,20pF
- Freq Tolerance： ±10,±30ppm
- Operating Temp： -40℃~+125℃
- Package： 4P 5032
- Qualification： AEC-Q200
- Applications： GPS, Automotive electronics
Specifications
| Item / Type | YSX531SC |
| Standard Frequency | 7.6 to 54 MHz |
| Vibration Mode | AT Fundamental |
| Load Capacitance | 18pF, 20pF, or specify |
| Frequency Tolerance (at 25 ℃) | ±10 ppm, ± 30 ppm, or specify |
| Frequency Versus Temperature Characteristics | ± 50 ppm, or specify |
| Operating Temperature | - 40 ~ + 125℃, or specify |
| Storage Temperature | - 40 ~ + 125℃, or specify |
| Shunt Capacitance | 5 pF Max. |
| Level of Drive | 300 μW Max. |
| Frequency Aging (at 25 ℃) | ± 2 ppm / year Max. |

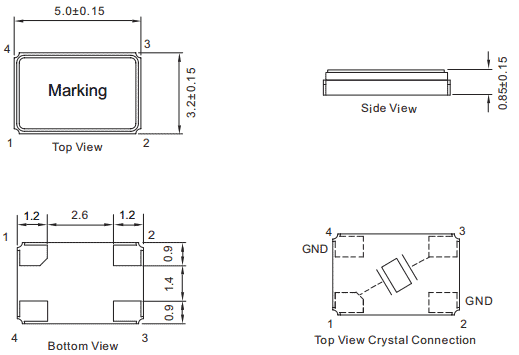

External dimensions
(Unit: mm)
