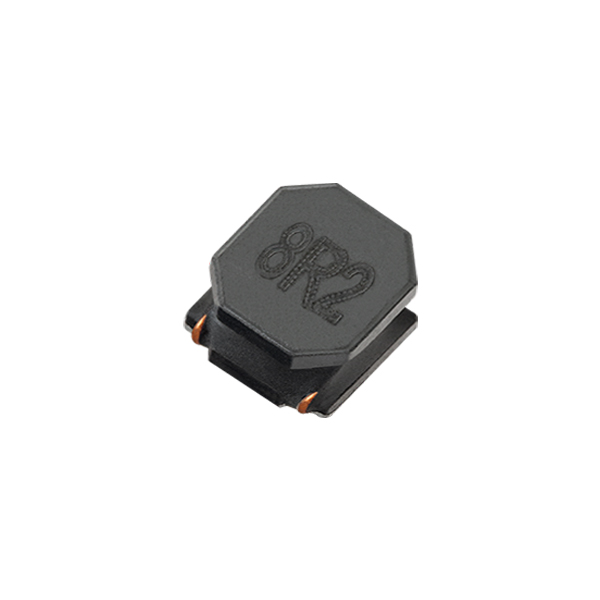

AS1A4030
High performance and high strength ferrite materials, high current and high reliability
- Brand： Sunlord
- Size/Package： 4.0×4.0×3.0mm
- Parameter： 1.0-680μH
- Rated Current： 0.14-4.15A
- Package： SMD
- Operating Temp： -55℃~+150℃
- Applications： ADAS/Infotainment system/LED Lighting/Airbag/Intemet of vehicle
- Parameters
- Brand： Sunlord
- Size/Package： 4.0×4.0×3.0mm
- Parameter： 1.0-680μH
- Rated Current： 0.14-4.15A
- Package： SMD
- Operating Temp： -55℃~+150℃
- Applications： ADAS/Infotainment system/LED Lighting/Airbag/Intemet of vehicle
Automotive Power Inductors | AS1A4030
Product Introduction
Sunlord AS1A4030 is the high-Isat 4030 member of the 2025 AS1A automotive power inductor platform. With DCR from 14mΩ and saturation current up to 7.9A, it feeds LED headlights, BMS, OBC, high-power DC-DC and ADAS rails from -55°C to +150°C.
Core Advantages
- High Isat up to 7.9A: strong DC-bias margin for high-power automotive stages.
- Ultra-low DCR from 14mΩ: minimal conduction loss in heavy-load rails.
- 1–68μH coverage: power-stage and filter values in one footprint.
- Heat-resistant +150°C: 2025 AS1A platform for high-temperature zones.
- AEC-Q200 qualified: magnetic shielding, halogen-free, RoHS compliant.
Key Specifications
| Parameter | Value |
|---|---|
| Type | Power Circuits (Automotive) |
| Package Size | Metric 4030 |
| Operating Temperature | -55°C–+150°C |
| Environmental Compliance | Halogen-free, RoHS compliant |
| Inductance | 1μH–68μH |
| Tolerance | ±20% |
| DC Resistance (DCR) | 0.014 Ω–0.792 Ω (typ.) |
| Saturation Current (Isat) | 0.9A–7.9 A (typ.) |
| RMS Current (Irms) | 0.7A–4.5A (typ.) |
Cross Reference & Replacement
Cross-reference alternatives: TDK (same-size AEC-Q200 shielded wire-wound), Murata (stable global supply) and Fenghua Advanced (short lead-time option). AS1A4030 matches their pads and electricals.
Applications
LED headlight drivers, ambient lighting, DRL
BMS, OBC, high-power DC-DC
infotainment, instrument cluster, displays
ADAS modules, sensor supply units
FAQ
Q: What is the saturation current of AS1A4030?
A: 0.9–7.9A depending on inductance value — with DCR from 14mΩ for heavy-load rails.
Q: Does AS1A4030 work in ADAS modules?
A: Yes — magnetic shielding keeps EMI low around sensors, and the -55~+150°C range covers ADAS environments.
