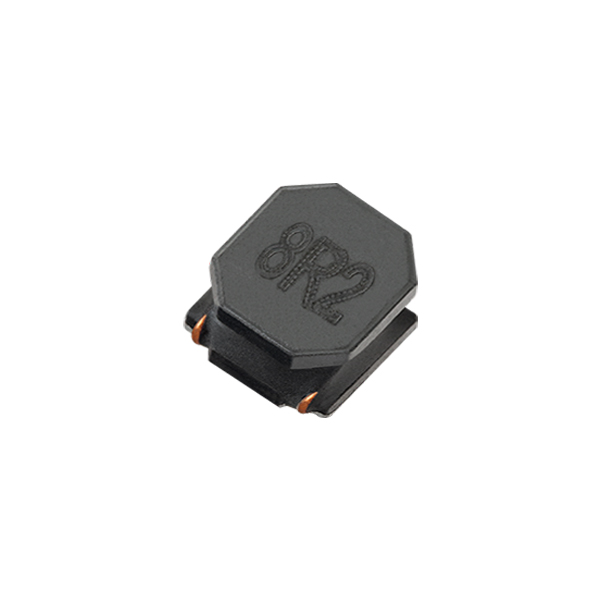

AS1A5020
High performance and high strength ferrite materials, high current and high reliability
- Brand： Sunlord
- Size/Package： 5.0×5.0×2.0mm
- Parameter： 0.47-47μH
- Rated Current： 0.7-5.2A
- Package： SMD
- Operating Temp： -55℃~+150℃
- Applications： ADAS/Infotainment system/LED Lighting/Airbag/Intemet of vehicle
- Parameters
- Brand： Sunlord
- Size/Package： 5.0×5.0×2.0mm
- Parameter： 0.47-47μH
- Rated Current： 0.7-5.2A
- Package： SMD
- Operating Temp： -55℃~+150℃
- Applications： ADAS/Infotainment system/LED Lighting/Airbag/Intemet of vehicle
Automotive Power Inductors | AS1A5020
Product Introduction
Sunlord AS1A5020 is the 5020 member of the 2025 AS1A automotive power inductor platform. Closed magnetic circuit, magnetic shielding and AEC-Q200 qualification deliver 0.47–47μH with Isat up to 9A for LED headlights, BMS, OBC, DC-DC and ADAS rails up to +150°C.
Core Advantages
- Isat up to 9A: strong current capability for mid/high-power automotive stages.
- Low DCR from 12mΩ: high efficiency in heavy-load rails.
- 0.47–47μH coverage: wide filter range in one footprint.
- Heat-resistant +150°C: 2025 AS1A platform for high-temperature environments.
- AEC-Q200 qualified: magnetic shielding, halogen-free, RoHS compliant.
Key Specifications
| Parameter | Value |
|---|---|
| Type | Power Circuits (Automotive) |
| Package Size | Metric 5020 |
| Operating Temperature | -55°C–+150°C |
| Environmental Compliance | Halogen-free, RoHS compliant |
| Inductance | 0.47μH–47μH |
| Tolerance | ±20% |
| DC Resistance (DCR) | 0.012 Ω–0.540 Ω (typ.) |
| Saturation Current (Isat) | 1.1A–9.0 A (typ.) |
| RMS Current (Irms) | 0.8A–6A (typ.) |
Cross Reference & Replacement
Cross-reference alternatives: TDK (same-size AEC-Q200 shielded wire-wound), Murata (stable global supply) and Fenghua Advanced (short lead-time alternative). AS1A5020 matches their pads and key electricals.
Applications
LED headlight drivers, ambient lighting, DRL
BMS, OBC, DC-DC converters
infotainment, instrument cluster, displays
ADAS modules, sensor supply units
FAQ
Q: What makes AS1A5020 heat-resistant?
A: The 2025 AS1A platform uses heat-resistant materials rated -55°C to +150°C including self-temperature rise.
Q: Is AS1A5020 suitable for DC-DC converters?
A: Yes — 0.47–47μH with Isat up to 9A covers buck/boost output filtering for automotive DC-DC.
