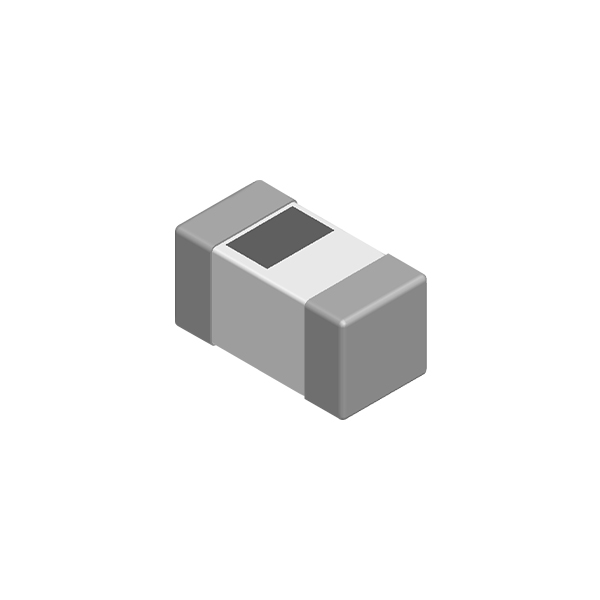

ASDCL1005-A01
Monolithic structure for high reliability, High self-resonant frequency
- Brand： Sunlord
- Size/Package： 1005 (0402 inch)
- Parameter： 0.6-180nH
- Rated Current： 100-800mA
- Package： SMD
- Operating Temp： -55℃~+125℃
- Applications： Infotainment system, Passive keyless entry
- Parameters
- Brand： Sunlord
- Size/Package： 1005 (0402 inch)
- Parameter： 0.6-180nH
- Rated Current： 100-800mA
- Package： SMD
- Operating Temp： -55℃~+125℃
- Applications： Infotainment system, Passive keyless entry
Automotive Multilayer Inductors | ASDCL1005-A01
Product Introduction
Sunlord ASDCL1005-A01 is an AEC-Q200 multilayer ceramic chip inductor in the 0402 (1.0×0.5mm) size for high-density automotive wiring. With 0.6–180nH, SRF up to 10GHz and excellent humidity/aging resistance, it covers BCM, gateway, ADAS radar/camera and T-BOX/V2X signal filtering.
Core Advantages
- 0402 high-density size: compact footprint for dense automotive PCB routing.
- SRF up to 10GHz: wide high-frequency coverage for RF matching and decoupling.
- High-temperature, high-humidity resistance: excellent anti-aging performance at -55~+125°C.
- AEC-Q200 qualified: full automotive reliability for BCM, gateways and ADAS ECU.
- Halogen-free, RoHS: standard SMT reflow compatible.
Key Specifications
| Parameter | Value |
|---|---|
| Type | High Freq Circuits (Automotive) |
| Structure / Material | Monolithic multilayer structure |
| Package Size | Metric 1005 |
| Operating Temperature | -55°C–+125°C |
| Environmental Compliance | Halogen-free, RoHS compliant |
| Inductance | 0.6nH–180nH |
| Q Factor | 4–8 |
| Self-Resonant Frequency (SRF) | 500MHz–10000MHz |
| DC Resistance (DCR) | 0.1 Ω–3.7 Ω |
| Rated Current (Ir) | 100mA–800mA |
Cross Reference & Replacement
Cross-reference alternatives: Bourns (0402 AEC-Q200 multilayer with global coverage), Coilcraft (US professional inductor house) and Murata (globally available equivalent). ASDCL1005-A01 matches their pads and HF characteristics.
Applications
BCM, central gateways, body sensors
mmWave radar aux, front camera, ADAS ECU
T-BOX, V2X modules, BT/WiFi units
sensor nodes, compact control modules
FAQ
Q: What is the SRF of ASDCL1005-A01?
A: 500MHz to 10GHz depending on inductance value — covers GHz-band RF matching and decoupling.
Q: Is ASDCL1005-A01 humidity-resistant?
A: Yes — qualified for high-temperature/high-humidity automotive environments with excellent anti-aging performance.
