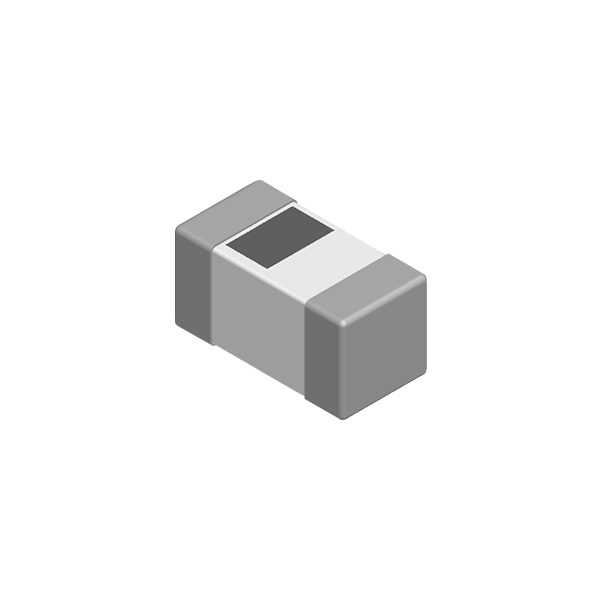

ASDCL1608-A01
Monolithic structure for high reliability, High self-resonant frequency
- Brand： Sunlord
- Size/Package： 1608 (0603 inch)
- Parameter： 1.0-470nH
- Rated Current： 150-500mA
- Package： SMD
- Operating Temp： -55℃~+125℃
- Applications： Infotainment system, Passive keyless entry
- Parameters
- Brand： Sunlord
- Size/Package： 1608 (0603 inch)
- Parameter： 1.0-470nH
- Rated Current： 150-500mA
- Package： SMD
- Operating Temp： -55℃~+125℃
- Applications： Infotainment system, Passive keyless entry
Automotive Multilayer Inductors | ASDCL1608-A01
Product Introduction
Sunlord ASDCL1608-A01 is an AEC-Q200 multilayer ceramic chip inductor in the mainstream 0603 (1.6×0.8mm) size. With a wider 1–470nH range and higher current than the 1005 version, it targets mid/high-power automotive DC-DC, OBC aux circuits, BCM, ADAS controllers and infotainment rails.
Core Advantages
- Wide 1–470nH range: broader coverage and higher current than smaller multilayer sizes.
- Q factor 8–12: low HF loss for resonant and matching circuits.
- SRF 250MHz–10GHz: from power-line filtering to GHz RF decoupling.
- AEC-Q200 qualified: -40°C to +125°C (select parts to +150°C), high reliability.
- Halogen-free, RoHS: standard SMT reflow compatible.
Key Specifications
| Parameter | Value |
|---|---|
| Type | High Freq Circuits (Automotive) |
| Structure / Material | Monolithic multilayer structure |
| Package Size | Metric 1608 |
| Operating Temperature | -55°C–+125°C |
| Environmental Compliance | Halogen-free, RoHS compliant |
| Inductance | 1nH–470nH |
| Q Factor | 8–12 |
| Self-Resonant Frequency (SRF) | 250MHz–10000MHz |
| DC Resistance (DCR) | 0.05 Ω–3.6 Ω |
| Rated Current (Ir) | 150mA–500mA |
Cross Reference & Replacement
Cross-reference alternatives: Pulse Electronics (0603 AEC-Q200 multilayer for comms/networking), Taiyo Yuden (Japanese automotive multilayer standard) and Murata (globally available equivalent). ASDCL1608-A01 matches their pads and electricals.
Applications
DC-DC converters, OBC aux circuits, BCM supply
front camera ECU, radar controllers, domain controllers
head units, displays, audio power modules
charging pile aux, BMS, storage aux circuits
FAQ
Q: What current can ASDCL1608-A01 carry?
A: 150–500mA rated depending on inductance value — higher than 0402-class multilayer parts.
Q: Does ASDCL1608-A01 support +150°C?
A: Select P/Ns support up to +150°C; the standard range is -40°C to +125°C.
