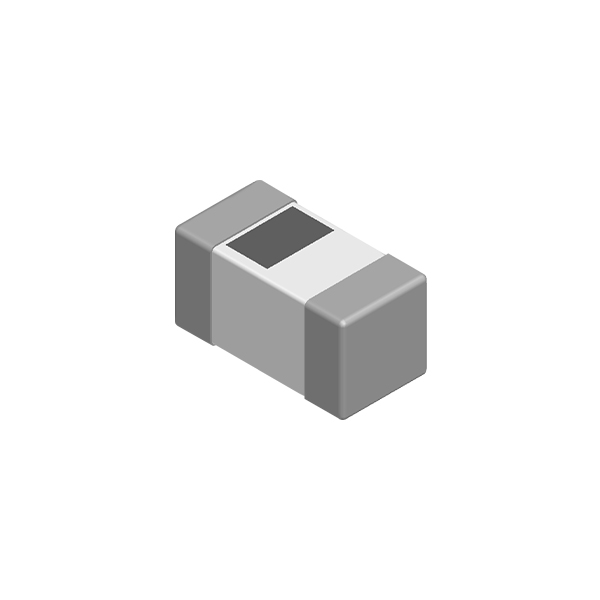

ASDCL03
Monolithic structure for high reliability, High self-resonant frequency
- Brand： Sunlord
- Size/Package： 0603 (0201 inch)
- Parameter： 0.6-120nH
- Rated Current： 80-850mA
- Package： SMD
- Operating Temp： -55℃~+125℃
- Applications： Infotainment system, Passive keyless entry
- Parameters
- Brand： Sunlord
- Size/Package： 0603 (0201 inch)
- Parameter： 0.6-120nH
- Rated Current： 80-850mA
- Package： SMD
- Operating Temp： -55℃~+125℃
- Applications： Infotainment system, Passive keyless entry
Automotive Multilayer Inductors | ASDCL03
Product Introduction
Sunlord ASDCL03 is an AEC-Q200 multilayer ceramic chip inductor in the ultra-small 0201 (0.6×0.3mm) size for high-density automotive electronics. Monolithic layered structure with RoHS compliance targets signal-line filtering and low-current choking in ADAS micro-sensors, BMS units and BCM auxiliary circuits.
Core Advantages
- Ultra-small 0201 size: 0.6×0.3mm fits the densest automotive modules and camera boards.
- AEC-Q200 qualified: automotive reliability with -55°C to +125°C operation.
- Monolithic multilayer structure: high reliability, stable high-frequency performance.
- 0.6–120nH with SRF 300–500MHz: covers HF signal filtering and RF decoupling needs.
- Halogen-free, RoHS: compatible with standard SMT reflow.
Key Specifications
| Parameter | Value |
|---|---|
| Type | High Freq Circuits (Automotive) |
| Structure / Material | Monolithic multilayer structure |
| Package Size | Metric 0603 |
| Operating Temperature | -55°C–+125°C |
| Environmental Compliance | Halogen-free, RoHS compliant |
| Inductance | 0.6nH–120nH |
| Self-Resonant Frequency (SRF) | 300MHz–500MHz |
| DC Resistance (DCR) | 0.06 Ω–5 Ω |
| Rated Current (Ir) | 80mA–850mA |
Cross Reference & Replacement
Cross-reference alternatives: Abracon (0201 AEC-Q200 multilayer with US supply chain), TDK (Japanese AEC-Q200 multilayer standard) and Murata (globally available equivalent). ASDCL03 matches their pads and HF characteristics.
Applications
ADAS micro-sensors, BMS units, BCM aux circuits
camera modules, radar auxiliary circuits
sensor nodes, portable inspection devices
endoscope modules, wearable monitors
FAQ
Q: What package size is ASDCL03?
A: Metric 0603 = EIA 0201 (0.6×0.3mm) — one of the smallest standard inductor footprints for ultra-dense boards.
Q: Is ASDCL03 qualified for automotive use?
A: Yes — AEC-Q200 qualified with an operating range of -55°C to +125°C and RoHS compliance.
