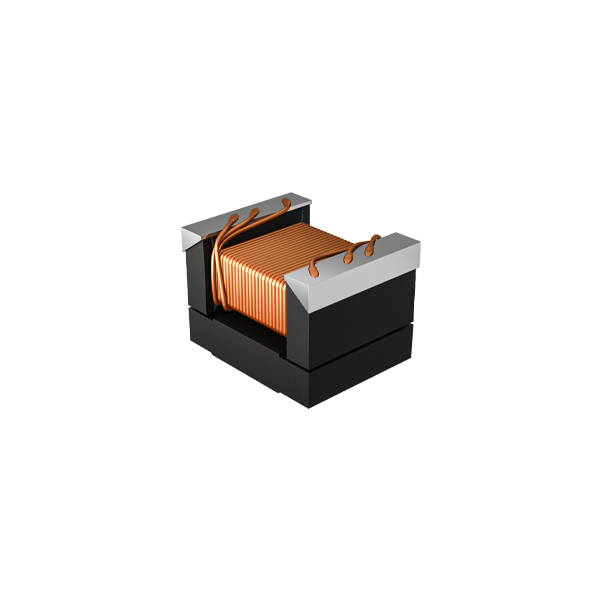

AWL3225-FP
High saturation current, low DCR, The range of filter video noise from MHz to GHz
- Brand： Sunlord
- Size/Package： 3.2×2.5×2.3mm
- Parameter： 2.2-47μH
- Rated Current： 0.3-1.0A
- Package： SMD
- Operating Temp： -40℃~+125℃
- Applications： LED Lighting
- Parameters
- Brand： Sunlord
- Size/Package： 3.2×2.5×2.3mm
- Parameter： 2.2-47μH
- Rated Current： 0.3-1.0A
- Package： SMD
- Operating Temp： -40℃~+125℃
- Applications： LED Lighting
Automotive PoC Inductors | AWL3225-FP
Product Introduction
Sunlord AWL3225-FP is a wire-wound ferrite chip inductor in metric 3225 (EIA 1210) for automotive PoC circuits and high-power high-density DC-DC conversion. RoHS compliant with select P/Ns AEC-Q200 qualified, it powers infotainment, ADAS controllers and OBC across -40°C to +125°C.
Core Advantages
- PoC-optimized: 2.2–47nH with SRF 30–200MHz separates DC power from RF signals on coaxial camera links.
- High-current 1210 class: 300–1000mA handling in a compact 3.2×2.5mm footprint.
- Wire-wound ferrite: high Q and low DCR for efficient high-density power.
- Automotive-ready: select P/Ns AEC-Q200 qualified, -40~+125°C operation.
- RoHS compliant: standard SMT reflow compatible.
Key Specifications
| Parameter | Value |
|---|---|
| Type | PoC Circuits (Automotive) |
| Package Size | Metric 3225 |
| Operating Temperature | -40°C–+125°C |
| Environmental Compliance | Halogen-free, RoHS compliant |
| Inductance | 2.2nH–47nH |
| Self-Resonant Frequency (SRF) | 30MHz–200MHz |
| DC Resistance (DCR) | 0.19 Ω–0.9 Ω |
| Saturation Current (Isat) | 300mA–1000mA |
| RMS Current (Irms) | 500mA–1000mA |
Cross Reference & Replacement
Cross-reference alternatives: TDK (PoC wire-wound ferrite, Japanese automotive standard), Murata (globally available PoC inductors) and Fenghua Advanced (short lead-time option). AWL3225-FP matches their pads and PoC characteristics.
Applications
smartphone fast charge, notebook motherboards, tablets
5G CPE, WiFi 6/6E APs, optical module aux power
infotainment, ADAS controllers, OBC
server VRM, GPU power modules, industrial gateways
FAQ
Q: What is a PoC inductor?
A: Power-over-Coax inductors separate DC supply from RF signals on a single coaxial cable — widely used for automotive camera links.
Q: Is AWL3225-FP AEC-Q200 qualified?
A: Select P/Ns are AEC-Q200 qualified; the full series is RoHS compliant with -40~+125°C operation.
