MWSD0603F
Small chip suitable for surface mounting, Large inductance with ferrite material
- Brand： Sunlord
- Size/Package： 0603 (0201 inch)
- Parameter： 33 - 200nH
- Rated Current： 110 - 340mA
- Package： SMD
- Operating Temp： -40℃~+85℃
- Applications： Mobile phones, TWS headsets, smart watches
- Parameters
- Brand： Sunlord
- Size/Package： 0603 (0201 inch)
- Parameter： 33 - 200nH
- Rated Current： 110 - 340mA
- Package： SMD
- Operating Temp： -40℃~+85℃
- Applications： Mobile phones, TWS headsets, smart watches
Signal Circuit Inductors | MWSD0603F
Product Introduction

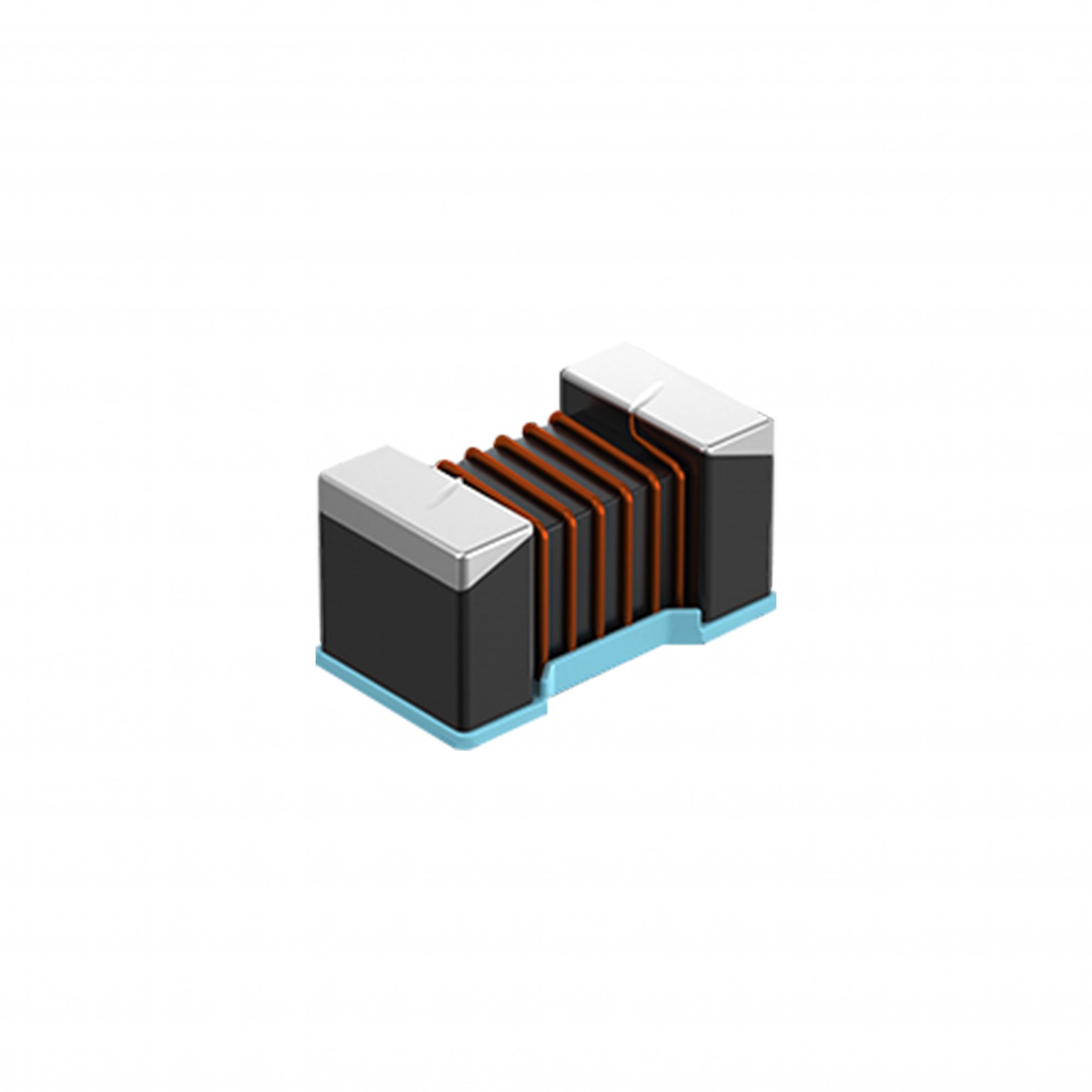

Sunlord MWSD0603F is a micro wire-wound ferrite chip inductor in EIA 0201 (0.6×0.3mm) with an ultra-thin single-side package. It brings larger inductance in the tiniest volume for signal-line filtering and low-current power choking in phones, wearable gadgets and IoT terminals.
Core Advantages
- 0201 micro size: 0.6×0.3mm with ultra-thin single-side construction for slim designs.
- 33–200nH ferrite range: bigger inductance than ceramic RF parts of the same size.
- SRF 1.7–3.4GHz: clean filtering for baseband and RF auxiliary lines.
- RoHS & halogen-free: compatible with standard SMT reflow.
- Cost-effective signal filtering: mass-production staple for portable consumer electronics.
Key Specifications
| Parameter | Value |
|---|---|
| Type | 信号电路 |
| Structure / Material | Precision wire-wound structure |
| Package Size | Metric 0603 |
| Operating Temperature | -40°C–+85°C |
| Environmental Compliance | Halogen-free, RoHS compliant |
| Inductance | 33nH–200nH |
| Self-Resonant Frequency (SRF) | 1700MHz–3400MHz |
| DC Resistance (DCR) | 0.15 Ω–1.25 Ω |
| Rated Current (Ir) | 110mA–340mA |
Cross Reference & Replacement
Cross-reference alternatives: Murata LQM (ferrite signal inductors), TDK (Japanese ferrite inductor standard) and Fenghua Advanced (short lead-time option). MWSD0603F matches their pads and filtering characteristics.
Applications
baseband filtering, RF aux choking, camera aux circuits
TWS charging cases, MP3 players, smart rings, micro sensors
BLE beacons, smart-home sensors, medical monitors
FAQ
Q: What is the difference between MWSD0603F and MWSD0603C?
A: The F series uses a ferrite core for signal-line filtering with larger inductance; the C series is ceramic for high-frequency RF matching.
Q: What temperature range does MWSD0603F support?
A: -40°C to +85°C — suitable for consumer and IoT terminals.
