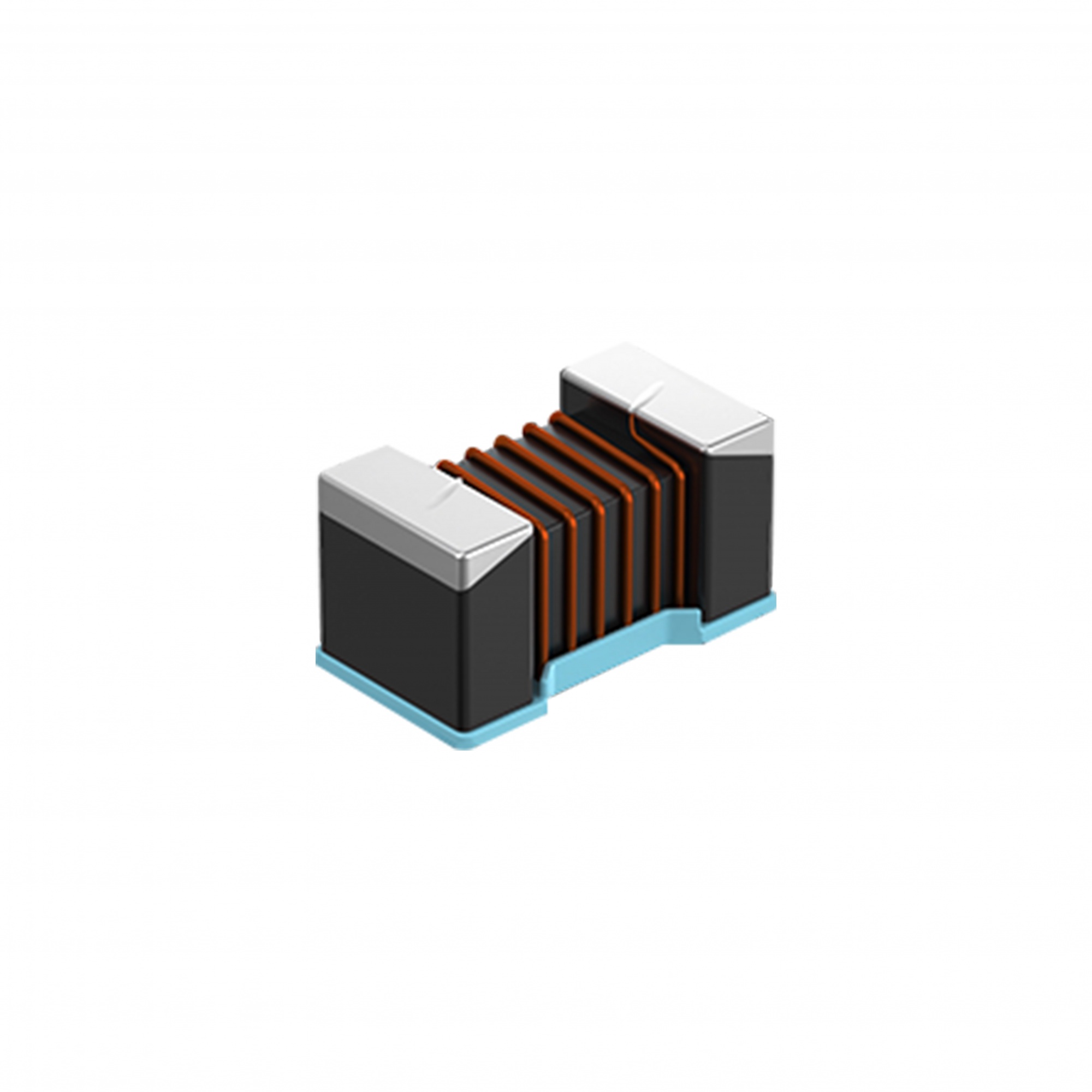

MWSD1608F
Small chip suitable for surface mounting, Large inductance with ferrite material
- Brand： Sunlord
- Size/Package： 1608 (0603 inch)
- Parameter： 51 - 22000nH
- Rated Current： 70 - 1050mA
- Package： SMD
- Operating Temp： -40℃~+85℃
- Applications： Mobile phones, TWS headsets, smart watches
- Parameters
- Brand： Sunlord
- Size/Package： 1608 (0603 inch)
- Parameter： 51 - 22000nH
- Rated Current： 70 - 1050mA
- Package： SMD
- Operating Temp： -40℃~+85℃
- Applications： Mobile phones, TWS headsets, smart watches
Signal Circuit Inductors | MWSD1608F
Product Introduction
Sunlord MWSD1608F is the mainstream 0603 member of the MWSD-F wire-wound ferrite family for signal-line filtering and small DC-DC choking. Versus the 1005 size it adds more inductance (up to 47μH) and higher current, with an ultra-thin single-side package.
Core Advantages
- 4.9nH–47μH wide coverage: bigger inductance and stronger current than the 1005 version.
- Up to 2600mA rated: strong current handling for signal and small power rails.
- 0603 ultra-thin package: single-side construction for slim portable designs.
- SRF 11–2350MHz: clean filtering across baseband and RF auxiliary lines.
- Halogen-free RoHS: standard SMT reflow compatible.
Key Specifications
| Parameter | Value |
|---|---|
| Type | 信号电路 |
| Structure / Material | Precision wire-wound structure |
| Package Size | Metric 1608 |
| Operating Temperature | -40°C–+85°C |
| Environmental Compliance | Halogen-free, RoHS compliant |
| Inductance | 4.9nH–47000nH |
| Self-Resonant Frequency (SRF) | 11MHz–2350MHz |
| DC Resistance (DCR) | 0.015 Ω–24 Ω |
| Rated Current (Ir) | 50mA–2600mA |
Cross Reference & Replacement
Cross-reference alternatives: Murata LQM (ferrite signal inductors), TDK (Japanese ferrite standard) and Fenghua Advanced (short lead-time option). MWSD1608F matches their pads and filtering characteristics.
Applications
signal filtering, DC-DC choking, camera aux
TWS cases, MP3 players, smart rings
BLE beacons, smart-home sensors, medical monitors
FAQ
Q: What is the maximum inductance of MWSD1608F?
A: 47μH — the widest coverage in the MWSD-F 0603 family for filter and choke applications.
Q: What current can MWSD1608F carry?
A: 50–2600mA depending on inductance value.
