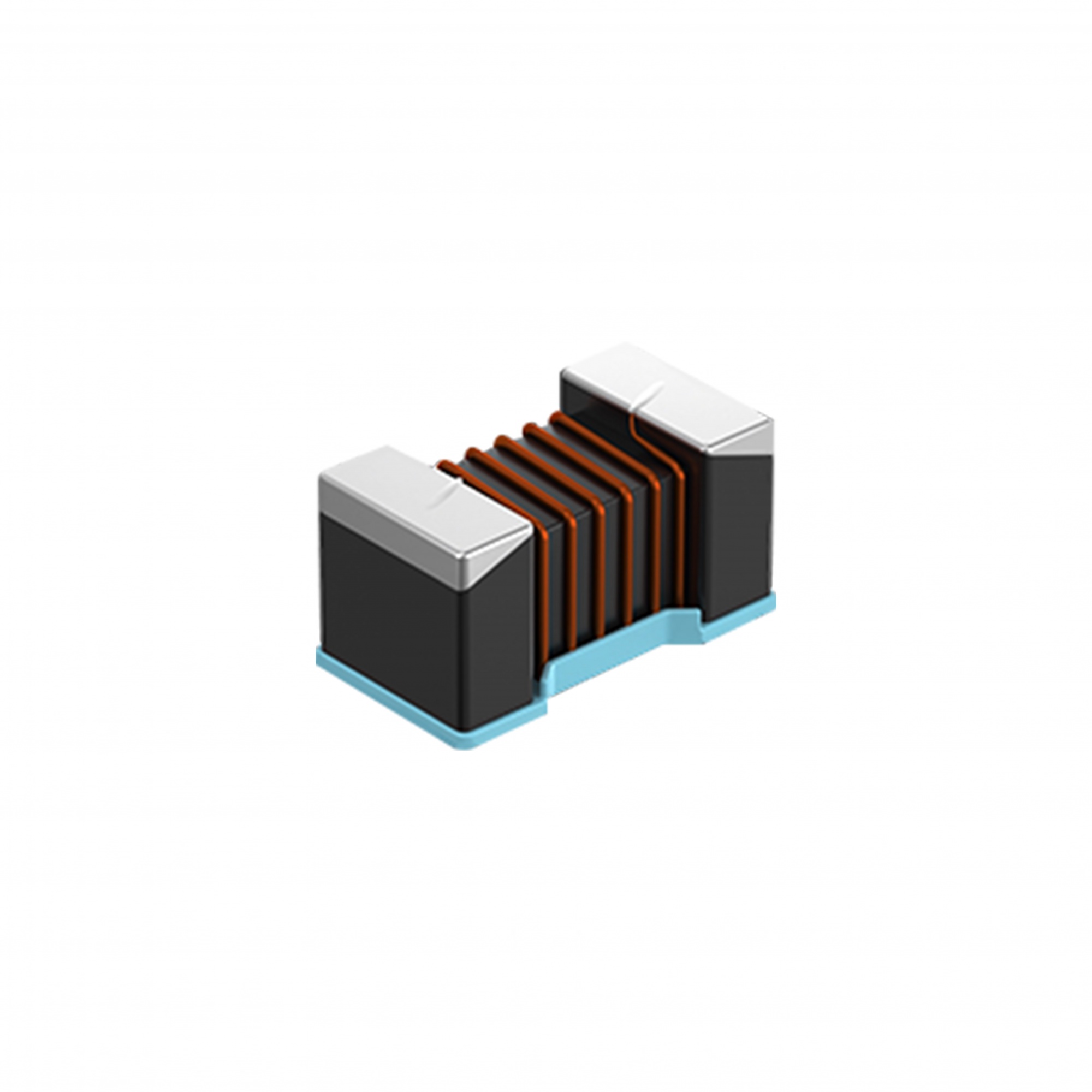

MWSD1005F
Small chip suitable for surface mounting, Large inductance with ferrite material
- Brand： Sunlord
- Size/Package： 1005 (0402 inch)
- Parameter： 22 - 2200nH
- Rated Current： 170 - 1600mA
- Package： SMD
- Operating Temp： -40℃~+85℃
- Applications： Mobile phones, TWS headsets, smart watches
- Parameters
- Brand： Sunlord
- Size/Package： 1005 (0402 inch)
- Parameter： 22 - 2200nH
- Rated Current： 170 - 1600mA
- Package： SMD
- Operating Temp： -40℃~+85℃
- Applications： Mobile phones, TWS headsets, smart watches
Signal Circuit Inductors | MWSD1005F
Product Introduction
Sunlord MWSD1005F is the mainstream 0402 member of the MWSD-F wire-wound ferrite family for signal-line filtering and low-current power choking in portable consumer electronics. Ultra-thin single-side package with wider 18–4700nH coverage than the 0201 version.
Core Advantages
- 18–4700nH wide coverage: bigger inductance than 0201-class parts for filter and choke needs.
- 0402 ultra-thin package: single-side construction fits slim portable designs.
- High current to 2200mA: stronger current than typical signal-class inductors.
- SRF 100–2600MHz: clean filtering for baseband and RF auxiliary lines.
- Halogen-free RoHS: standard SMT reflow compatible.
Key Specifications
| Parameter | Value |
|---|---|
| Type | 信号电路 |
| Structure / Material | Precision wire-wound structure |
| Package Size | Metric 1005 |
| Operating Temperature | -40°C–+85°C |
| Environmental Compliance | Halogen-free, RoHS compliant |
| Inductance | 18nH–4700nH |
| Self-Resonant Frequency (SRF) | 100MHz–2600MHz |
| DC Resistance (DCR) | 0.028 Ω–5.5 Ω |
| Rated Current (Ir) | 170mA–2200mA |
Cross Reference & Replacement
Cross-reference alternatives: Murata LQM (ferrite signal inductors), TDK (Japanese ferrite standard) and Fenghua Advanced (short lead-time option). MWSD1005F matches their pads and filtering characteristics.
Applications
signal filtering, power-module filtering, camera aux
TWS cases, MP3 players, smart rings
BLE beacons, smart-home sensors, medical monitors
FAQ
Q: What inductance does MWSD1005F cover?
A: 18nH to 4700nH — the widest in the MWSD-F 0402 family for signal filtering.
Q: What temperature range does MWSD1005F support?
A: -40°C to +85°C — suitable for portable consumer and IoT terminals.
