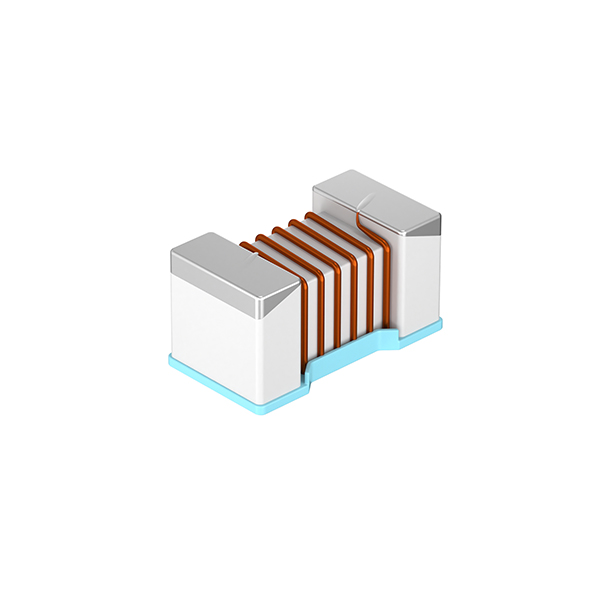

MWSD1005C-M01
Small chip suitable for surface mounting, High Q value and high self-resonant frequency with ceramic materia
- Brand： Sunlord
- Size/Package： 1005 (0402 inch)
- Parameter： 1.5 - 150nH
- Rated Current： 110 - 1000mA
- Package： SMD
- Operating Temp： -40℃~+125℃
- Applications： Mobile phones, Bluetooth, communication equipment
- Parameters
- Brand： Sunlord
- Size/Package： 1005 (0402 inch)
- Parameter： 1.5 - 150nH
- Rated Current： 110 - 1000mA
- Package： SMD
- Operating Temp： -40℃~+125℃
- Applications： Mobile phones, Bluetooth, communication equipment
RF Wire-Wound Inductors | MWSD1005C-M01
Product Introduction
Sunlord MWSD1005C-M01 spans both CP and CH performance classes of the MWSD wire-wound ceramic RF inductor family in 0402. CP covers 1.0–82nH with up to 2300mA for power-leaning matching; CH adds 56–220nH for wider filtering — one P/N covers wireless modules, phones, wearables and IoT.
Core Advantages
- Dual CP/CH coverage: CP 1.0–82nH high-current + CH 56–220nH wide-value in one series.
- High Q 20–32: low-loss matching across consumer wireless bands.
- Up to 2300mA (CP): strong current for power-leaning RF circuits.
- SRF 0.96–16GHz: covers BT, WiFi, broadband and 5G Sub-6G matching.
- Precision tolerances: absolute and percentage grades for tight RF matching.
Key Specifications
| Parameter | Value |
|---|---|
| Type | High Frequency Circuits |
| Structure / Material | Precision wire-wound + ceramic core |
| Package Size | Metric 1005 |
| Operating Temperature | -40°C–+125°C |
| Inductance | CP series：1.0nH–82nH;CH series：56nH–220nH |
| Self-Resonant Frequency (SRF) | CP series：1750MHz–16000MHz; CH series：960MHz–2070MHz |
| Rated Current (Ir) | CP series：315mA–2300mA; CH series：160mA–330mA |
Cross Reference & Replacement
Cross-reference alternatives: Murata LQW (industry wire-wound standard), Coilcraft (US RF benchmark) and TDK (Japanese RF inductors). MWSD1005C-M01 matches their pads and HF characteristics.
Applications
wireless modules, BT, WiFi, broadband RF
phones, smartwatches, TWS earbuds
impedance matching, filtering, resonance, front-end matching
small transceiver modules, smart-home RF
FAQ
Q: What does M01 mean?
A: M01 is a MWSD variant P/N spanning the CP and CH performance classes — CP for high current, CH for wider inductance.
Q: What current can MWSD1005C-M01 carry?
A: CP class up to 2300mA; CH class 160–330mA with higher inductance values.
