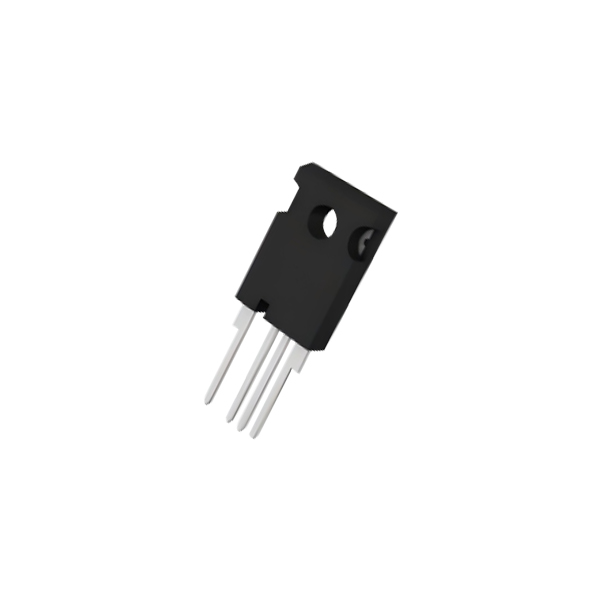

NCES120P040T4
Low RDS(ON), fast switching & Trr, for parallel/high power density
- Brand： NCE
- Size/Package： TO-247-4L
- Parameter： 1200V
- RDS(ON)@15V TYP： /
- RDS(ON)@18V TYP： 40mΩ
- VGS(th)： 3.2V
- ID： 65A
- Operating Temp： -55 - 175℃
- Applications： Solar Inverters, DC-DC Converters, Switching Power Supply, Motor Drive
- Parameters
- Brand： NCE
- Size/Package： TO-247-4L
- Parameter： 1200V
- RDS(ON)@15V TYP： /
- RDS(ON)@18V TYP： 40mΩ
- VGS(th)： 3.2V
- ID： 65A
- Operating Temp： -55 - 175℃
- Applications： Solar Inverters, DC-DC Converters, Switching Power Supply, Motor Drive
SiC MOSFETs | NCES120P040T4 1200V TO-247-4L
Product Introduction
NCES120P040T4 is a 1200V SiC MOSFET from NCE/新洁能 in TO-247-4L with Kelvin source, featuring 40mΩ RDS(on). The 1200V rating addresses high-voltage applications including solar string inverters, EV traction inverters, and industrial power supplies. TO-247-4L package with dedicated Kelvin source unleashes full SiC switching performance.
Core Advantages
- 1200V Rating: 40mΩ at 1200V — addresses high-voltage applications beyond typical 650V/750V SiC devices, enabling 800V battery systems and 1500V solar architectures.
- TO-247-4L Kelvin Source: Decouples power and gate loops for clean, fast switching with minimal ringing in high-voltage circuits.
- Near-Zero Qrr: SiC body diode eliminates reverse recovery tail — dramatically reduces turn-on losses in bridge topologies.
- 175°C Operation: Reliable at junction temperatures up to 175°C with simple gate drive.
Key Features
Applications
1500V PV systems, DC-DC boost, inverter bridges
800V battery systems, motor drives, OBC
High-voltage isolated converters
HV SMPS, welding, induction heating
HV servo, traction motors
HV battery systems, grid-tied storage
