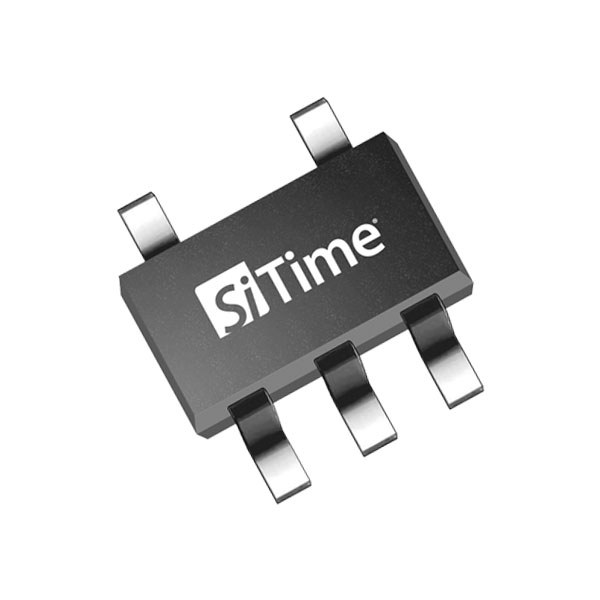

SIT2001

The SiT2001B is a SOT23 oscillator that offers the best board-level solder-joint reliability and enables low-cost, optical-ONLY board-level inspection. This device features the widest frequency range, the lowest power consumption, the best stability and the shortest lead time for consumer, networking, industrial and other applications.

For the same device in an SMD packages, refer to the SiT8008B oscillator.

Specifications

Features

Configurable feature sets

• Any frequency between 1 to 110 MHz with 6 decimal places of accuracy

• Stability from ±20 ppm to ±50 ppm

• Industrial or extended commercial temp.

• 1.8 V or 2.5 V to 3.3 V supply voltage:

• Customize specification for optimal system performance

• Use same base device for many design, reducing qualification needs;


SOT23 package

• Lowest cost package

• Best board-level solder joint reliability

• Easy optical only board-level inspection of solder joints;


FlexEdge™ drive strength

• Slower rise/fall time that minimizes EMI from the oscillator

• Saves cost by driving multiple loads and eliminate additional timing components;
