SIT2002

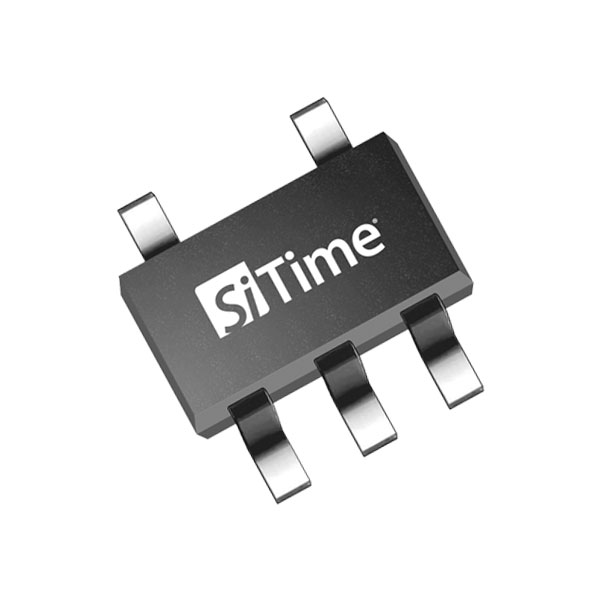

The SiT2002B is a SOT23 oscillator that offers the best board-level solder joint reliability and enables low-cost, optical-ONLY board-level inspection.  This device features uncompromising combination of low power consumption, excellent stability, flexible supply voltage and the shortest lead time for high-frequency applications.

For the same device in SMD packages, refer to the SiT8009B oscillator.

Specifications

Features

Configurable feature sets

• High frequency between 115 to 137 MHz

• Stability from ±20 ppm to ±50 ppm

• Industrial or extended commercial temp.

• 1.8 V or 2.5 V to 3.3 V supply voltage:

• Customize specification for optimal system performance

• Use same base device for many design, reducing qualification needs;


Small leaded SOT23 package

• Lowest cost package

• Best board-level solder joint reliability

• Easy optical only board-level inspection of solder joints;


Low power consumption

• 1.2 µA typical standby current (1.8 V)

• 3.6 mA typical active current (1.8 V):

• Extends battery life in portable applications

• Reduces power consumption for greener systems;


FlexEdge™ drive strength

• Slower rise/fall time that minimizes EMI from the oscillator

• Saves cost by driving multiple loads and eliminate additional timing components;
