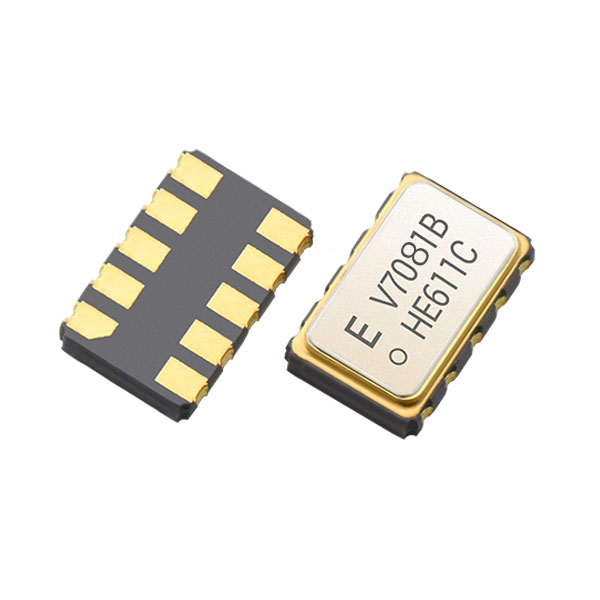

XV7081BB

The Epson XV7081BB is a cost-optimized single-axis quartz crystal gyroscope sensor designed for industrial applications that demand wide dynamic range and ultra-low noise without the premium price tag of flagship models. Built on Epson's proven quartz crystal Double-T structure — not silicon MEMS — the XV7081BB delivers the same ±400 °/s rate range and 0.0015 (°/s)/√Hz noise density as the top-tier XV7021BB, with only a slight relaxation in bias-over-temperature specifications (±3.0 °/s vs ±1.0 °/s) in exchange for a more accessible price point.

For engineers designing cost-sensitive industrial motion systems, HMI interfaces, and consumer-grade stabilization platforms, the XV7081BB represents the optimal balance of performance and cost — wide enough range to capture fast angular movements, quiet enough to resolve subtle motion, and priced to fit volume production budgets.

Key Positioning: The XV7081BB is the cost-performance champion in Epson's XV-series gyroscope lineup. It bridges the gap between the premium XV7021BB (best-in-class bias stability) and the budget XV7001BB (narrower range, higher noise). If your application needs ±400 °/s range + 0.0015 noise but can accept ±3.0 °/s bias drift, the XV7081BB saves you money without compromising dynamic performance.

When to Choose XV7081BB vs XV7021BB

The table below provides a transparent, side-by-side comparison of the two wide-range gyroscopes in Epson's XV-series. Use this to quickly determine which model fits your design requirements and budget.

Decision Guide:

Choose XV7081BB when: Your application needs wide ±400 °/s range and 0.0015 noise, but bias drift of ±3.0 °/s is acceptable. Ideal for cost-sensitive industrial motion, HMI, and consumer stabilization.

Choose XV7021BB when: Your application demands the tightest possible bias stability (±1.0 °/s) and lowest temperature coefficient. Ideal for precision navigation, high-end stabilization, and applications where bias drift directly impacts system accuracy.

Key Design Challenges Solved

Pain Point 1 — Cost-Sensitive Industrial Applications Need Wide Dynamic Range

Industrial automation, robotic arms, and HMI applications often require gyroscopes capable of capturing rapid angular movements exceeding ±300 °/s. However, wide-range gyroscopes with low noise typically command premium pricing, forcing engineers to either over-spec their BOM cost or compromise on range and risk sensor saturation during fast maneuvers.

✅ Solution: The XV7081BB delivers the same ±400 °/s rate range and 0.0015 (°/s)/√Hz noise density as the flagship XV7021BB at a more accessible price. Epson achieves this by allowing slightly relaxed bias-over-temperature specs (±3.0 °/s vs ±1.0 °/s), which has minimal impact on applications where fast dynamic response matters more than absolute bias precision. You get the full dynamic headroom without paying the flagship premium.

Pain Point 2 — Motion Detection and HMI Need Fast, Accurate Response

Gesture recognition, camera gimbal stabilization, and industrial HMI panels require gyroscopes that respond to both rapid flicks and subtle tilts within the same sensing window. Narrow-range sensors (±100 to ±300 °/s) clip during fast gestures, while noisy sensors blur fine angular resolution — both lead to poor user experience and system-level errors.

✅ Solution: The XV7081BB's ±400 °/s dynamic range captures fast angular movements without saturation, while its 0.0015 (°/s)/√Hz ultra-low noise floor — identical to the flagship XV7021BB — resolves the finest motion details through a single sensor. The 24-bit digital output (17,920 LSB/(°/s)) over SPI or I²C provides high-resolution angular data directly to your MCU, eliminating the need for external ADC stages and simplifying signal-chain design.

Pain Point 3 — Battery Life Constraints in Portable and Remote Deployments

Handheld inspection tools, drone gimbals, wearable motion trackers, and remote IoT sensors operate on battery power where every microamp counts. A gyroscope that consumes 3-5 mA in active mode can drain a small Li-Po battery within hours, limiting field deployment time and increasing maintenance costs for battery swaps or recharging.

✅ Solution: The XV7081BB features three distinct power modes optimized for battery-powered duty cycling: Active: 0.9 mA (full-performance sensing), Standby: 160 µA (fast wake-up, oscillator running), and Sleep: 3 µA (deep sleep, register retention). This graduated power architecture lets your firmware intelligently cycle between modes — waking from 3 µA sleep only when motion exceeds a threshold — enabling months-to-years of operation on a single coin cell or small Li-Po battery.

Pain Point 4 — Temperature Drift in Harsh Industrial Environments

Industrial environments subject sensors to wide temperature swings — from freezing cold starts at -20°C in outdoor enclosures to +80°C inside motor housings and machinery. Silicon MEMS gyroscopes suffer from significant bias drift across temperature due to the inherent thermal sensitivity of silicon microstructures, often requiring complex and power-hungry on-chip temperature compensation circuits that still leave residual drift.

✅ Solution: The XV7081BB is built on Epson's proprietary quartz crystal Double-T structure — fundamentally different from silicon MEMS. Quartz crystal exhibits inherently superior thermal stability due to its highly stable crystalline lattice and low temperature coefficient of elastic modulus. This translates to a bias temperature coefficient of just 0.0024 (°/s)/°C typical, which remains vastly superior to silicon MEMS alternatives in the same price class. Over the full -20 to +80°C operating range, the XV7081BB maintains predictable, repeatable bias behavior that your system can reliably compensate for.

Product Specifications

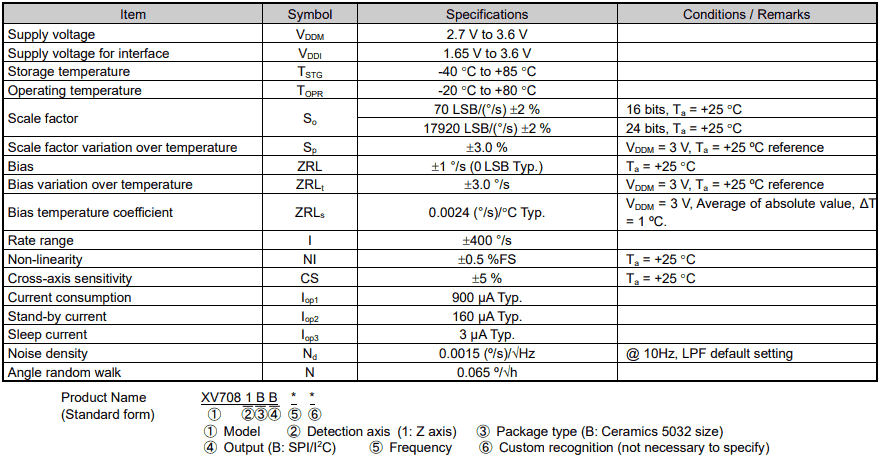

Specifications (characteristics)

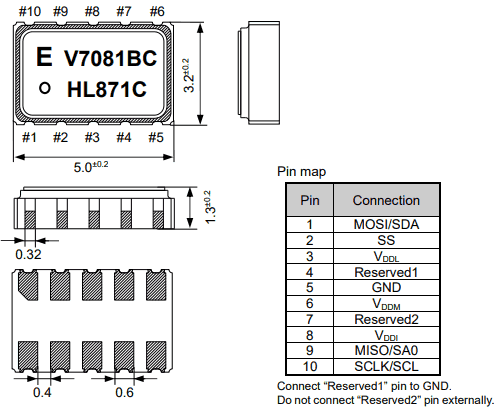

External Dimensions

(Unit: mm)

Footprint

(Unit: mm)

Key Advantages

1. Cost-Optimized Performance

The XV7081BB redefines value in the wide-range gyroscope segment. By offering ±400 °/s range + 0.0015 noise at a lower price point than the XV7021BB, it allows cost-conscious design teams to deploy high-performance angular sensing in mid-tier and volume products without compromising on the two specs that matter most for dynamic applications: range and noise. The slightly relaxed bias drift (±3.0 °/s) is a deliberate, transparent trade-off that has minimal real-world impact on applications primarily concerned with angular rate measurement rather than absolute angle integration over long durations.

2. Wide Dynamic Range with Ultra-Low Noise

Few gyroscopes in this price class combine a ±400 °/s full-scale range with 0.0015 (°/s)/√Hz noise density. This wide dynamic range means the XV7081BB can capture both high-speed rotations (industrial arms, drone maneuvers, fast HMI gestures) and subtle micro-movements (platform tilt, vibration monitoring) through the same sensor, eliminating the need for dual-sensor architectures. The 24-bit digital output with 17,920 LSB/(°/s) scale factor preserves fine angular resolution across the full ±400 °/s span.

3. Quartz Crystal Reliability Over Silicon MEMS

Epson's quartz crystal Double-T structure is a fundamentally different sensing technology from silicon MEMS. Quartz crystal offers inherently superior long-term stability, lower temperature hysteresis, and better vibration immunity due to its high Q-factor crystalline resonator. With a bias temperature coefficient of just 0.0024 (°/s)/°C, the XV7081BB outperforms silicon MEMS gyroscopes in its price tier, especially in environments with wide temperature fluctuations. This translates to more predictable sensor behavior, simpler temperature compensation algorithms, and higher system reliability over the product lifetime.

Target Applications

XV-Series Full Lineup

Epson's XV-series gyroscope family spans three models, each targeting a distinct performance tier. Use this comparison to understand where the XV7081BB sits in the broader lineup.

Lineup Summary: The XV7081BB occupies the strategic middle ground — it inherits the wide ±400 °/s range and 0.0015 noise from the flagship XV7021BB while offering significantly better dynamic performance than the entry-level XV7001BB (±100 °/s, 0.005 noise). For engineers who need the dynamic headroom but can accept moderate bias drift, the XV7081BB is the clear value choice.

About Epson

Seiko Epson Corporation is a global leader in precision quartz crystal sensing technology, leveraging decades of expertise in crystal oscillator manufacturing to produce gyroscope sensors with industry-leading stability and reliability. Unlike conventional silicon MEMS gyroscopes, Epson's sensors are built on a proprietary quartz crystal Double-T structure that delivers superior temperature characteristics, lower noise, and excellent long-term drift performance.

Epson's quartz gyroscope portfolio spans from cost-optimized single-axis sensors (XV7081BB) to high-precision models (XV7021BB) for industrial, automotive, and consumer applications. All sensors are manufactured in ISO/TS 16949-certified facilities with rigorous quality control, ensuring consistent performance in volume production.

Key Differentiator: Epson is one of the few manufacturers worldwide producing quartz crystal gyroscopes as opposed to silicon MEMS. This fundamental material advantage — rooted in quartz's stable crystalline lattice — gives Epson gyroscopes inherently better bias stability over temperature and longer operational lifetime compared to silicon-based alternatives in the same price category.
