Modern industrial automation depends on deterministic timing—the ability to guarantee precise synchronization between systems, machines, and processes. From robotic assembly lines to automated guided vehicles, timing precision determines productivity, quality, and safety. This article examines the synchronization requirements of industrial automation, the protocols enabling networked timing, and how SiTime's precision oscillators address the unique challenges of factory floor environments.

Deterministic systems produce predictable, repeatable timing behavior—the same input always produces the same output within defined tolerances. Unlike statistical systems where timing varies randomly, deterministic systems guarantee bounded latency and precise synchronization.

Automated Guided Vehicles (AGVs) and Autonomous Mobile Robots (AMRs) navigating dynamic warehouse and factory environments depend on precise GNSS-based positioning for safe, efficient operation. These systems face unique timing challenges:

IEEE 1588 PTP enables sub-microsecond synchronization across Ethernet networks without dedicated timing cables. The protocol achieves this through hardware timestamps, boundary clocks that compensate for forwarding delays, and the Best Master Clock Algorithm (BMCA) that automatically maintains synchronization.

TSN extends Ethernet with capabilities for time-critical applications:

The SiT5156's excellent Allan deviation at 10-second averaging directly matches PTP/TSN sync intervals, enabling tight synchronization during normal operation and minimal drift between synchronization corrections.

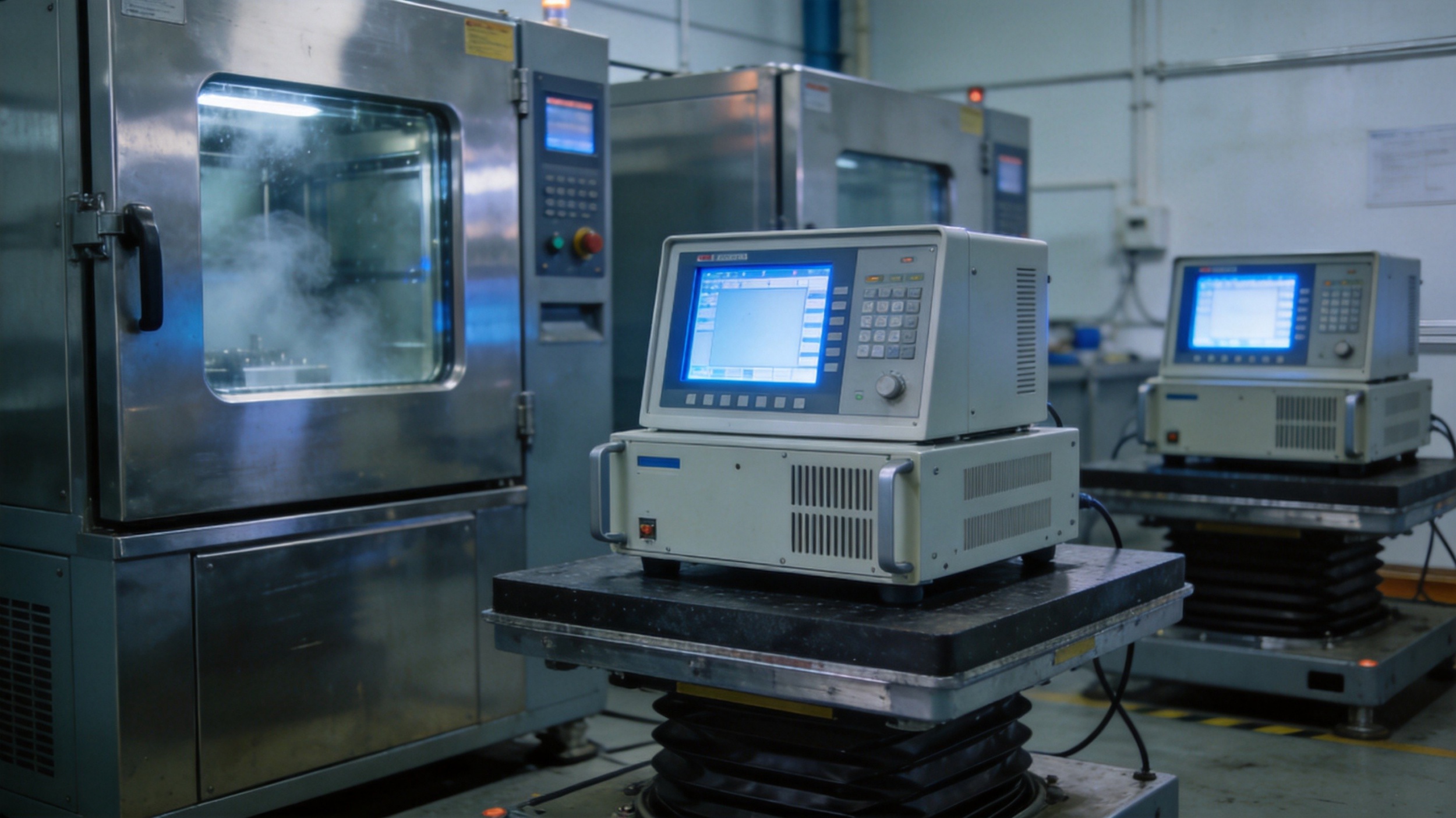

Factory floors subject timing equipment to demanding conditions that degrade conventional oscillators:

These oscillators replace quartz alternatives while providing 20× better reliability and 30× better shock resistance, reducing field failures in demanding industrial deployments.

Battery-powered sensors, edge computing nodes, and portable devices in industrial IoT deployments require ultra-low power timing solutions:

These µPower oscillators enable wireless sensor nodes, asset tracking tags, and portable industrial devices that operate for years on small batteries.

For AGV and Unmanned Ground Vehicle (UGV) subsystems requiring reliable general-purpose clocking, the SiT8924 AEC-Q100 oscillator provides automotive-grade performance:

The SiT8924's programmable drive strength enables EMI optimization, reducing radiated emissions that might interfere with other vehicle systems. Multiple package options (2.0×1.6 mm to 7.0×5.0 mm) support various integration requirements.

Industrial timing systems must operate reliably for years to decades:

Oscillators experience gradual frequency drift as crystal lattice stress relief stabilizes, internal component changes accumulate, thermal cycling effects compound, and power cycling creates stresses.

SiTime Super-TCXOs like the SiT5356 specify ±0.5 ppm one-year aging and ±3 ppm over 20 years, eliminating the need for field recalibration in long-lifecycle industrial applications.

A forklift-style AGV transporting pallets in a distribution center requires navigation accuracy despite mixed indoor/outdoor operation, thermal variations from battery charging, and vibration from warehouse floor conditions. The SiT5356 provides stable RTK tracking with holdover capability for brief GNSS outages, maintaining<2 cm positioning accuracy throughout 24/7 operations.

A programmable logic controller (PLC) coordinating robotic assembly cells requires sub-millisecond coordination across the production floor. The SiT5156 enables PTP synchronization with<1 µs accuracy despite thermal variations from equipment heating and HVAC cycling.

Motor drive systems experience significant vibration and EMI from high-power switching. The SiT9005 EMI reduction oscillator provides configurable spread spectrum clocking to meet EMC compliance, while the SiT8918 withstands the mechanical environment.

Wireless vibration sensors monitoring equipment health must operate for years on small batteries. The SiT1569 µPower oscillator enables multi-year battery life in a miniature package, while the SiT8918 handles industrial temperature extremes for wired sensors.

Deterministic timing forms the invisible backbone of industrial automation, enabling the coordinated, precise, and safe operation of modern manufacturing systems. Whether synchronizing robotic assembly lines with the SiT5156, guiding autonomous vehicles with the SiT5356/57, surviving harsh factory environments with the SiT8918/20, suppressing EMI with the SiT9005, powering edge sensors with the SiT1569, or clocking vehicle subsystems with the SiT8924—SiTime's comprehensive oscillator portfolio provides solutions for every industrial timing challenge.

As Industry 4.0 transforms production through interconnected intelligent machines, timing requirements grow more demanding. The right oscillator choice ensures that timing never becomes the limiting factor in system performance.
