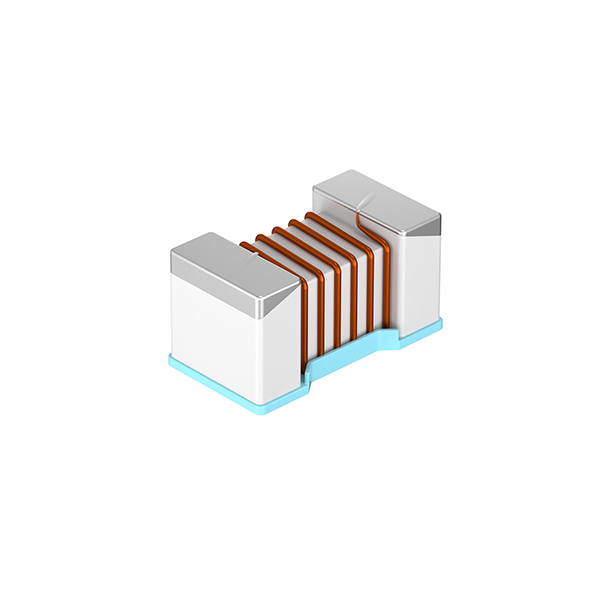

MWSD1608C-M01
Small chip suitable for surface mounting, High Q value and high self-resonant frequency with ceramic materia
- Brand： Sunlord
- Size/Package： 1608 (0603 inch)
- Parameter： 2.2 - 470nH
- Rated Current： 75 - 850mA
- Package： SMD
- Operating Temp： -40℃~+125℃
- Applications： Mobile phones, Bluetooth, communication equipment
- Parameters
- Brand： Sunlord
- Size/Package： 1608 (0603 inch)
- Parameter： 2.2 - 470nH
- Rated Current： 75 - 850mA
- Package： SMD
- Operating Temp： -40℃~+125℃
- Applications： Mobile phones, Bluetooth, communication equipment
RF Wire-Wound Inductors | MWSD1608C-M01
Product Introduction
Sunlord MWSD1608C-M01 is the precision-tolerance variant of the MWSD wire-wound ceramic RF inductor in 0603. G (±2%), H (±3%), J (±5%) and K (±10%) tolerance grades support tight high-current, high-Q RF matching in wireless equipment.
Core Advantages
- 4 tolerance grades: G ±2% / H ±3% / J ±5% / K ±10% for precise impedance matching.
- High Q & high current: Q up to 49 with 2100mA rated — big-current RF matching.
- 1.8–390nH range: wide RF values for filtering, matching and resonance.
- SRF up to 16GHz: covers BT, WiFi and 5G Sub-6G.
- SMT reflow ready: halogen-free, RoHS compliant.
Key Specifications
| Parameter | Value |
|---|---|
| Type | High Frequency Circuits |
| Structure / Material | Precision wire-wound + ceramic core |
| Package Size | Metric 1608 |
| Operating Temperature | -40°C–+125°C |
| Inductance | 1.8nH–390nH |
| Inductance Tolerance | G (±2%)、H (±3%)、J (±5%)、K (±10%) |
| Self-Resonant Frequency (SRF) | 880MHz–16000MHz |
| DC Resistance (DCR) | 0.33 Ω–4.770 Ω |
| Rated Current (Ir) | 170mA–2100mA |
Cross Reference & Replacement
Cross-reference alternatives: Murata LQW (industry wire-wound standard), Coilcraft (US RF benchmark) and TDK (Japanese RF inductors). MWSD1608C-M01 matches their pads and HF characteristics.
Applications
RF modules, front-ends with tight matching
phones, wearables RF circuits
impedance matching, HF filtering, resonance
FAQ
Q: What tolerance grades does MWSD1608C-M01 offer?
A: G (±2%), H (±3%), J (±5%) and K (±10%) — absolute and percentage grades for tight matching.
Q: What current can MWSD1608C-M01 carry?
A: 170–2100mA depending on inductance value.
