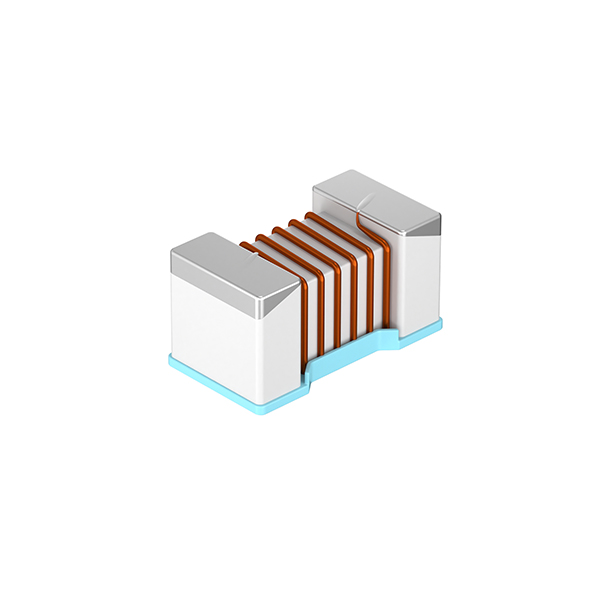

MWSD1005C-M11
Small chip suitable for surface mounting, High Q value and high self-resonant frequency with ceramic materia
- Brand： Sunlord
- Size/Package： 1005 (0402 inch)
- Parameter： 1.3 - 5.6nH
- Rated Current： 800 - 1500mA
- Package： SMD
- Operating Temp： -40℃~+125℃
- Applications： Mobile phones, Bluetooth, communication equipment
- Parameters
- Brand： Sunlord
- Size/Package： 1005 (0402 inch)
- Parameter： 1.3 - 5.6nH
- Rated Current： 800 - 1500mA
- Package： SMD
- Operating Temp： -40℃~+125℃
- Applications： Mobile phones, Bluetooth, communication equipment
RF Wire-Wound Inductors | MWSD1005C-M11
Product Introduction
Sunlord MWSD1005C-M11 is a dual-class CP/CH variant of the MWSD wire-wound ceramic RF inductor family in 0402. CP spans SRF 1750MHz–16GHz with DCR down to 0.03Ω for high-current matching; CH covers 960–2070MHz with larger values — tailored for compact wireless RF front-ends.
Core Advantages
- CP high-frequency class: SRF up to 16GHz for 5G Sub-6G and WiFi front-ends.
- CH wide-value class: 960–2070MHz with larger inductance for filtering.
- Low DCR from 0.03Ω (CP): efficient matching in power-leaning circuits.
- Precision winding + ceramic: high Q, low HF loss, stable SRF.
- Halogen-free RoHS: standard SMT reflow compatible.
Key Specifications
| Parameter | Value |
|---|---|
| Type | High Frequency Circuits |
| Structure / Material | Precision wire-wound + ceramic core |
| Package Size | Metric 1005 |
| Operating Temperature | -40°C–+125°C |
| Environmental Compliance | Halogen-free, RoHS compliant |
| Q Factor | CP series：20–32; CH series：29–32 |
| Self-Resonant Frequency (SRF) | CP series：1750MHz–16000MHz; CH series：960MHz–2070MHz |
| DC Resistance (DCR) | CP series：0.030 Ω–1.100 Ω; CH series：0.900 Ω–3.500 Ω |
| Rated Current (Ir) | CP series：315mA–2300mA; CH series：160mA–330mA |
Cross Reference & Replacement
Cross-reference alternatives: Murata LQW (industry wire-wound standard), Coilcraft (US RF benchmark) and TDK (Japanese RF inductors). MWSD1005C-M11 matches their pads and HF characteristics.
Applications
BT, WiFi, broadband RF circuits
phones, wearables, small device front-ends
impedance matching, HF filtering, resonance
FAQ
Q: What SRF does MWSD1005C-M11 reach?
A: CP class 1750MHz–16GHz; CH class 960–2070MHz depending on value.
Q: Is MWSD1005C-M11 halogen-free?
A: Yes — halogen-free materials, RoHS compliant, -40~+125°C.
