MWSD1005C-M8X
Small chip suitable for surface mounting, High Q value and high self-resonant frequency with ceramic materia
- Brand： Sunlord
- Size/Package： 1005 (0402 inch)
- Parameter： 1.3 - 75nH
- Rated Current： 320 - 3150mA
- Package： SMD
- Operating Temp： -40℃~+125℃
- Applications： Mobile phones, Bluetooth, communication equipment
- Parameters
- Brand： Sunlord
- Size/Package： 1005 (0402 inch)
- Parameter： 1.3 - 75nH
- Rated Current： 320 - 3150mA
- Package： SMD
- Operating Temp： -40℃~+125℃
- Applications： Mobile phones, Bluetooth, communication equipment
RF Wire-Wound Inductors | MWSD1005C-M8X
Product Introduction

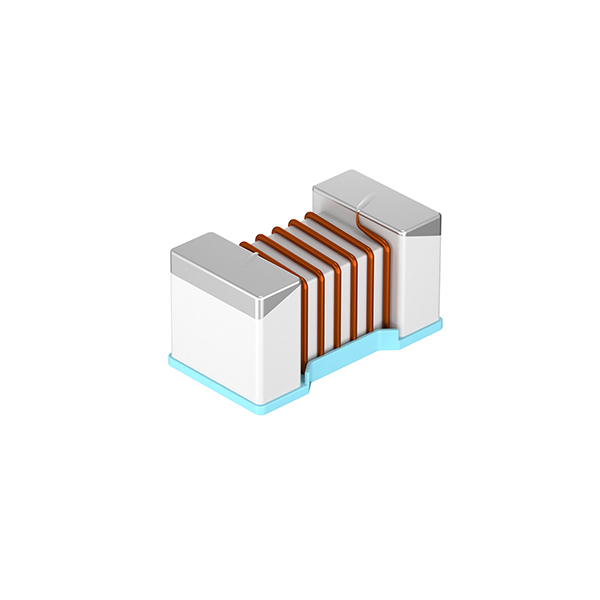

Sunlord MWSD1005C-M8X is the stable-HF variant of the MWSD wire-wound ceramic RF inductor family in 0402 (1.0×0.5mm). High Q (20–32), high SRF up to 16GHz, low DCR and big rated current deliver consistent high-frequency behavior for RF-class circuits in compact wireless designs.
Core Advantages
- Stable HF performance: high Q 20–32 with consistent SRF across the 1–220nH range.
- SRF up to 16GHz: covers BT, WiFi and 5G Sub-6G matching.
- Low DCR from 0.03Ω: up to 2300mA rated current for power-leaning RF.
- Single-side slim package: excellent thickness control for dense SMT.
- Halogen-free RoHS: -40~+125°C operation.
Key Specifications
| Parameter | Value |
|---|---|
| Type | High Frequency Circuits |
| Structure / Material | Precision wire-wound + ceramic core |
| Package Size | Metric 1005 |
| Operating Temperature | -40°C–+125°C |
| Environmental Compliance | Halogen-free, RoHS compliant |
| Inductance | 1nH–220nH |
| Q Factor | 20–32 |
| Self-Resonant Frequency (SRF) | 960MHz–16000MHz |
| DC Resistance (DCR) | 0.030 Ω–3.5 Ω |
| Rated Current (Ir) | 160mA–2300mA |
Cross Reference & Replacement
Cross-reference alternatives: Murata LQW (industry wire-wound standard), Coilcraft (US RF benchmark) and TDK (Japanese RF inductors). MWSD1005C-M8X matches their pads and HF characteristics.
Applications
BT, WiFi, broadband RF circuits
phones, wearables, RF front-ends
impedance matching, HF filtering, resonance
FAQ
Q: What makes M8X different from the base C series?
A: M8X is the stable-HF variant — same 1–220nH range and Q 20–32 with consistent SRF for RF-class circuits.
Q: What is the rated current of MWSD1005C-M8X?
A: 160–2300mA depending on inductance value.
