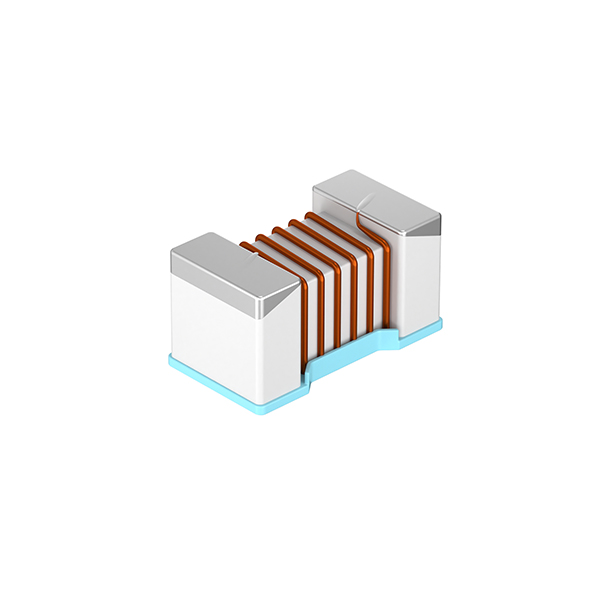

MWSD1608C-M11
Small chip suitable for surface mounting, High Q value and high self-resonant frequency with ceramic materia
- Brand： Sunlord
- Size/Package： 1608 (0603 inch)
- Parameter： 2.2 - 33nH
- Rated Current： 550 -1400mA
- Package： SMD
- Operating Temp： -40℃~+125℃
- Applications： Mobile phones, Bluetooth, communication equipment
- Parameters
- Brand： Sunlord
- Size/Package： 1608 (0603 inch)
- Parameter： 2.2 - 33nH
- Rated Current： 550 -1400mA
- Package： SMD
- Operating Temp： -40℃~+125℃
- Applications： Mobile phones, Bluetooth, communication equipment
RF Wire-Wound Inductors | MWSD1608C-M11
Product Introduction
Sunlord MWSD1608C-M11 is the focused 1.8–56nH variant of the MWSD wire-wound ceramic RF inductor family in 0603. Concentrating on low-value high-frequency matching with Q up to 49 and SRF to 16GHz, it suits compact wireless front-ends in phones, wearables and IoT.
Core Advantages
- Focused 1.8–56nH range: low-value matching optimized for GHz-band RF circuits.
- High Q 13–49: low HF loss in matching networks.
- SRF up to 16GHz: clean behavior across WiFi and 5G Sub-6G.
- Up to 2100mA: strong current in the 0603 class.
- Halogen-free RoHS: standard SMT reflow compatible.
Key Specifications
| Parameter | Value |
|---|---|
| Type | High Frequency Circuits |
| Structure / Material | Precision wire-wound + ceramic core |
| Package Size | Metric 1608 |
| Operating Temperature | -40°C–+125°C |
| Environmental Compliance | Halogen-free, RoHS compliant |
| Inductance | 1.8nH–56nH |
| Q Factor | 13–49 |
| Self-Resonant Frequency (SRF) | 880MHz–16000MHz |
| DC Resistance (DCR) | 0.033 Ω–4.770 Ω |
| Rated Current (Ir) | 170mA–2100mA |
Cross Reference & Replacement
Cross-reference alternatives: Murata LQW (industry wire-wound standard), Coilcraft (US RF benchmark) and TDK (Japanese RF inductors). MWSD1608C-M11 matches their pads and HF characteristics.
Applications
BT, WiFi, broadband RF circuits
phones, wearables, small-device front-ends
impedance matching, HF filtering, resonance
FAQ
Q: What range does MWSD1608C-M11 focus on?
A: 1.8–56nH — the low-value sweet spot for GHz-band matching circuits.
Q: Is MWSD1608C-M11 suitable for 5G Sub-6G?
A: Yes — SRF up to 16GHz with Q up to 49 covers Sub-6G front-end matching.
