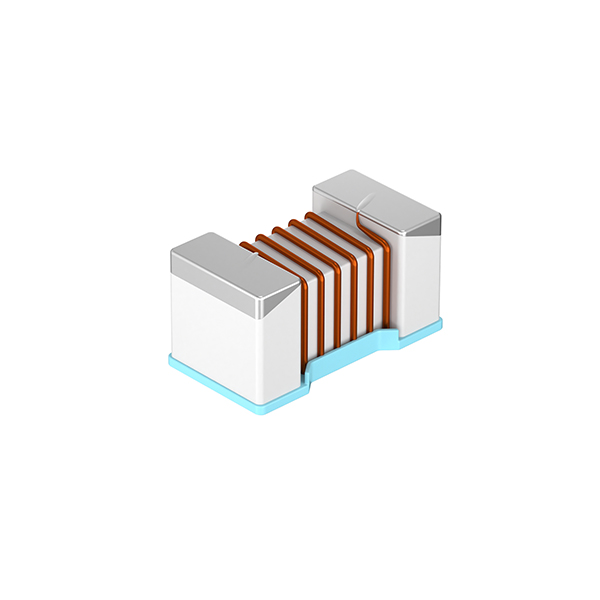

MWSD1608C-M8X
Small chip suitable for surface mounting, High Q value and high self-resonant frequency with ceramic materia
- Brand： Sunlord
- Size/Package： 1608 (0603 inch)
- Parameter： 2.2 - 390nH
- Rated Current： 190 - 3200mA
- Package： SMD
- Operating Temp： -40℃~+125℃
- Applications： Mobile phones, Bluetooth, communication equipment
- Parameters
- Brand： Sunlord
- Size/Package： 1608 (0603 inch)
- Parameter： 2.2 - 390nH
- Rated Current： 190 - 3200mA
- Package： SMD
- Operating Temp： -40℃~+125℃
- Applications： Mobile phones, Bluetooth, communication equipment
RF Wire-Wound Inductors | MWSD1608C-M8X
Product Introduction
Sunlord MWSD1608C-M8X is the stable-HF variant of the MWSD wire-wound ceramic RF inductor family in 0603. Q up to 49, SRF to 16GHz and DCR from 0.03Ω give consistent high-frequency behavior across 1.8–390nH for all kinds of RF circuits.
Core Advantages
- Stable HF across 1.8–390nH: consistent Q and SRF for predictable matching.
- High Q 13–49: low HF loss in matching networks.
- SRF up to 16GHz: covers BT, WiFi and 5G Sub-6G bands.
- Low DCR from 0.03Ω: up to 2100mA rated for power-leaning RF.
- Halogen-free RoHS: -40~+125°C operation.
Key Specifications
| Parameter | Value |
|---|---|
| Type | High Frequency Circuits |
| Structure / Material | Precision wire-wound + ceramic core |
| Package Size | Metric 1608 |
| Operating Temperature | -40°C–+125°C |
| Environmental Compliance | Halogen-free, RoHS compliant |
| Inductance | 1.8nH–390nH |
| Q Factor | 13–49 |
| Self-Resonant Frequency (SRF) | 880MHz–16000MHz |
| DC Resistance (DCR) | 0.030 Ω–4.770 Ω |
| Rated Current (Ir) | 170mA–2100mA |
Cross Reference & Replacement
Cross-reference alternatives: Murata LQW (industry wire-wound standard), Coilcraft (US RF benchmark) and TDK (Japanese RF inductors). MWSD1608C-M8X matches their pads and HF characteristics.
Applications
BT, WiFi, broadband RF circuits
phones, wearables, front-ends
impedance matching, HF filtering, resonance
FAQ
Q: What does M8X offer in the 1608 size?
A: Stable high-frequency behavior: Q up to 49, SRF to 16GHz and DCR from 0.03Ω across 1.8–390nH.
Q: What current can MWSD1608C-M8X carry?
A: 170–2100mA depending on inductance value.
