Title: The Mystery of 5G Signal Disruptions Caused by Rain

In 2020, a city experienced frequent 5G base station signal outages, with engineers troubleshooting for months without success. During a heavy rainstorm, they discovered the internal temperature of a base station plummeted by 10°C, causing a frequency drift of 500 ppb in its core timing module—equivalent to a daily error accumulation of nearly 4 seconds! Traditional quartz oscillators couldn’t handle such drastic temperature swings. This discovery pushed the industry toward more stable MEMS technology and revealed a complex truth about timing stability: it’s not just a technical metric but a battle between environmental factors and design.

8 Critical Factors & Engineers’ Real-World Stories

1. Frequency-Temperature Stability

This specification is a banner metric for precision oscillators, as their output frequency is significantly affected by temperature. It describes how the output frequency varies within a specified ambient temperature range over the device’s lifecycle, including thermal hysteresis effects.

2. Thermal Hysteresis
Thermal hysteresis refers to the maximum difference between two measurements: the frequency when temperature rises from the bottom to the top of the specified range versus when it falls from the top to the bottom. When plotted, the two curves form an 'eye' shape. Typically, the maximum vertical gap between the curves (the 'height' of the eye) is specified. Achievable stability cannot be better than the hysteresis, making it a limiting factor for overall stability.

3. Frequency-Temperature Slope (dF/dT)
This defines how the output frequency changes in response to temperature fluctuations. Also called the frequency-temperature slope (dF/dT), it is measured in ppb/°C. Temperature ramp rates are usually 0.5°C/min or 1°C/min, but systems deployed in harsh environments may experience rates as high as 5°C/min.

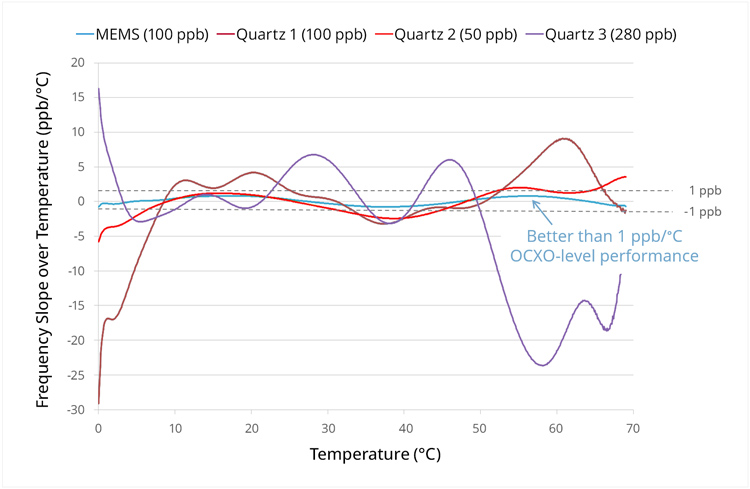

Figure 1. Comparison of dF/dT performance between a MEMS TCXO and three equivalent quartz TCXOs. The quartz TCXOs’ performance is unrelated to their rated frequency-temperature specifications.

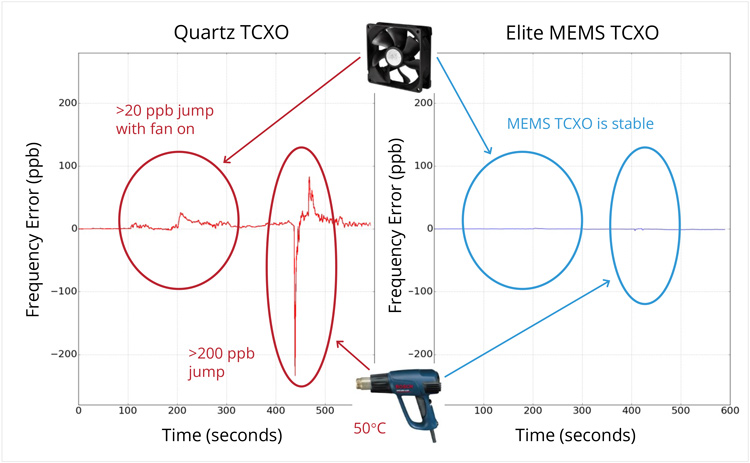

Figure 2. Frequency error versus dF/dT performance for a MEMS TCXO and three quartz TCXOs.

Figure 1 illustrates the varied TCXO performance in the open market, highlighting that an oscillator’s banner frequency-temperature stability does not necessarily correlate with its dF/dT slope. Figure 2 demonstrates the impact of poor dF/dT under environmental stressors like rapid temperature transients.

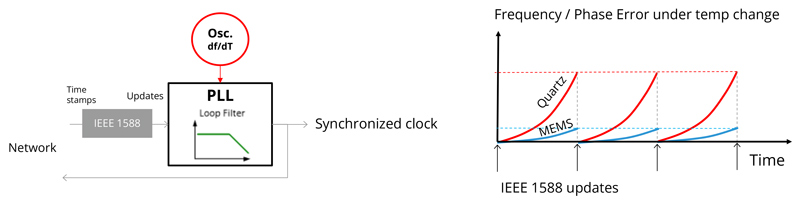

Figure 3. Lower dF/dT enables tighter phase synchronization in IEEE 1588 applications, as dF/dT can be a dominant noise source in such systems.

For applications where oscillators synchronize to an upstream master (e.g., using the IEEE 1588 protocol), the frequency-temperature slope (dF/dT) is far more critical than static frequency-temperature stability. See Figure 3. Systems sensitive to dF/dT must prioritize this specification over static stability metrics.

4. Initial Tolerance
This quantifies the oscillator’s initial frequency accuracy relative to its target frequency at a given temperature (typically 25°C), specified in ppm. High-precision systems can minimize initial tolerance by calibrating oscillators against precise references during production. Periodic recalibration may also be required to address aging effects that push systems out of spec.

5. Aging
Aging quantifies how the output frequency drifts over time when external factors (e.g., ambient temperature, supply voltage) remain constant. This specification is typically defined over 1 day, 1 year, 10 years, and 20 years.

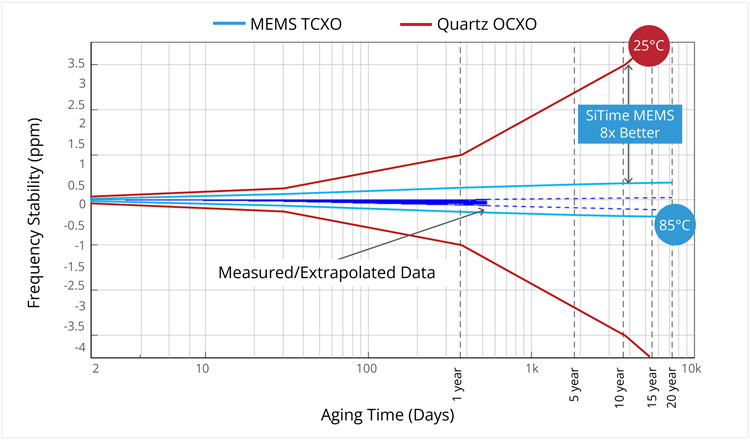

Figure 4. Aging comparison between a MEMS TCXO and equivalent quartz TCXO. The MEMS TCXO achieves 8x better stability over 20 years at 85°C.

6. Voltage Sensitivity
This describes how the oscillator’s output frequency varies with its supply voltage. Using a regulated power supply minimizes voltage-induced variations. Integrating voltage regulation into the oscillator package enhances robustness in noisy board environments and eliminates the need for external regulation, saving system space.

7. Load Sensitivity
Another factor influenced by electrical conditions, load sensitivity measures how the oscillator’s output frequency shifts with changes in the capacitive load (CL) observed by the resonator. Expressed in ppm or ppb for a specified picofarad (pF) capacitance, this effect is critical in precision timing systems.

8. Vibration Sensitivity (G-Sensitivity)
G-sensitivity (where G is gravitational acceleration) defines how the output frequency shifts under mechanical acceleration. Since acceleration can occur along any combination of three axes, the root-sum-square (RSS) of each axis’s sensitivity gives the total G-sensitivity (Gamma vector), expressed in ppb/g. See Figure 5. This metric is vital for mission-critical systems in aerospace and defense, where oscillators face high G-forces from jet or rocket propulsion.

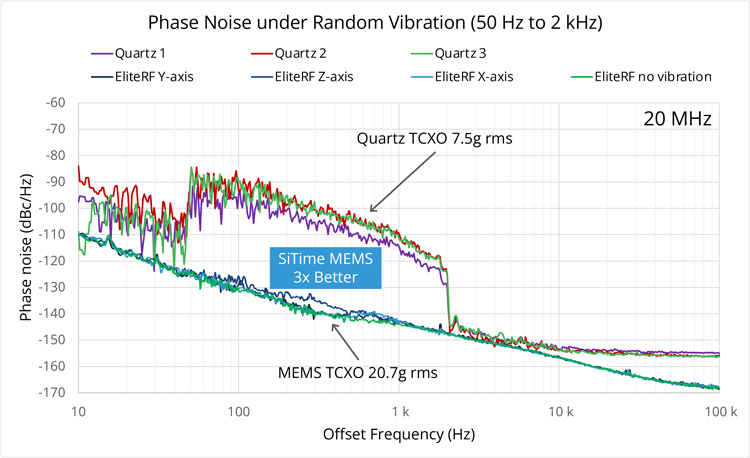

Figure 5. Phase noise comparison between a MEMS TCXO and three quartz TCXOs under random vibrations across axes. The MEMS TCXO maintains stable phase noise.

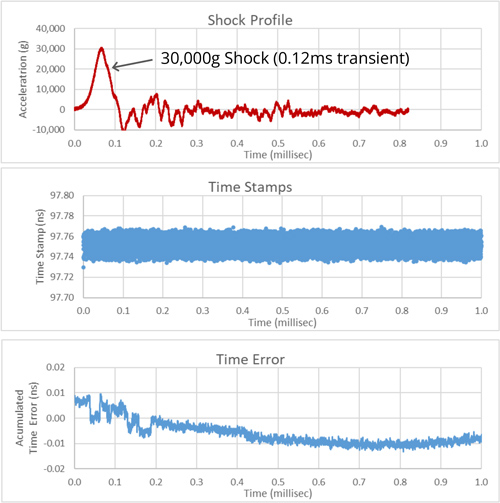

Figure 6. A MEMS TCXO remains fully operational under 30,000 G shock testing. Timestamp measurements during the shock show cumulative time errors below 10 ps
