Hello everyone! Today, we’re diving into a technical yet highly relevant topic that impacts our daily lives—the 'heart' of optical modules: SITIME differential oscillators.

You might not realize it, but activities like streaming videos, watching live broadcasts, or using cloud services rely heavily on the efficient operation of optical modules. Among these, SITIME differential oscillators play a critical role in ensuring stable performance. Let’s explore how this 'unsung hero' powers optical modules.

I. The 'Heart' of Optical Modules: Why SITIME Differential Oscillators Matter

Optical modules, which convert optical signals to electrical signals (and vice versa), are widely used in data centers, cloud computing, and 5G communication. Differential oscillators are indispensable components, providing high-precision clock signals to ensure stable high-speed data transmission.

With the rapid growth of cloud computing, AI, and 5G technologies, the demand for optical modules continues to surge. According to market research, the global optical module market is projected to reach $12.1 billion by 2025. SITIME differential oscillators, as core components, are pivotal to this growth.

So, what makes SITIME differential oscillators stand out? Let’s break it down.

2. Core Advantages of SITIME Differential Oscillators: Ultra-Low Jitter & Miniaturization

Ultra-Low Jitter: The Guardian of Stability
Clock signal stability directly impacts data accuracy and speed in optical modules. SITIME differential oscillators excel with ultra-low jitter performance, ensuring reliable operation

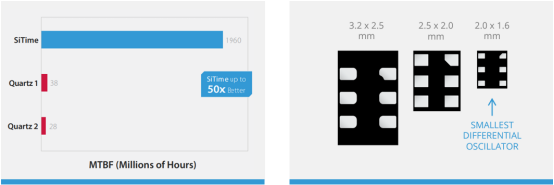

[2016 ultra-compact differential design, jitter as low as 70 fs, MTBF tests show SITIME outperforms competitors by 50x]

For example, the SIT9501 model boasts a jitter level of 70 fs (femtoseconds), among the best in the market. Lower jitter reduces bit error rates and enhances communication quality. Additionally, SITIME oscillators support multiple standard frequencies (e.g., 14 frequencies for SIT9501), offering flexibility for diverse optical module designs.

Miniaturization: Slimming Down Optical Modules
As optical modules evolve toward higher speeds and density, PCB space optimization becomes critical. SITIME’s compact designs enable efficient space utilization.

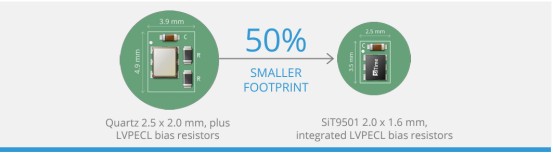

[Miniaturization: 50% smaller PCB footprint compared to quartz-based solutions]

Take the SIT9375 model, available in 2016, 2520, and 3225 package sizes. These designs save 50% PCB space versus traditional oscillators, enabling higher integration and supporting next-gen high-speed modules (e.g., 800G/400G).

3. Powering 800G/400G Optical Modules

The rise of 800G/400G modules demands high-frequency clock signals. SITIME oscillators deliver ultra-low phase noise and high precision, making them ideal for these applications.

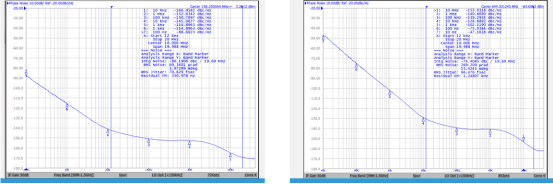

[Phase noise performance at 156.25 MHz and 644.53125 MHz]

Models like SIT9365/SIT9366/SIT9367 offer jitter levels of 230 fs and cover frequencies from 1 MHz to 725 MHz. They support QSFP-DD, QSFP28, OSFP, and QSFP packaging, aligning with high-speed module requirements.

Example: Replacing a standard oscillator with SITIME’s solution reduced bit error rates from 10⁻¹² to 10⁻¹⁵. Engineers note: “At 644 MHz—the critical threshold for 800G modules—every 1 dB reduction in phase noise extends transmission distance by 10 km.” This translates to 15% fewer undersea repeater stations and billions saved in costs.

4. Green Energy Efficiency: Another Highlight

‍

Amid global carbon neutrality goals, SITIME differential oscillators contribute to energy savings. Their FlexSwing™ technology reduces power consumption by 30% compared to traditional LVPECL outputs.

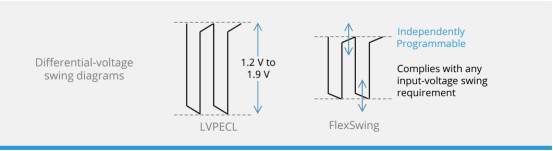

[Low Power: FlexSwing™ saves 30% energy vs. LVPECL]

This efficiency lowers operational costs and supports greener data centers, positioning SITIME as a key enabler of sustainable optical modules.

5. Future Outlook: Expanding Possibilities

From ultra-low jitter to miniaturization, high-frequency support, and energy efficiency, SITIME differential oscillators are poised to drive advancements in optical modules. Future directions include:

Higher Speeds: Supporting next-gen 800G/400G+ modules with stable clock signals.

Optimized Packaging: Further miniaturization and integration for high-density designs.

Green Innovation: Expanding FlexSwing™ applications for eco-friendly modules.
