As Industry 4.0 transforms manufacturing landscapes, industrial Human Machine Interface (HMI) systems have evolved into intelligent terminals integrating real-time monitoring, comprehensive data traceability, and remote maintenance capabilities. From production line status tracking to precise fault alarm timestamps and end-to-end verifiable audit trails, the accuracy and continuity of time reference fundamentally determine HMI system reliability and data credibility.

Facing the harsh industrial challenges of -40°C to +85°C wide temperature ranges, strong electromagnetic interference, and continuous 24/7 operation, conventional RTC timing solutions often struggle with significant temperature drift and data loss during power interruptions. YXC addresses these challenges with the YSN8900 series high-precision RTC module, featuring built-in TCXO temperature compensation technology, ultra-low power consumption, and comprehensive power management functions to establish a new generation of precise and reliable timing references for industrial HMI applications.

YSN8900 series (plastic encapsulation)	YSN8900 series (metal package)

1. Integrated TCXO Technology: ±3.4ppm Ultra-High Precision Across Temperature Range

Unlike traditional RTC chip plus external crystal combinations, YSN8900 series integrates a 32.768kHz temperature compensated crystal oscillator (TCXO) with RTC control circuitry into a compact 3.2×2.5×1.0mm LGA package. Through built-in high-precision temperature sensors that continuously monitor environmental conditions and adjust frequency accordingly, the module ensures frequency stability reaches ±3.4ppm across the entire operating range of -40°C to +85°C.

Application Value: Daily time deviation is approximately only 0.3 seconds, with annual cumulative error under 2 minutes. For HMI systems requiring 24/7 continuous operation, YSN8900 ensures long-term accuracy for production logs, operational records, and fault timestamps, perfectly meeting stringent data traceability requirements.

2. Intelligent Power Management: Zero Data Loss Guarantee

Power outages and voltage fluctuations in industrial environments pose the greatest threat to data security. YSN8900 incorporates automatic backup power switching circuitry, supporting seamless transitions between main power and backup battery/supercapacitor sources.

Application Value: HMI master MCUs can obtain real-time voltage status through I²C interfaces, enabling proactive storage of critical data before battery depletion or triggering maintenance alerts. This completely eliminates 'time black holes' and log gaps caused by power interruptions.

3. Ultra-Low Power Design: Extended Equipment Operation

In backup battery-only mode, YSN8900 typical operating current is as low as 0.55μA at 3.0V, enabling theoretical standby times exceeding 10 years when paired with appropriate battery solutions.

Application Value: For HMI equipment deployed in remote sites, outdoor equipment cabinets, and other locations with limited maintenance access, YSN8900 significantly reduces total lifecycle maintenance costs.

Figure 2: Industrial HMI Monitoring Screen Application Scenario

YSN8900 Core Value in Industrial HMI Applications

• Precise Production Data Traceability: In automotive components and electronics manufacturing lines, YSN8900 ensures each production process operation is tagged with precise timestamps, meeting time consistency requirements for IATF 16949 and other quality system audits.
• Fault Alarm Time Synchronization: As a local high-precision time source for distributed HMI nodes, YSN8900 ensures network-wide event recording errors are controlled within millisecond levels, facilitating rapid fault root cause identification and minimizing downtime.
• Compliance-Driven Log Storage: In pharmaceutical, food, and other regulated industries, HMI systems utilize YSN8900 series VLF/VDET flags to monitor clock status in real-time, preventing log time confusion caused by clock failure and avoiding regulatory compliance risks.

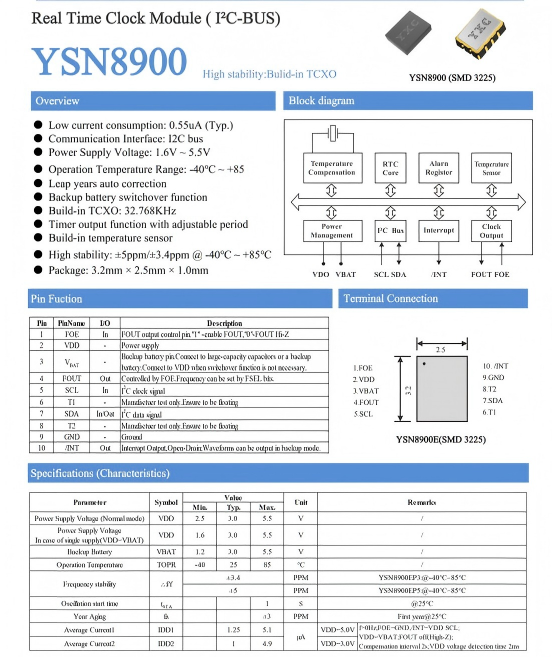

Technical Specifications

• Supply Voltage: 1.6V~5.5V (normal mode), 1.2V~5.5V (backup battery mode)
• Operating Temperature: -40°C to +85°C
• Frequency Stability: ±3.4ppm (YSN8900EP3), +5ppm (YSN8900EP5) @ -40°C to +85°C
• Power Consumption: 0.55μA (typical) @ 3.0V in backup mode
• Package: 3.2mm × 2.5mm × 1.0mm LGA
• Communication Interface: I²C bus
• Built-in Functions: Temperature sensor, backup power switching, automatic leap year correction, adjustable periodic timer output


Conclusion

As a deep player in the clock frequency device industry, we remain committed to technological innovation and value creation, providing high-precision, highly reliable timing solutions for industrial HMI manufacturers and empowering industrial intelligent transformation. YXC YSN8900 ultra-high precision RTC continues to set new benchmarks for high-reliability industrial HMI timing through core advantages including ultra-high precision and ultra-low power consumption.
