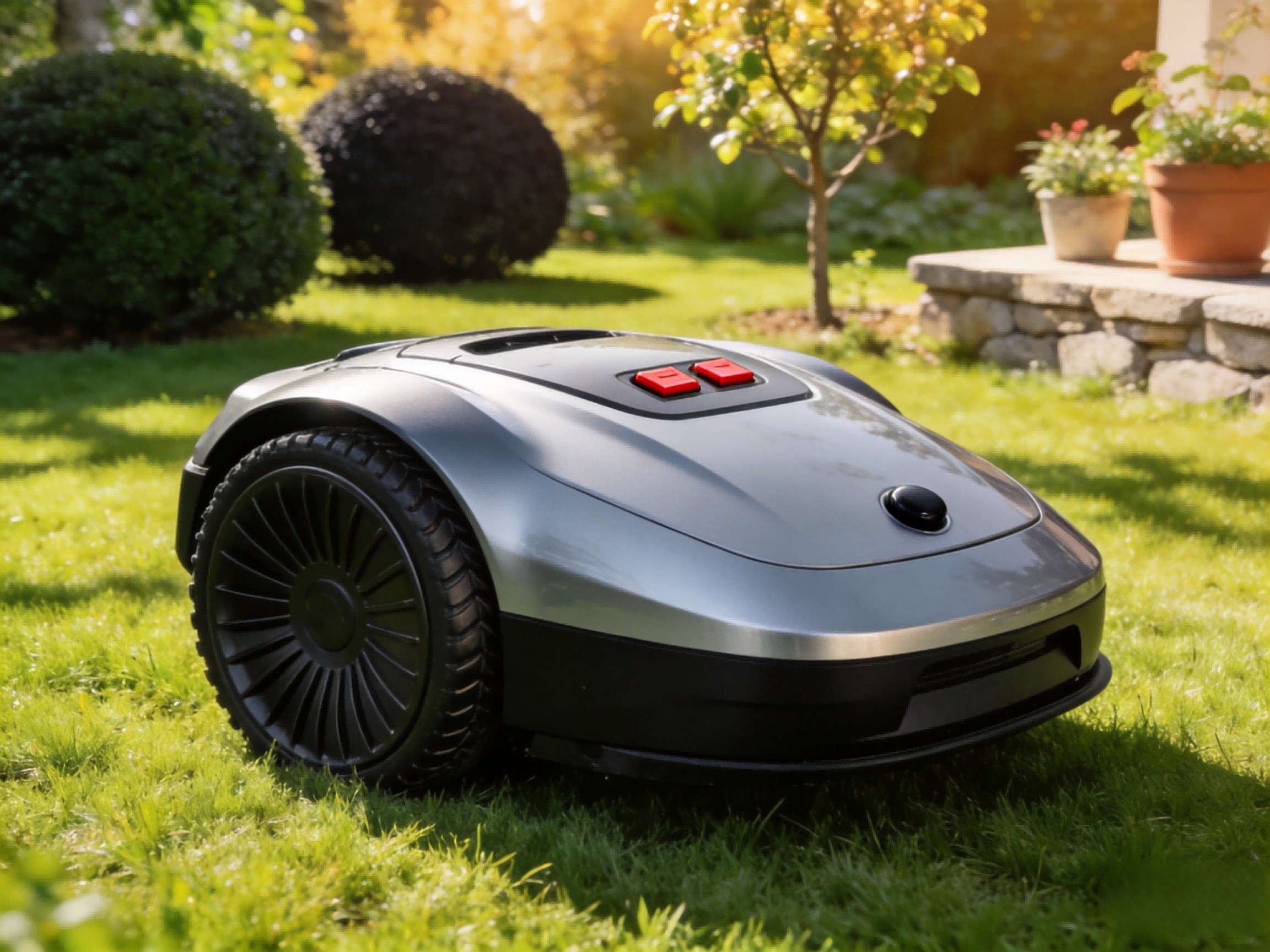

As courtyard intelligence continues to advance, lawn mowing robots have evolved from basic random-bump mowing into high-end smart devices featuring global path planning, multi-sensor coordination, and sophisticated battery management. Scheduled mowing operations and BMS battery run-log recording both demand a high-precision, high-reliability Real-Time Clock (RTC) chip to provide an accurate time reference.

Designed for the harsh outdoor environments and long-endurance demands of lawn mowing robots, YXC (Yangxing Technology) introduces the YSN8130 series — a highly integrated, ultra-low-power RTC chip that delivers a stable and reliable clock timing solution for smart outdoor equipment.

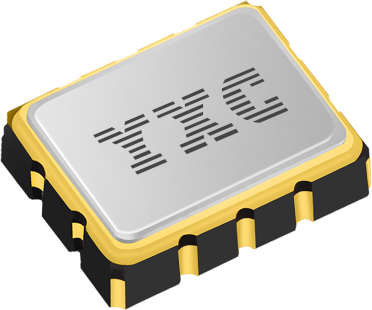

YSN8130 RTC chip — providing precise timekeeping for smart lawn mowing robots in outdoor environments.

YSN8130 Core Parameters at a Glance

Core Pain Points of Lawn Mowing Robots & YSN8130 Solutions

Pain Point 1: Wide Outdoor Temperature Variations Cause Clock Drift

Lawn mowing robots operate outdoors year-round, enduring significant day-night and seasonal temperature swings. Conventional external-crystal RTC chips are highly susceptible to frequency temperature drift, leading to noticeable errors in scheduled mowing times and log timestamps — making it impossible to execute pre-set task plans with precision.

YSN8130 Solution

• Built-in 32.768 kHz crystal: Eliminates the root causes of external crystal mismatch, soldering deviation, and temperature-drift sensitivity — dramatically improving clock stability across the full temperature range.
• Digital Offset calibration: Features a simple Digital Offset function that allows engineers to perform high-precision fine timing corrections on demand, ensuring timekeeping accuracy across the entire operating temperature range.

Pain Point 2: High Standby Power Consumption Drains Battery Life

Lawn mowing robots spend a large proportion of time in standby or sleep mode (e.g., at night or during winter). Reducing standby power consumption is the key to extending battery endurance.

YSN8130 Solution

• 0.9 µA ultra-low standby current: At 3.3 V supply voltage, the YSN8130's typical standby current is only 0.9 µA — far outperforming conventional external-crystal low-power RTC solutions.
• Programmable timer wake-up: Built-in programmable timer supports multi-cycle timed interrupt output (1 s, 1 min, 1 h, etc.). The main MCU can enter deep sleep entirely, relying solely on the YSN8130's periodic interrupt to wake the controller and execute system tasks — significantly extending battery life.

Pain Point 3: Time Information Lost After Main Power Failure

When a lawn mowing robot undergoes battery replacement or experiences an unexpected power loss, the RTC must continue keeping time — otherwise, the system clock resets, causing scheduled tasks to fail and log timestamps to become garbled.

YSN8130 Solution

• Automatic VDD/VBAT power switching: Supports seamless auto-switching between VDD main power and VBAT backup battery — time is never lost during a power outage. When main power is disconnected, the chip instantly switches to the backup battery and continues maintaining the internal clock. Upon power restoration, the MCU can directly read the accurate time without any re-configuration.

Pain Point 4: Limited PCB Space & Humidity Challenges for Exposed Crystals

A lawn mowing robot integrates motor drive, navigation, BMS, and other modules — leaving very little PCB area for the clock circuit. At the same time, external crystals and load capacitors are vulnerable to moisture in damp outdoor environments, potentially causing oscillation stop or frequency deviation.

YSN8130 Solution

• High integration: Integrates the 32.768 kHz crystal and RTC timing circuit inside the chip — no external crystal required.
• 3225 SMD metal package: Compact dimensions of only 3.2 mm × 2.5 mm × 1.0 mm effectively save PCB space. The metal-sealed structure fundamentally resolves reliability issues such as moisture susceptibility and poor vibration resistance.

Pain Point 5: Complex & Flexible Scheduled Task Management

Next-generation smart lawn mowing robots need to support multiple scheduling modes — one-time timers, daily loops, weekly segmented plans — placing high demands on RTC scheduling flexibility and independent operation capability.

YSN8130 Solution

• Rich alarm & timer functions: Provides two interrupt output modes — Alarm and Timer. The Alarm supports precise triggering at a specific time on a specific day of the week; the Timer supports periodic triggering from 1 second to 1 hour. These functions are executed entirely by the RTC independently, without MCU participation in timing — offering flexible scheduling at lower power consumption.

Precise timing is the core enabler for task scheduling, navigation, and safety management in smart lawn mowing robots. YXC's YSN8130, with its high reliability, ultra-low power consumption, and compact form factor, is fully optimized for outdoor robotic equipment timing applications. For more information on RTC chips and 32.768 kHz crystal solutions, visit YQM.
