NCE90N800F is a 4th-generation 900V super-junction (SJ) MOSFET from NCE Power (Wuxi NCE Power Semiconductor, NCE Power), engineered for high-voltage power stages that have long relied on Infineon CoolMOS parts such as the IPW90R800C3. With a Gen-4 SJ platform, an NF fast-recovery body diode, and a TO-220F full-pack option, it is a practical, cost-effective CoolMOS replacement for solar micro inverters, PV inverters, and high-voltage auxiliary power supplies.

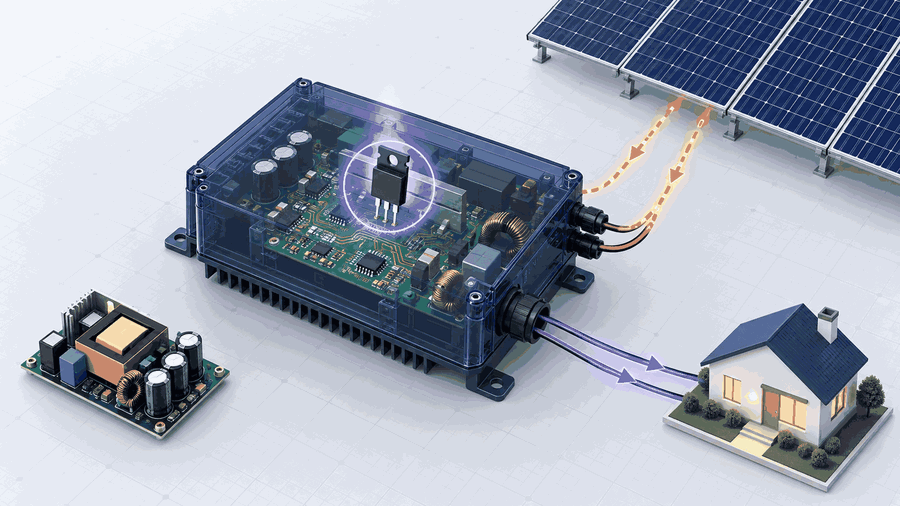

Figure 1: NCE90N800F target applications.

1. Why Teams Are Re-Evaluating 900V SJ MOSFET Sourcing

Three pressures are pushing designers away from single-source 900V SJ MOSFET habits: cost (mature 900V CoolMOS C3-generation parts carry a price premium), lead time (long allocation cycles on high-voltage discretes), and design churn (bridge/LLC topologies now demand fast body-diode recovery, which older C3 parts were never optimized for). A pin- and spec-comparable 900V super junction MOSFET with Gen-4 technology answers all three at once.

2. NCE90N800F vs CoolMOS IPW90R800C3: Spec Comparison

The table below compares the key parameters designers check first when qualifying a IPW90R800C3 alternative. Values marked 'typ.' are typical values from vendor datasheets — always confirm final numbers against the latest official datasheets for your specific lot and application.

3. What Makes the NCE90N800F a Strong Replacement Candidate

• Fast-recovery NF body diode: the 'N' in the part number marks the NF fast-recovery series — reduced T_rr and Q_rr cut reverse-recovery losses in LLC and bridge topologies, exactly where a standard CoolMOS body diode struggles.
• Gen-4 SJ platform: NCE's 4th-gen super-junction process improves power density; per NCE's Gen-4 materials, the series shows ~16% lower high-temperature R_DS(on) growth versus Gen-3 and a ~25% better FOM (R_DS(on) × Q_g).
• TO-220F insulated full-pack: simplifies mounting and heatsink isolation in compact micro inverter and auxiliary-power designs.
• Cost and lead time: a domestic Gen-4 supply chain typically means a meaningful price gap and shorter allocation versus mature imported SJ parts.

4. Compatibility Notes: What to Check Before Switching

Packages differ — TO-220F vs TO-247 is not pin-for-pin. The NCE90N800F uses an insulated TO-220F full-pack, while the IPW90R800C3 uses TO-247 (the DPAK version is IPD90R800C3). For existing board layouts, verify footprint and thermal performance. For new designs, the comparison is spec-level: same 900V class, same R_DS(on) class, comparable current rating — with the NF body diode as an upgrade for resonant/bridge stages.

• Step 1: confirm V_DS, R_DS(on), I_D and gate drive (V_GS) margins against your worst-case operating point.
• Step 2: compare switching losses at your actual f_sw — the NF body diode changes reverse-recovery behavior in bridge legs.
• Step 3: validate thermals on your heatsink/full-pack mounting, then request samples for bench qualification.

5. Where the NCE90N800F Fits: Application Map

6. FAQ

Q: Is the NCE90N800F a direct drop-in replacement for the CoolMOS IPW90R800C3?

A: Spec-level yes (900V / 0.8Ω class), package-level no — it ships in TO-220F full-pack, not TO-247. For new designs it is a drop-in selection; for existing boards, check footprint and thermal performance first.

Q: What does the 'NF' in NCE90N800F mean?

A: NF marks NCE's fast-recovery series — the body diode has optimized reverse-recovery time (T_rr) and charge (Q_rr) for LLC and bridge topologies.

Q: Can it handle solar micro inverter switching frequencies?

A: It targets typical micro inverter and auxiliary-power switching ranges; confirm gate charge, switching losses and thermals at your specific f_sw with the datasheet and bench tests.

Q: How do I get samples and pricing?

A: Contact Yuanqimao Electronics through the channels below — we supply NCE power devices with datasheets, samples, and competitive quotations.
