Next-Generation Frequency Benchmark: Epson TSX-3225C Crystal Series Now Available

In precision electronics and communications, frequency stability often defines the upper limit of system performance. Epson Timing, a global leader in frequency control components, has officially launched the next-generation crystal oscillator solution — the TSX-3225C series, succeeding the widely adopted FA-238 series and setting a new benchmark for high-frequency stability applications.

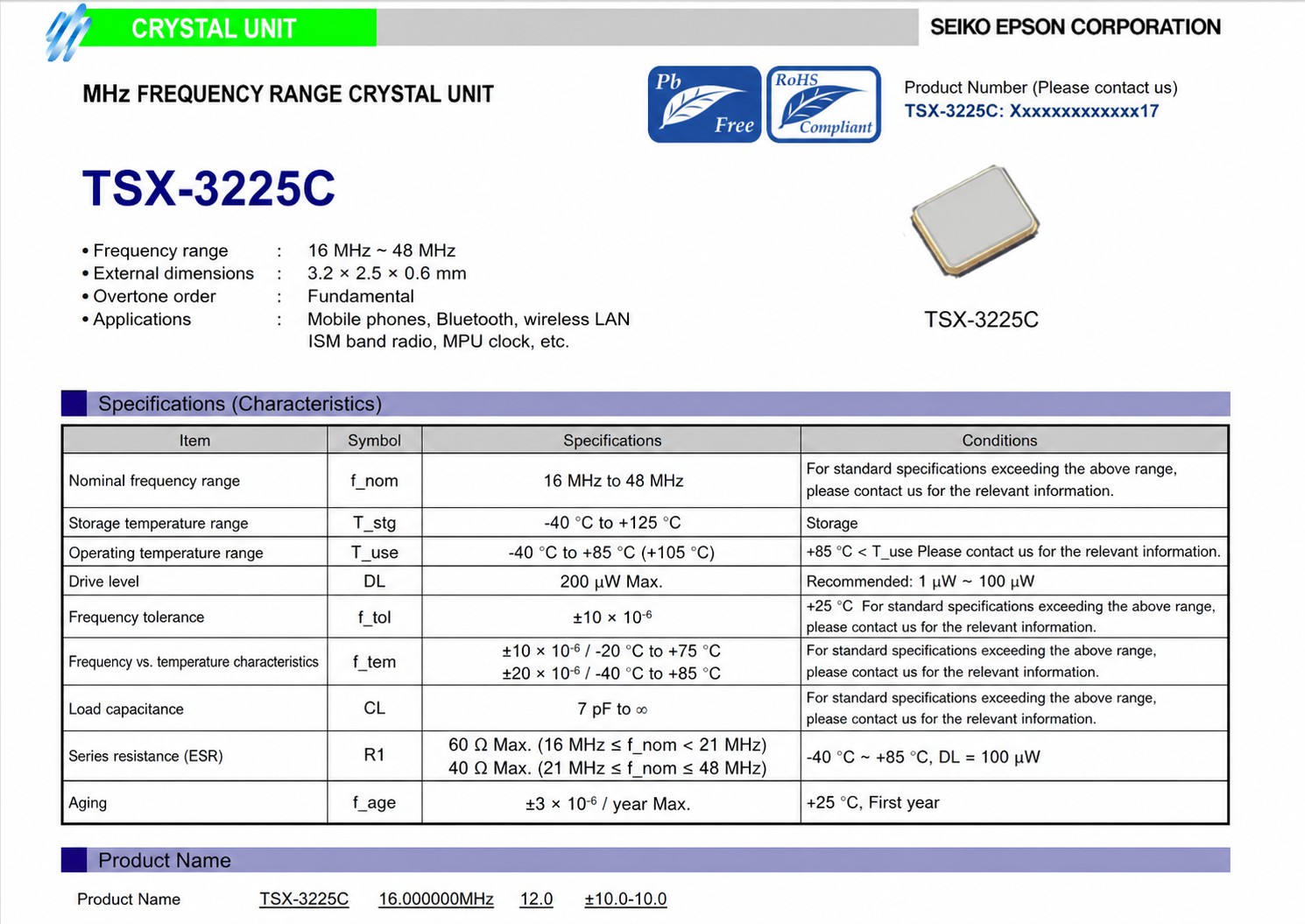

Figure 1: Epson TSX-3225C — pin-to-pin FA-238 replacement, tighter tolerance, lower power, AEC-Q200 qualified.

From FA-238 to TSX-3225C: More Than a Model Upgrade — A Core Technology Leap

The FA-238 series has earned widespread trust across industrial control, communication modules, and automotive electronics thanks to its stable frequency output and excellent temperature characteristics. However, with the rapid evolution of 5G communications, IoT, and vehicle intelligence, the market now demands tighter frequency precision, lower power consumption, smaller footprints, and enhanced long-term stability from MHz crystals.

The TSX-3225C series emerges precisely in response to these demands. It is not merely a technical successor to FA-238 — it represents Epson's latest achievements in quartz crystal technology, advanced packaging processes, and materials science.

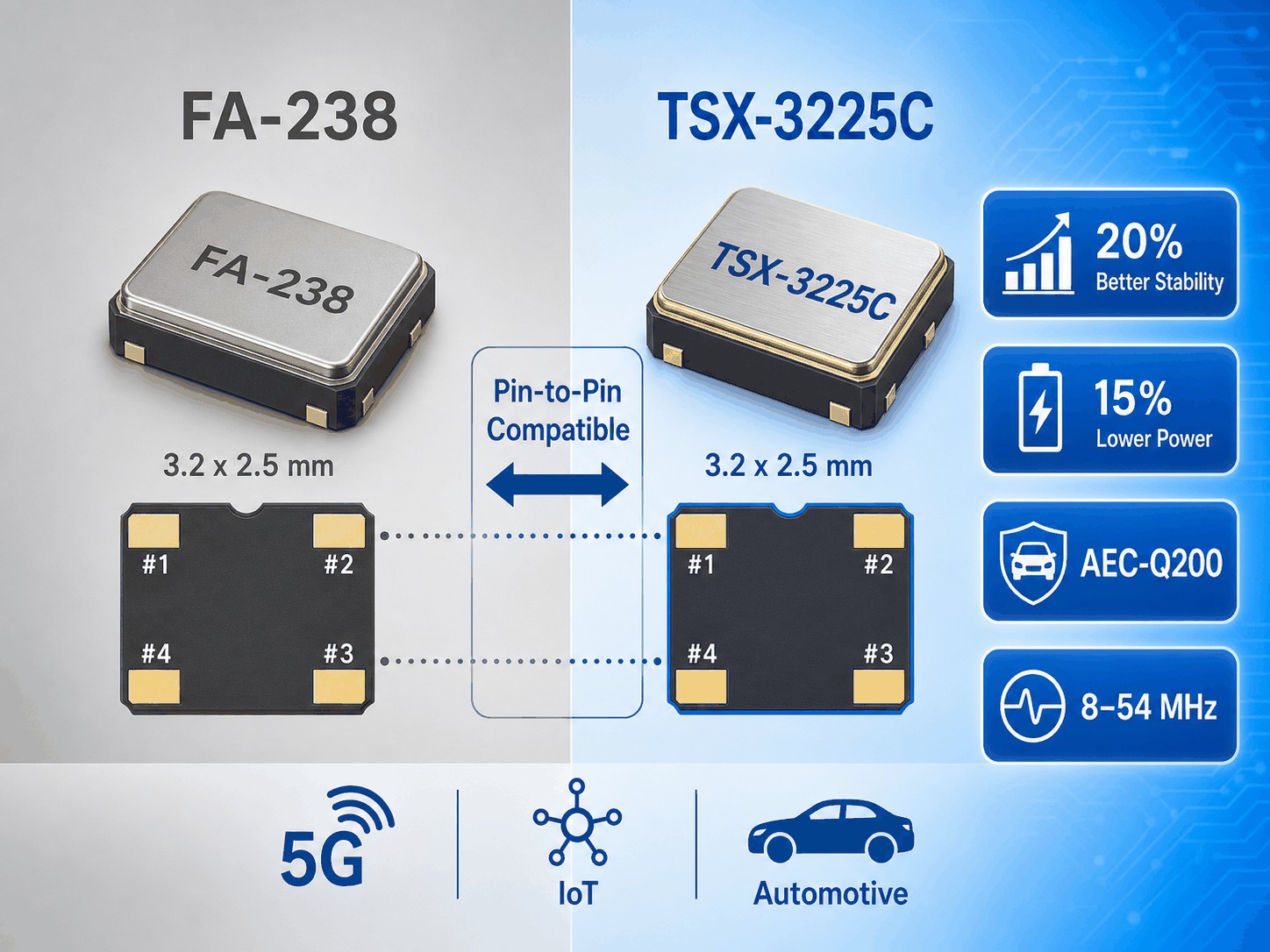

Figure 2: FA-238 vs TSX-3225C — pin-to-pin compatible footprint, ~20% better frequency stability, ~15% lower power, and AEC-Q200 automotive-grade reliability.

TSX-3225C Core Advantages at a Glance

1. Superior Frequency Stability
Leveraging Epson's new-generation AT-cut quartz crystal and optimized oscillator circuitry, the TSX-3225C delivers approximately 20% improvement in frequency stability over the FA-238 across the industrial temperature range of -40°C to +85°C. This makes it particularly well-suited for outdoor base stations, automotive terminals, and other applications subject to wide temperature swings.

2. Improved Phase Noise Performance
The new series features significantly optimized phase noise characteristics, providing a cleaner clock signal for high-frequency communication systems such as 5G small cells and millimeter-wave modules. This translates to lower system bit error rates (BER) and enhanced data transmission quality.

3. Miniaturization with Lower Power
The TSX-3225C retains the mainstream 3.2×2.5mm package footprint and is pin-to-pin compatible with FA-238, enabling straightforward drop-in replacement. Meanwhile, circuit design optimizations reduce operating current by approximately 15% compared to the previous generation, helping extend battery life in portable and IoT devices.

4. Enhanced Shock Resistance & Reliability
A reinforced package structure with an internal suspended-mount design significantly boosts shock and vibration resistance. The TSX-3225C meets AEC-Q200 automotive-grade reliability requirements, making it suitable for ADAS, in-vehicle infotainment systems, and other harsh-environment deployments.

5. Compelling Cost Advantage & Higher Value
Thanks to improved wafer-level packaging processes and economies of scale, the TSX-3225C series achieves superior performance at a more competitive unit cost. This directly reduces your BOM cost while the higher reliability translates to fewer field failures and lower total cost of ownership over the product lifecycle.

6. Stable & Shortened Lead Times
Through optimized global supply chain operations and enhanced localized inventory, the TSX-3225C series offers lead times significantly better than the industry average. Whether for prototype samples or volume orders, you benefit from faster, more predictable delivery — reducing project delay risk and keeping your production schedules on track.

7. Wide Frequency Coverage
The TSX-3225C provides frequency options from 8 MHz to 54 MHz with custom frequency points available upon request. This broad coverage addresses mainstream communication protocols and processor reference clock requirements, supporting diverse design needs from a single platform.

Application Scenarios: Where TSX-3225C Excels

Upgrade Guide: Seamless Migration from FA-238 to TSX-3225C

For designs currently using the FA-238 series, migrating to the TSX-3225C requires virtually no PCB layout changes — it is a true pin-to-pin compatible upgrade. We recommend prioritizing the upgrade in the following scenarios:

• Products that must operate across wider temperature ranges or in harsher environments
• Systems requiring higher clock precision and lower jitter
• Design iterations targeting improved power efficiency, overall cost, and supply chain resilience
• Products needing automotive-grade or higher industrial reliability compliance
• Projects with tight schedules that demand stable, fast-delivery critical components

Conclusion: The Heart of Your System Deserves an Upgrade

In an era defined by ubiquitous connectivity and signal integrity, a high-quality crystal oscillator is the heartbeat of system stability. The Epson TSX-3225C series answers evolving market challenges with technological evolution — delivering a more reliable, more precise timing solution while simultaneously offering an optimized cost structure and efficient supply assurance. It represents a triple enhancement in performance, value, and supply chain dependability for your products.

Choosing the TSX-3225C means choosing higher signal integrity, a more competitive cost position, and — critically — stable, timely production security. Explore the full MHz SMD crystal portfolio or browse our complete crystals category to find the ideal frequency control solution for your next design.
