In June 2025, Guizhou Province was hit by torrential rainstorms. Floodwaters washed away roads, engulfed homes, and left numerous towns and villages isolated. At this critical moment for rescue operations, drone fleets soared into the stormy skies. Acting like precise aerial messengers, they delivered life rings, medicine, and food steadily onto rooftops. Equipped with high-definition cameras and thermal imaging cameras, they pierced through the curtain of rain, transmitting the real-time location information of trapped individuals back to the command center.

They generated real-time 3D maps of the disaster area, guiding rescue forces—when land transportation was completely paralyzed, these 'lifelines from the sky' became rays of hope for saving lives.

This real-world operation vividly demonstrated the core value of modern drones in emergency response: efficiency, precision, and fearlessness in harsh conditions.

The core performance of drones is highly dependent on a series of sophisticated electronic components, which collectively form the drone's 'nerves,' 'brain,' and 'senses.' So how do drones achieve such complex and precise tasks? Below is a classification of key core electronic components and their functions:

I. Core Control & Processing Unit

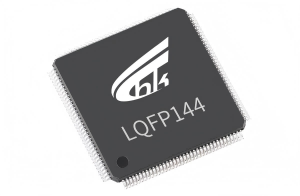

1. Main Control Processor (MCU/SoC)
* Function: The drone's 'brain,' running flight control algorithms, processing sensor data, and executing navigation commands.
* Typical Components: ARM Cortex-M series microcontrollers (e.g., F407 series).

2. Crystal Oscillator
* Function: Provides stable and reliable clock signals essential for critical tasks like flight control, navigation, and data transmission. High precision, high stability, high reliability, and low power consumption are fundamental requirements for low-altitude economy devices.
* Recommended Temperature Compensated Crystal Oscillator (TCXO) Products:
* General Purpose Series YSO510TP: Stability up to ±2.5 ppm within -40°C to +85°C temperature range, available in multiple sizes.
* Pre-programmed Series YSO511PJ: Supports custom frequencies freely within the 10MHz to 250MHz range.
* High-Precision Series YSO512ET: Offers ultra-high precision with temperature stability up to ±0.1 ppm.
* Miniaturized Low-Power TCXO TG2016SMN: Features exceptional environmental resilience and anti-interference capability, covering a frequency range of 10MHz to 55MHz.

II. Perception & Positioning System

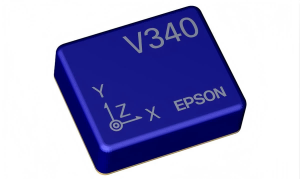

1. Inertial Measurement Unit (IMU):
* Function: Perceives the drone's real-time attitude (pitch, roll, yaw), acceleration, and angular velocity.
* Core Components:
* Triaxial Gyroscope (detects angular velocity).
* Triaxial Accelerometer (detects linear acceleration).

2. Magnetometer (Electronic Compass):
* Function: Senses the Earth's magnetic field direction to provide heading (yaw) reference.
* Component: MEMS magnetic sensor.

3. Barometer:
* Function: Estimates altitude based on atmospheric pressure changes (especially when GPS is unavailable).
* Component: High-precision barometric pressure sensor.

4. Global Navigation Satellite System (GNSS) Module:
* Function: Provides absolute position (latitude, longitude), altitude, and velocity information.
* Component: Multi-mode (GPS/GLONASS/BeiDou/Galileo) receiver chip.

III. Power & Energy System

1. Electronic Speed Controller (ESC):
* Function: Receives flight control commands and precisely controls the speed and direction of brushless motors.
* Core Chips:
* MCU: Parses PWM signals.
* MOSFETs: High-power field-effect transistors for driving motor current.

2. Brushless DC Motor (BLDC Motor)
* Core Electronic Component: Built-in Hall sensors (e.g., SL353LT, SM353LT) to detect rotor position and enable electronic commutation.

3. Battery Management System (BMS)
* Function: Monitors the voltage, current, and temperature of lithium battery packs (typically LiPo/Li-ion), preventing overcharging, over-discharging, and overheating.

IV. Communication & Data Transmission

1. Remote Control (RC) Receiver
* Function: Receives commands from the remote controller.
* Chip: RF receiver chip.

2. Telemetry Module
* Function: Bi-directional transmission of flight status data (position, battery level, sensor status) and commands.
* Technology: Often uses 433MHz, 915MHz, 2.4GHz, or 4G/5G modules.

3. Wi-Fi/Bluetooth Module
* Function: Short-range control, firmware updates, data transmission (e.g., connection to mobile apps).
* Chip: Integrated SoC (e.g., Nordic nRF52/53 series).

V. Auxiliary & Support Circuits

1. Power Management IC (PMIC):
* Function: Provides stable voltages (e.g., 3.3V, 5V, 12V) to various subsystems (flight controller, video transmission, sensors).
* Components: DC-DC buck/boost converters (e.g., TI TPS series), LDO linear regulators.

2. Memory (Flash/TF Card)
* Function: Stores flight logs, mission data, and captured images/video (e.g., eMMC, MicroSD card controllers).

3. LED Indicator Driver Circuit
* Function: Used for status indication (e.g., navigation lights, fault alarms).
