The rapid expansion of LEO satellite constellations, satellite internet services, and high-throughput communication systems is driving an unprecedented demand for precision time-frequency synchronization. Across satellite ground stations, GNSS disciplined timing platforms, and microwave transmission links, every subsystem — from baseband processors to RF transceivers — relies on a stable reference clock to perform frequency calibration and synchronization. As link budgets tighten and modulation orders increase, the tolerance for clock drift and phase noise has narrowed to parts-per-billion territory. YXC addresses this challenge with two purpose-built Oven Controlled Crystal Oscillator (OCXO) platforms: the YOV2020DP for rapid-deployment scenarios, and the YOV5050DP for high-precision time-frequency reference cores.

1. Why Satellite Communications Demand High-Stability Clock Sources

Satellite communication systems are fundamentally intolerant of frequency error. The baseband processing chain, RF up-/down-conversion, phase-locked loops (PLLs), frequency synthesizers, and GNSS timing modules all require a unified, low-drift reference clock. Unlike terrestrial communication equipment operating in climate-controlled environments, satellite ground infrastructure faces three compounding degradation mechanisms: cumulative frequency offset accumulation over long-distance links, ambient temperature swings at outdoor installations, and long-term oscillator aging over years of continuous operation.

For time-frequency reference modules in particular, the reference clock's performance directly governs system synchronization accuracy, carrier stability, and long-term operational reliability. When the clock source drifts or exhibits elevated phase noise, the consequences cascade — increased link BER, PLL unlock events, degraded modulation accuracy, and ultimately compromised communication quality across the entire satellite link. Engineering teams evaluating OCXO solutions for satellite applications therefore prioritize five key metrics:

• Temperature-frequency stability — resistance to frequency deviation across the full operating temperature range
• Phase noise — close-in and broadband spectral purity, directly impacting EVM and modulation fidelity
• Aging rate — long-term frequency drift per day/year, critical for unattended remote installations
• Short-term stability (Allan deviation) — holdover performance during GNSS signal outages
• Wide-temperature operability — consistent performance from cold-start to full thermal equilibrium

2. YOV2020DP — Balancing Rapid Delivery with System Stability

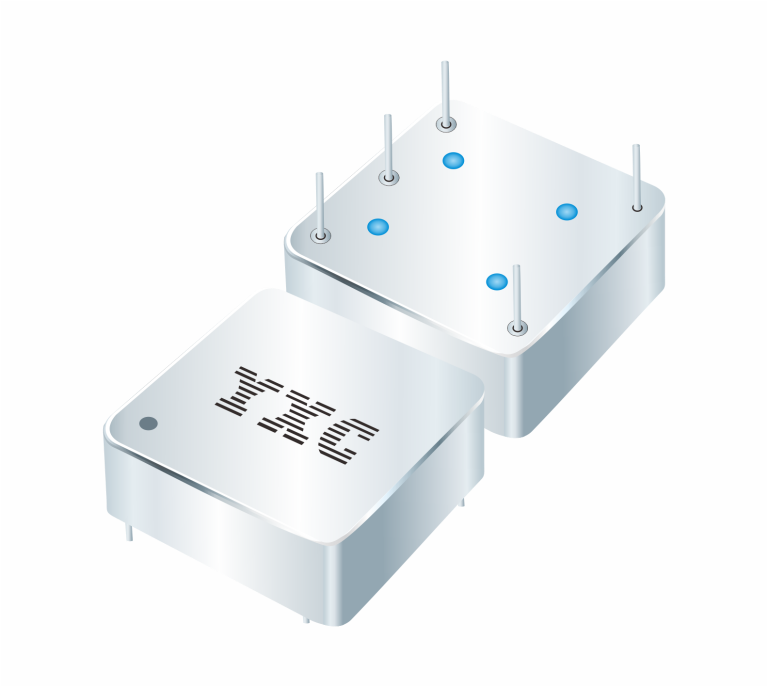

Figure 1: YXC YOV2020DP OCXO series — engineered for fast-turn satellite communication timing deployments.

For satellite communication equipment manufacturers requiring a stable reference clock with minimal lead time, YXC YOV2020DP OCXO series delivers a compelling balance of performance, availability, and cost-effectiveness. The series supports two rapid-delivery frequency options — 10 MHz and 100 MHz — covering the most widely used reference frequencies in satellite ground equipment and GNSS platforms. Dual supply voltage options (5 V and 12 V) with selectable square-wave or sine-wave output provide flexible integration across diverse communication system architectures.

On the performance front, the YOV2020DP achieves ±3 ppb temperature-frequency stability and a daily aging rate controlled within ±0.5 ppb, effectively suppressing frequency drift caused by environmental temperature fluctuations and long-term operational aging. At 1 kHz offset, phase noise reaches -160 dBc/Hz, significantly reducing PLL jitter, improving loop stability, and enhancing high-frequency signal demodulation capability. For communication equipment OEMs, the YOV2020DP not only provides high stability but also offers strong delivery advantages — helping customers shorten project integration cycles and accelerate time-to-volume-production.

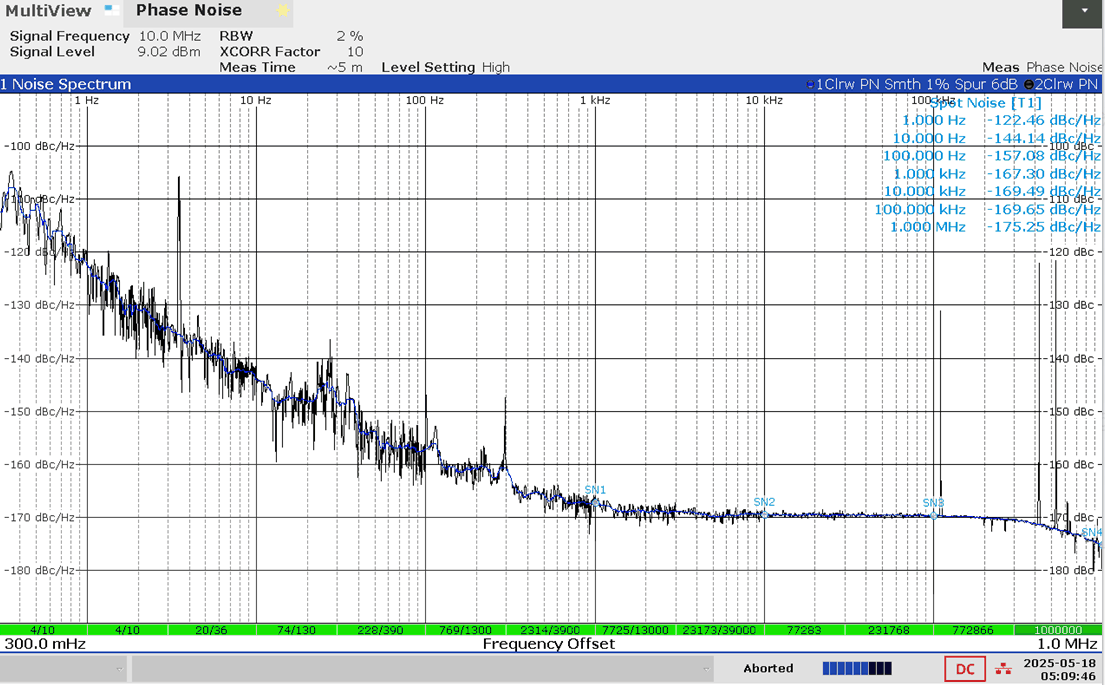

Figure 2: YOV2020DP key performance characteristics — phase noise and frequency stability optimized for satellite ground infrastructure.

3. YOV5050DP — High-Precision Time-Frequency Reference Core

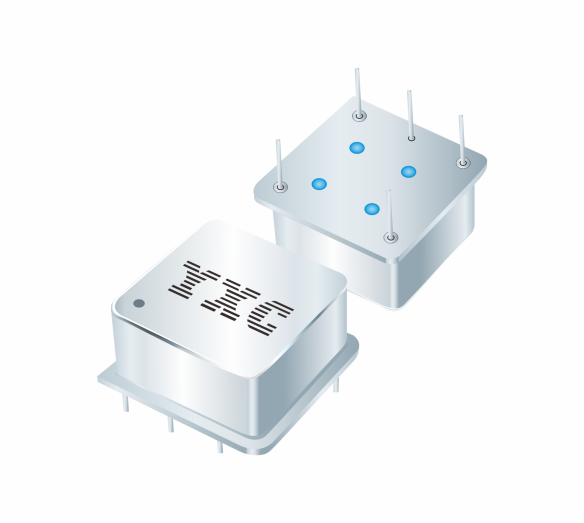

Figure 3: YXC YOV5050DP OCXO — the high-precision core for satellite ground stations and GNSS timing platforms.

Beyond the delivery-focused YOV2020DP, YXC offers the YOV5050DP OCXO platform for high-end time-frequency systems where precision is paramount. The YOV5050DP targets satellite ground stations, GNSS disciplined timing platforms, high-precision frequency reference modules, and test & measurement equipment — applications where sub-ppb stability defines system capability.

Taking the 10 MHz variant as reference, the YOV5050DP achieves ±0.5 ppb temperature-frequency stability, with select high-grade configurations supporting control down to ±0.01 ppb — an order of magnitude tighter than the YOV2020DP. On the phase noise front, the YOV5050DP reaches as low as -150 dBc/Hz at 10 Hz offset, delivering exceptionally clean close-in phase noise performance. This near-carrier spectral purity translates to a cleaner local oscillator signal, directly reducing high-frequency link jitter, improving high-speed data transmission consistency, and enhancing long-term system synchronization stability — the exact attributes that GNSS holdover and coherent communication architectures demand.

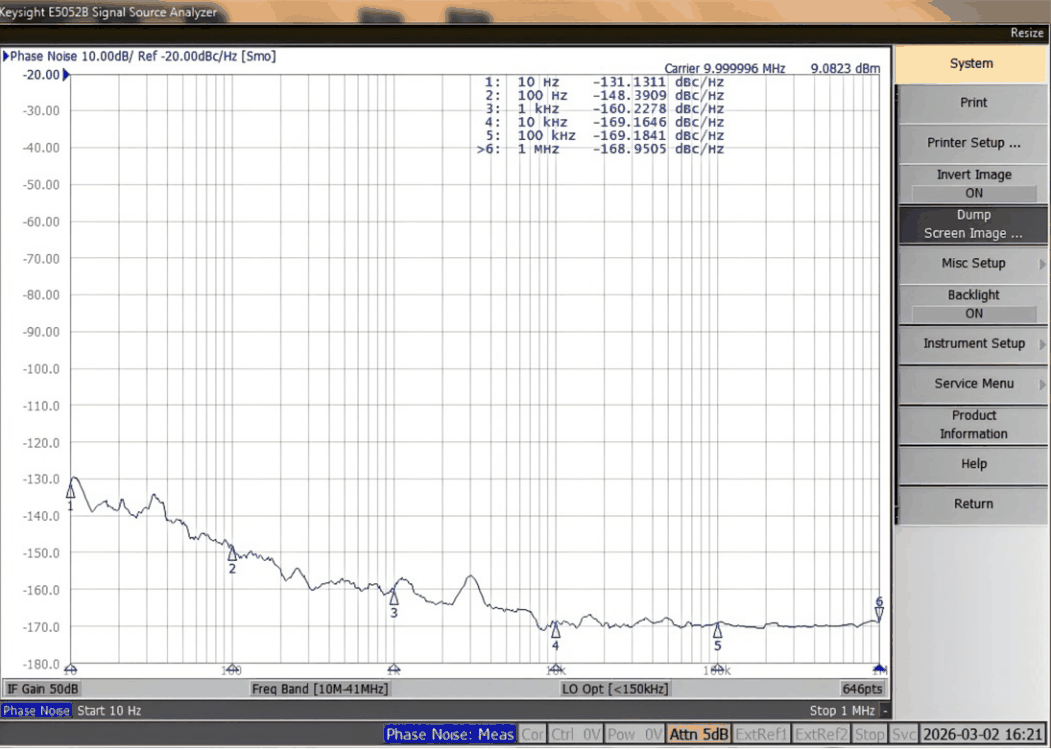

Figure 4: YOV5050DP phase noise characteristics — ultra-low close-in phase noise for GNSS holdover and coherent communications.

4. YOV2020DP vs. YOV5050DP — Selection Summary

5. Conclusion: OCXO as the Cornerstone of Satellite Time-Frequency Systems

For satellite communication systems, an OCXO is far more than a 'high-precision clock component' — it is the foundational element upon which the entire time-frequency reference architecture depends for long-term stability. Through stable frequency output, low phase noise, and proven long-term reliability, the YXC OCXO portfolio — spanning the YOV2020DP for rapid deployment and the YOV5050DP for ultimate precision — provides satellite communications, GNSS timing, and high-precision synchronization systems with the stable core clock support they require to operate at full performance. For detailed datasheets, custom frequency requests, or engineering sampling, the YXC technical team stands ready to support your project from evaluation through production.
