For designers of photovoltaic inverters, energy storage converters and UPS systems, the IGBT is where efficiency is won or lost — every millivolt of saturation voltage and every millijoule of switching energy ends up as heat in the enclosure. YQM ELECTRONICS, as an authorized distributor of NCE power semiconductors, now brings you a device family engineered for exactly this arithmetic. The newly released eighth-generation Gen.8 IGBT series achieves an optimal trade-off between saturation voltage VCE(sat) and switching losses (Eon, Eoff): an ultra-high-density micro-trench gate architecture significantly raises device structure density and cuts conduction loss, while drift-region and buffer-layer design innovations jointly optimize switching loss and turn-off stress — balancing system efficiency against application margin in real designs.

Figure 4: Inside the Gen.8 architecture — higher device structure density turns design innovation into lower conduction loss.

The flagship representative of the family is the NCE140GD120VTP4. Rated 1200V with a 140A current rating at 100°C, it comes in a TO-247Plus-4L package and targets green-energy and high-efficiency applications: photovoltaic inverters, energy storage, UPS and EV charging infrastructure.

How good is it in practice? The table below compares the device against the industry's best competitor in the same voltage/current class, measured under identical conditions on the same test equipment:

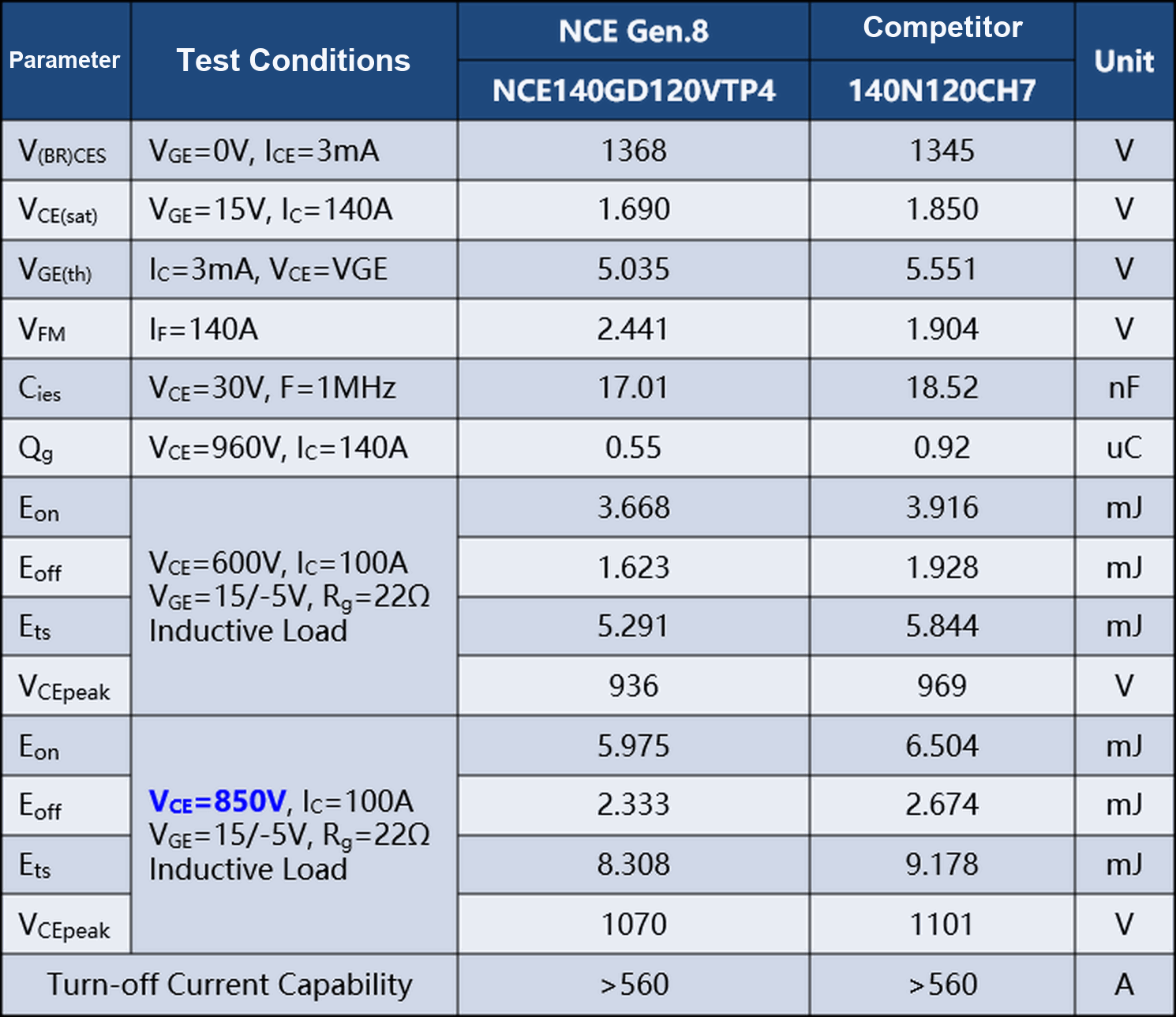

Figure 1: Measured parameter comparison — NCE140GD120VTP4 vs the best-in-class competitor in the same 1200V/140A class, identical conditions and test equipment.

From the measured data, the NCE140GD120VTP4 delivers three headline results:

• Lower conduction loss: saturation voltage VCE(sat) is approximately 8.6% lower than the competitor's — directly reducing long-term system operating power.
• Faster switching with lower loss: smaller input capacitance Cies and gate charge Qg (only 54% of the competitor's), with switching loss Ets about 10% lower — raising the practical ceiling for system switching frequency.
• Higher safety margin: lower turn-off voltage spike VCEpeak under high DC-bus voltage conditions, leaving more headroom for system design.

Beyond the datasheet numbers, the device is mass-produced on a 12-inch wafer process. The tighter process stability this brings guarantees parameter consistency across lots — a decisive factor for device paralleling and high-volume applications.

Product Advantages at a Glance

• V(BR)CES above rated voltage across the full -40°C to 175°C temperature range
• 100% ICpuls turn-off testing
• Passes the more stringent HV-H3TRB qualification
• Lower conduction loss with excellent switching-loss behavior
• Extremely low turn-off VCEpeak spike

Application Areas

• Photovoltaic inverters
• Energy storage
• UPS

Figure 5: PV inverters, energy storage and UPS — three application pillars demanding both efficiency and safety margin from the 1200V/140A class.

The Gen.8 roadmap does not stop at one part number. NCE will roll out further models across six voltage platforms — 650V, 750V, 1000V, 1200V, 1400V and 1700V — with multiple sub-series at the same current/voltage rating to serve differentiated application needs. One example: the S series (part number NCE140GS120VTP4), sharing the current/voltage class of the NCE140GD120VTP4, is tuned for energy storage and other applications demanding higher diode surge capability — further strengthening the surge withstand of the freewheeling diode.

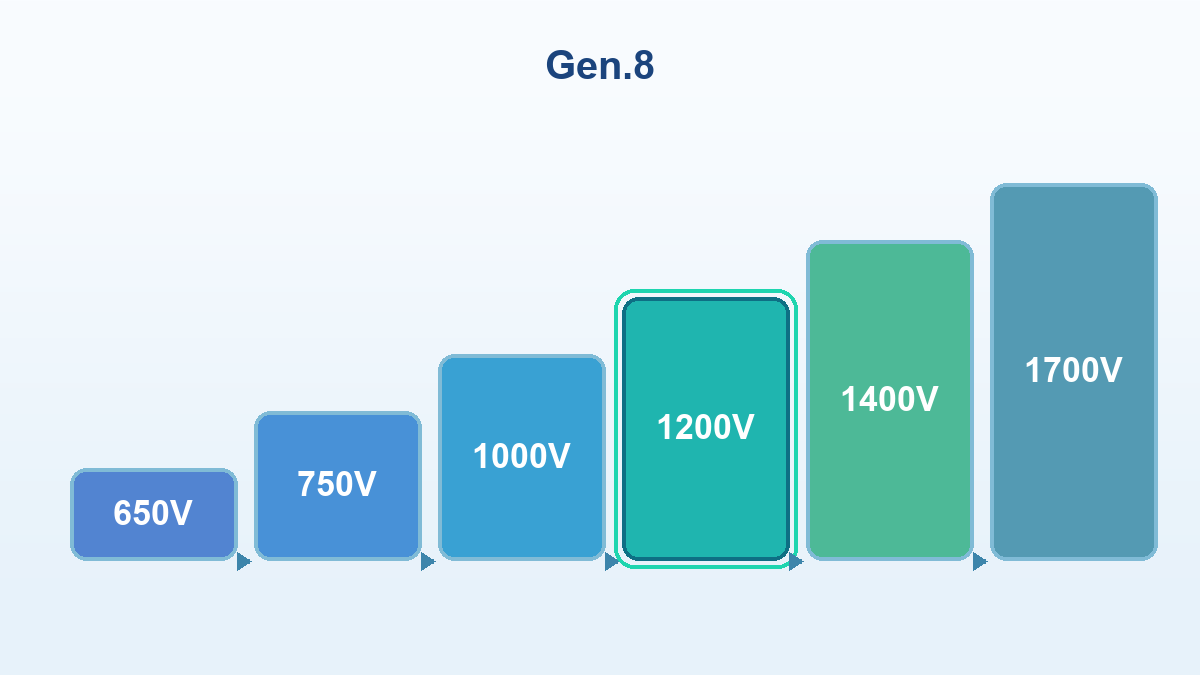

Figure 6: The Gen.8 roadmap spans six voltage platforms — one architecture, multiple sub-series for differentiated applications.

This launch is more than a parameter upgrade of a single device — it marks the entry of NCE Gen.8 IGBT technology into mature mass production, with performance that directly benchmarks, or exceeds, the best international competitors.

Part Number Naming Convention

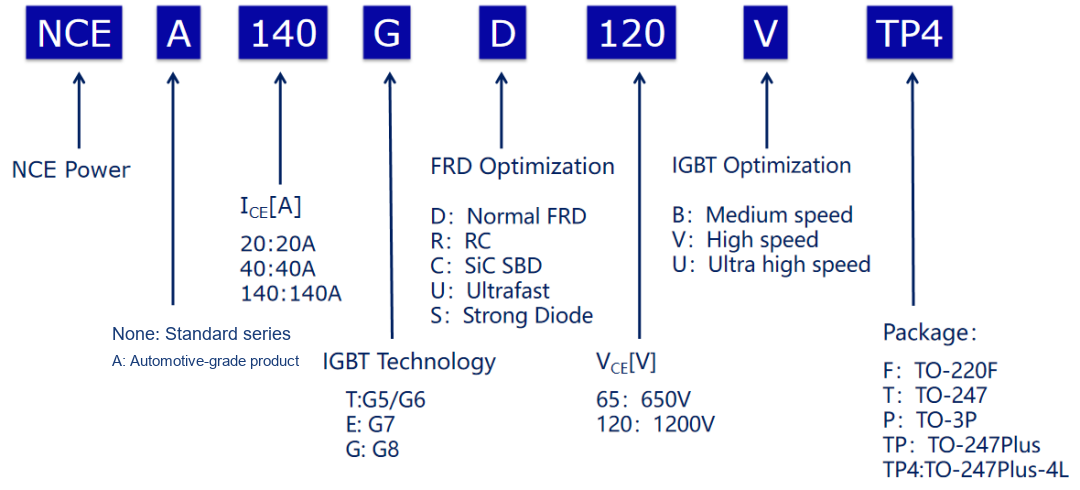

Figure 3: NCE part-number decoder — how NCE140GD120VTP4 breaks down into brand, current rating, series generation, voltage class, package and options.

Conclusion: A Benchmark-Grade 1200V IGBT for High-Efficiency Power Systems

The Gen.8 series attacks the two cost drivers that dominate power-stage design — conduction and switching — simultaneously. With VCE(sat) roughly 8.6% lower, gate charge at just 54% of the competition, switching loss about 10% lower and a calmer turn-off voltage spike, the NCE140GD120VTP4 raises the efficiency ceiling of photovoltaic, storage and UPS designs while preserving the safety margin engineers rely on. Twelve-inch-wafer production underpins the lot-to-lot consistency that parallel operation and volume programs demand.
