With the large-scale deployment of 5G base stations and continuous upgrading of network performance, high speed, low latency, and wide connectivity have become the core demands of base station communication. High-precision synchronization is the fundamental prerequisite for achieving all of this. The accuracy and stability of the clock reference directly determine the reliability of signal synchronization, data transmission, and network collaboration.

Figure 1: 5G Base Station Communication Equipment

I. Core Pain Points of Base Station Communication Timing: Temperature Drift and Synchronization Accuracy Challenges

Base station communication equipment operates for long periods in high-temperature outdoor environments, and ordinary crystals are susceptible to frequency drift caused by temperature changes, which in turn leads to a series of critical problems:

• Synchronization Failure: Temperature drift can easily cause base station frame desynchronization and adjacent channel interference, directly undermining the consistency of multi-base station collaborative work, failing to fully leverage core performance advantages such as CoMP and carrier aggregation.
• Signal Degradation: Ordinary crystals have high phase noise and obvious frequency offset, which will significantly increase the system bit error rate, causing voice卡顿, data packet loss, and even communication link interruption.
• Closed-loop Control Loss: Ordinary crystals lack voltage control adjustment characteristics, and clock deviation cannot be dynamically corrected and compensated. The drift continues to accumulate and cannot adapt to the base station closed-loop synchronization control system.

Facing the above harsh working conditions, base station communication urgently needs clock devices with high stability across the entire temperature range, low phase noise, and voltage control adjustment characteristics. The YXC temperature-compensated crystal oscillator is precisely the ideal solution to meet this core demand.

II. Preferred Base Station Synchronization Clock: YXC Temperature-Compensated Crystal Oscillator Selection Solution

High-Precision, High-Stability TCXO: YSO510TP Series

Figure 2: YSO510TP Temperature-Compensated Crystal Oscillator

YSO510TP

With excellent frequency stability, YSO510TP effectively solves synchronization problems caused by temperature drift, perfectly adapting to 5G base station collaborative transmission scenarios.

YSO510TP has a frequency-temperature difference as low as ±0.05PPM within the wide temperature range of -30~85°C, which can effectively control frequency deviation, improve the synchronization stability of base station communication systems, and ensure the continuity and consistency of network operation.

YSO510TP features low phase noise characteristics, which can effectively ensure signal purity, reduce link interference and bit error rate, and effectively improve system signal-to-noise ratio and clock synchronization accuracy.

Low Power, High Precision, High Stability VCTCXO: YSV350TP Series

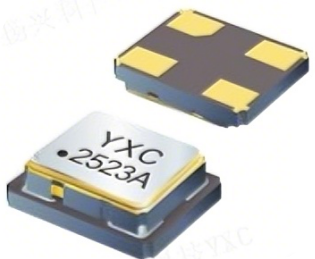

Figure 3: YSV350TP Voltage-Controlled Temperature-Compensated Crystal Oscillator

YSV350TP Series

YSV350TP is a high-performance voltage-controlled temperature-compensated crystal oscillator launched by YXC. It features excellent low power consumption characteristics, with a minimum operating current of only 6mA, which can significantly reduce the power consumption of base station communication equipment and extend battery life.

The YSV350TP series is equipped with voltage-controlled temperature compensation (VC-TC) technology, which can adjust and compensate the oscillation frequency in real-time as the ambient temperature fluctuates. It can still output reliable and stable clock signals in complex and variable temperature scenarios of communication base stations outdoors.

III. YXC Temperature-Compensated Crystal Oscillator Matches Base Station Communication System Requirements with Key Parameters

Focusing on the core indicators of base station communication systems, YXC temperature-compensated crystal oscillators provide clear performance support:

The stable operation of base station communication systems cannot be separated from reliable clock source support. YXC temperature-compensated crystal oscillators have excellent characteristics such as high precision, low phase noise, and high reliability. They can provide stable frequency references for base station equipment and ensure efficient and stable operation of equipment in complex environments.
