Across the expanding landscape of industrial IoT nodes, automotive RF subsystems, and security smart-home devices, through-hole PCB assembly continues to serve as the backbone for countless field-proven products. When upgrading legacy designs or sustaining long-lifecycle equipment, engineering teams face a persistent challenge: sourcing DIP-packaged frequency control components that deliver both modern performance and drop-in compatibility. YXC addresses this gap with a comprehensive portfolio of DIP through-hole Surface Acoustic Wave (SAW) devices — spanning resonators and filters across TO39, F11, F12, and D11 packages — purpose-built for seamless integration into through-hole PCB workflows.

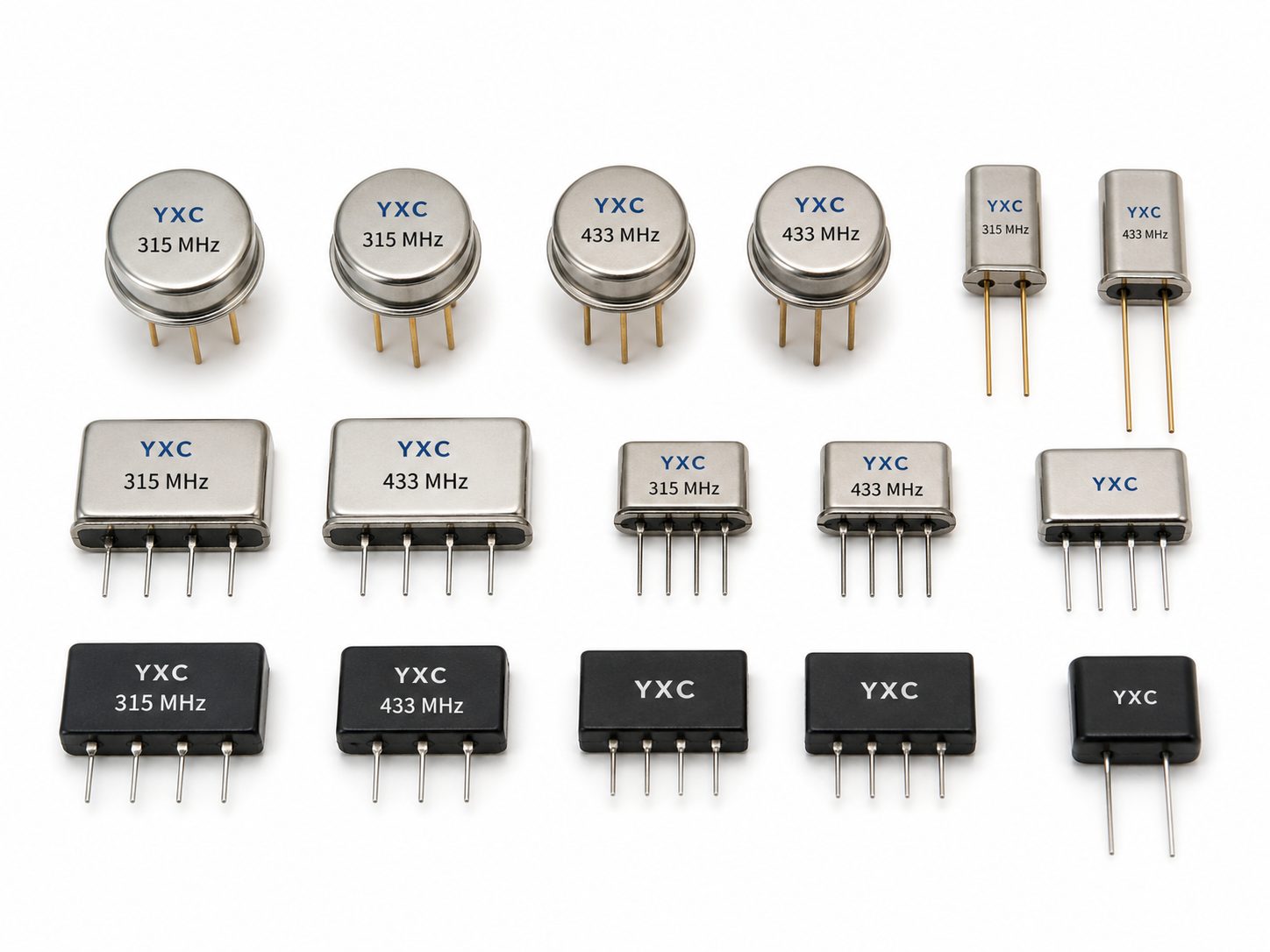

Figure 1: YXC DIP SAW device family — SAW resonators and filters in TO39, F11, F12, and D11 through-hole packages for ISM-band RF applications.

1. SAW Resonators vs. SAW Filters — Understanding the Core Functional Divide

Before diving into individual device selection, it is essential to distinguish the two fundamental roles SAW components play in an RF signal chain. Although both leverage acoustic wave propagation on a piezoelectric substrate, their circuit functions differ fundamentally — and selecting the wrong type can cripple system performance.

SAW Resonators are frequency-generating elements. They stabilize and maintain the local oscillator (LO) frequency in RF transmitters and receivers, serving as the precision heartbeat of the circuit. Their defining performance characteristics are oscillation stability, low insertion loss, and high loaded Q factor — enabling clean, drift-resistant carrier generation across ISM bands (315 MHz, 433.92 MHz, 868 MHz, 915 MHz). In practical terms, when your design needs a reliable frequency source for a wireless remote, a telemetry transmitter, or an RFID interrogator, a SAW resonator is the correct choice.

SAW Filters are frequency-selecting elements. Positioned in the receiver front-end or transmitter output stage, they pass the desired frequency band while attenuating out-of-band interferers, harmonics, and noise. Their critical metrics are passband bandwidth, ripple flatness, and stopband rejection depth — parameters that directly determine receiver selectivity and adjacent-channel immunity. If your design suffers from co-location interference, spurious emissions, or poor receiver sensitivity in a crowded spectrum, a SAW filter is the remedy.

2. YXC DIP SAW Device Portfolio — Detailed Model Reference

2.1 SAW Resonator Series — Precision Frequency Sources

YQMTO39R — DIP-TO39 Metal Can Package. Built around a robust cylindrical hermetic metal housing, the YQMTO39R targets common ISM frequency bands with industry-standard frequency tolerance and insertion loss specifications. The TO39 all-metal welded-seam construction provides exceptional resistance to mechanical vibration, electromagnetic interference (EMI), and humidity ingress — making it the go-to resonator for automotive under-hood electronics, outdoor industrial telemetry units, and any deployment where environmental resilience is non-negotiable.

YQDF11R — DIP-F11 Flat Metal Package. Covering a broad ISM frequency range with conventional frequency tolerance and insertion loss ratings, the YQDF11R adopts a low-profile flat metal enclosure with standard pin spacing. Its versatile form factor suits general-purpose RF modules, wireless alarm sensors, garage door controllers, and consumer electronics where a balance of performance, board footprint, and cost is desired.

YQDD11R — DIP-D11 Compact Flat Package. Designed for space-constrained through-hole layouts, the YQDD11R employs a miniature three-pin flat package targeting mainstream ISM bands. With frequency tolerance and insertion loss meeting industry norms, its compact footprint simplifies PCB routing in small-form-factor devices such as key fobs, wireless sensors, and handheld remote controls — where every millimeter of board real estate counts.

2.2 SAW Filter Series — Precision Frequency Selection

YQDF11F — DIP-F11 SAW Filter. Operating across a wide frequency range in the F11 flat metal package, the YQDF11F delivers excellent passband bandwidth with low insertion loss and minimal in-band ripple. Its well-balanced filtering characteristics ensure stable performance in general-purpose receiver front-end applications — from wireless doorbells to remote keyless entry (RKE) receivers — where consistent selectivity across production volumes is paramount.

YQDF12F — DIP-F12 Narrowband SAW Filter. Tuned for specific frequency bands in the F12 package, the YQDF12F excels in narrowband filtering scenarios where steep skirt selectivity is required. Its bandwidth and insertion loss characteristics are optimized for dedicated receiver chains in professional two-way radios, GPS auxiliary frequency stabilization, and high-end RF modules demanding superior adjacent-channel rejection.

3. Package Types and Application Environment Matching

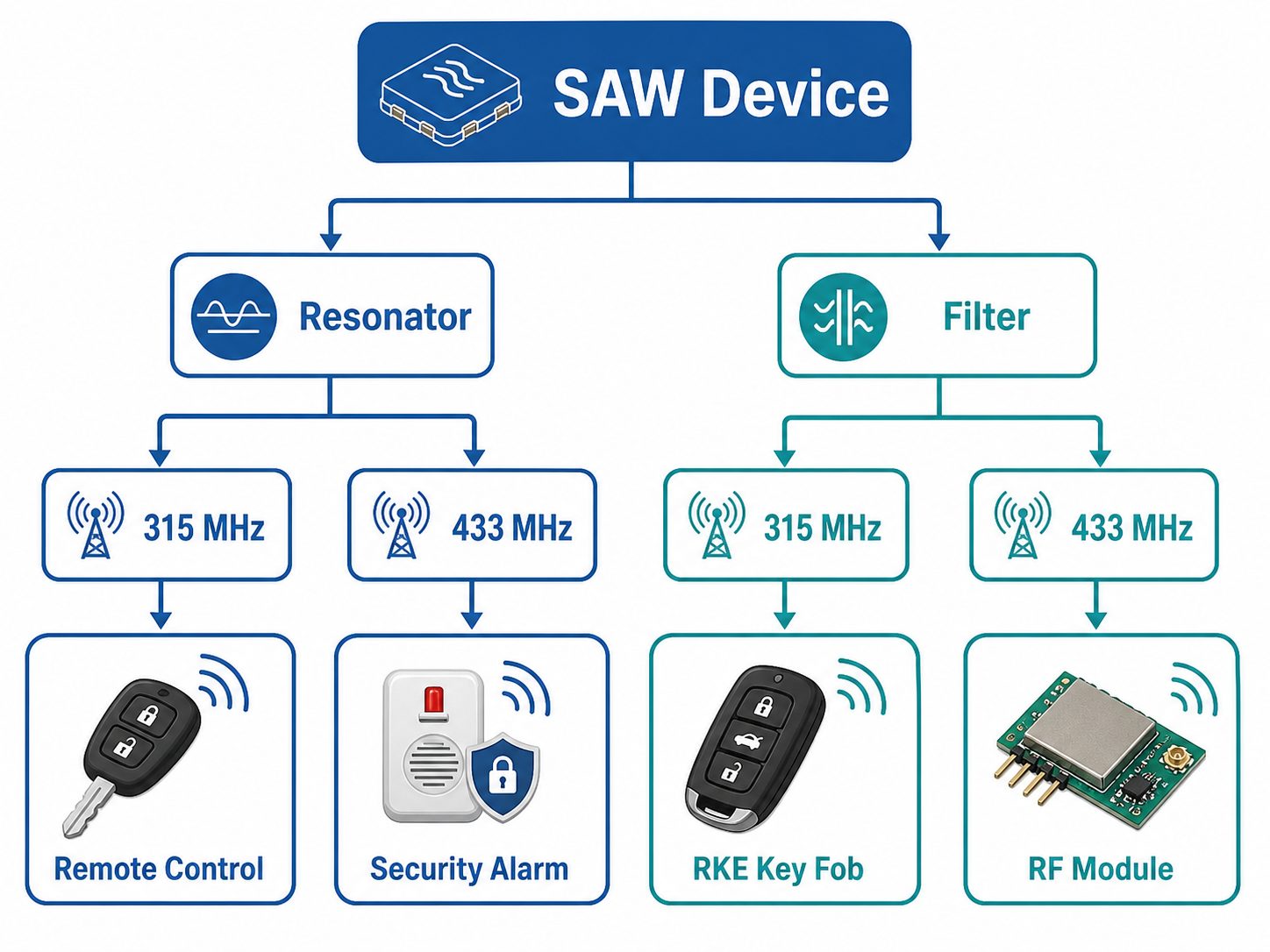

Figure 2: SAW device selection roadmap — choose a resonator or filter by function, then match the ISM-band frequency and target application.

4. Application-Driven Selection Roadmap

Industrial IoT & Smart Metering — For wireless meter reading terminals, industrial sensor nodes, and remote monitoring equipment operating across wide temperature ranges, SAW resonator series devices are the primary recommendation. Their wide-temperature stability and high reliability meet the long-term uninterrupted operation demands of industrial environments. Pair the YQMTO39R (TO39) for outdoor or mechanically stressed installations, or the YQDF11R (F11) for sheltered indoor collectors and concentrators.

Automotive Electronics & Vehicle-Grade RF — The full YXC DIP SAW portfolio supports automotive-grade reliability requirements, with the TO39 hermetic package (YQMTO39R) being the standout choice for under-hood and chassis-mounted RF modules. Its sealed metal construction resists aging, minimizes frequency drift, and withstands the extreme temperature cycling, humidity, and vibration profiles characteristic of automotive environments. For in-cabin applications such as TPMS receivers and keyless-go systems, F11 and D11 packaged devices offer excellent performance with smaller footprints.

Security & Smart Home — Mainstream ISM-band devices — doorbells, smart locks, PIR motion detectors, burglar alarm sensors — benefit from the cost-optimized YQDF11R resonator and YQDF11F filter. Their consistent RF performance ensures stable wireless links across residential-scale ranges, while the through-hole format simplifies production testing and rework in medium-volume manufacturing.

High-End RF, Two-Way Radios & GPS-Assisted Frequency Stabilization — For applications requiring superior spectral purity and minimal close-in phase noise, the YQDF12F narrowband filter combined with a YQMTO39R resonator provides a high-performance RF front-end building block. The narrowband filter's steep roll-off characteristics protect sensitive receiver chains from nearby interferers in congested RF environments.

5. Critical Selection Considerations

• 100% drop-in through-hole compatibility: All devices in this portfolio are DIP through-hole — no PCB redesign required. Directly compatible with conventional wave-soldering and hand-soldering processes, making them ideal for legacy product sustaining and cost-sensitive new designs that prefer through-hole assembly.
• Wide-temperature operation with hermetic protection: Hermetically sealed metal packages prevent moisture, dust, and corrosive agent ingress, ensuring consistent performance across -40°C to +85°C operating environments — a critical advantage for outdoor and automotive deployments.
• Supply continuity for legacy replacement: As several mainstream through-hole SAW device lines face gradual discontinuation from other suppliers, the YXC DIP series offers matched parameters and stable long-term availability — an ideal drop-in replacement path for end-of-life (EOL) components.
• Customization support for non-standard requirements: Non-standard frequencies, tighter tolerance grades, or special parametric requests can be accommodated through YXC's custom engineering channel — consult technical support for feasibility assessment and lead times.

6. Selection Summary — Decision Matrix

In summary, when your design needs a frequency source, select a SAW resonator and match the package to your mechanical constraints; when your design needs signal filtering, select a SAW filter and match the bandwidth to your receiver requirements. Prioritize hermetic metal packages for high-reliability applications, and flat-profile packages where space is at a premium. With the complete YXC DIP through-hole SAW portfolio, engineering teams can address frequency control and signal conditioning needs across industrial, automotive, security, and consumer electronics sectors — all from a single, supply-assured vendor.
